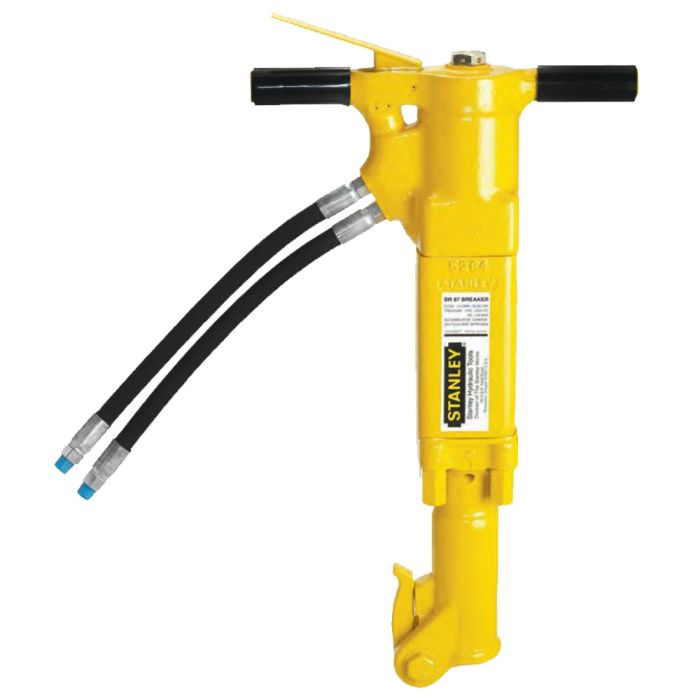

Stanley BR87320 Hydraulic Underwater Heavy Duty Breaker - 1-1/8 Shank (Includes Hose Whips & Couplers)

Application:

• Utility Construction
• Street Maintenance
• Repair of Water and Gas mains
• General Contracting jobs

Features:

• Feathering ON/OFF valve to control output energy of the underwater tool through the full range from 0 to 1,800 bpm making start-up and initial underwater tool placement easy by the commercial diver
• Diaphragm-Type Accumulator design provides for ease of maintenance and extended service life of the underwater tool.
• Handles system back pressures up to 250 psi (17 bar)
• Accepts standard 1-1/8 in. chuck sizes

Specifications:

• Capacity: 1-1/8 in. x 6 in. Hex
• Weight: 83 lbs.
• Length: 29 in.
• Width (at handles): 16 in.
• Pressure: 1500 - 2000 psi
• Flow Range: 7 - 9 gpm
• Optimum Flow: 8 gpm
• Porting: 8 SAE O-Ring
• Connect Size and Type: 3/8 in. Male Pipe Hose End

Stanley Hydraulic Underwater Heavy Duty Breaker BR87 - P/N: BR87320 Includes:

• (2) 12 in. Pigtail Hose whips (All tools require 2) - P/N: 01652
• (1) Quick Disconnect Face Coupler Set 3/8 in. NPT - P/N: 03971
• User Manual

Note: Stanley suggest cleaning the sintered filter installed inside the valve cap assembly after every dive. To clean the filter, Stanley suggest soaking the filter in light oil after each use then blow the filter out with compressed air from the inside out while removed from the breaker. If the filter does not appear to be clean after this cleaning, replace the entire valve cap assembly.
