Stanley Hydraulic Underwater Hammer Drill - 2 Inch Chuck (Includes Hose Whips - QD Couplers sold separately)

Name: Stanley Hydraulic Underwater Hammer Drill - 2 Inch Chuck (Includes Hose Whips - QD Couplers sold separately)
Brand: Stanley
SKU: HD45310
Price: 4448.70 USD
Availability: InStock

SHIP NOW

SKU

HD45310

List Price: $4,943.00

was $4,819.43

List Price: $4,943.00

Sale Price $4,448.70

HAMMER DRILLS OC; U/W; NO. 736 SKIL HEX; INCLUDES

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application: Drilling Concrete Masonry Asphalt Features: 7-9 gpm (26-34 lpm) operating flow at the commercial diver's end Adjustable Bit Rotation Speed (forward and reverse) up to 300 rpm, making the underwater tool easy to start and control Feathering ON/OFF valve allow the commercial diver to control the amount of energy to the underwater tool, providing more control and ease of handling Specifications: Chuck capacity: Up to 2 in. diameter or 4 in. core, 736 Skil Hex Output: 0-300 rpm Input flow range: 7-9 gpm (26-34 lpm) at the commercial diver Input pressure: 1500-2000 psi (105-140 bar) Optimum flow: 8 gpm (30 lpm) Weight: 45 lbs .(20.4 kg) Length: 22.5 in. (57 cm) Width (at handles): 14 in. (35 cm) Motor: Internal Porting: 8 SAE O-Ring Connector: 3/8 in. male pipe hose end Stanley Hydraulic Underwater Hammer Drill HD45 - P/N: HD45310 Includes: (2) 12 in. Hose Whips (All Hydraulic Tools Require 2) - P/N: 01652 User Manual

Information

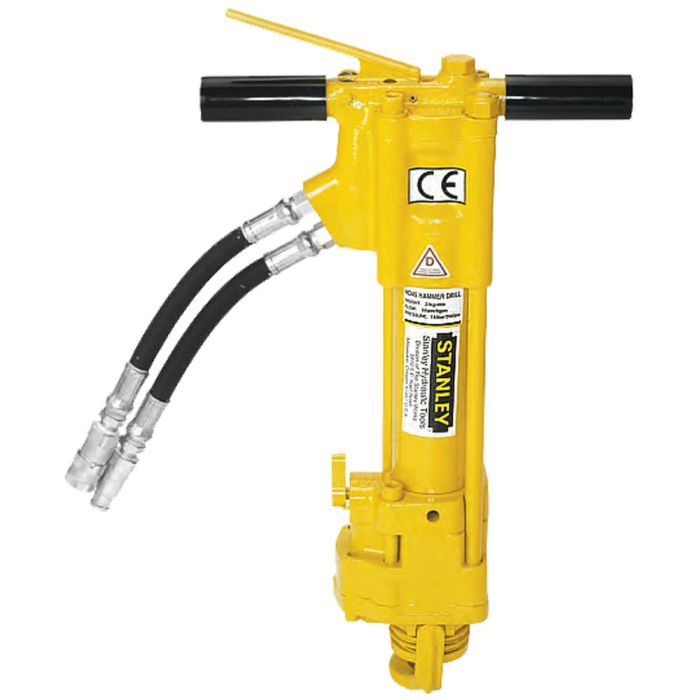

The Stanley Hydraulic Underwater Hammer Drill HD45 is a rotary, percussion tool used by commercial divers for underwater drilling in concrete, masonry, or asphalt using 736 Skil hex bits. The Stanley Hydraulic Underwater Hammer Drill HD45 is a heavy duty model designed for commercial divers to use in medium to heavy underwater applications. It's the ideal underwater tool for drilling gas and water utility holes and setting anchor bolts.

The Stanley Hydraulic Underwater Hammer Drill HD45 comes furnished with hose whips, quick disconnect couplers are sold separately.

Drills Holes from 3/4 in. (19 mm) to 2 in. (50 mm) in diameter and up to 29 in. (73.7 cm) deep as well as core drilling up to 4 in. (102 mm) in diameter.

Uses Standard Skil 736 type carbide tipped, fluted drill bits and requires no fluid to clear holes during underwater operation. Feathering On/Off Valve with Adjustable Bit Rotation Speed (forward and reverse) make the Stanley Hydraulic Underwater Hammer Drill HD45 easy to start and easy to control.

*Please reference the ATTACHMENTS tab for downloadable and printable files on this underwater tool.

Resources

ATTACHMENTS

Hydraulic Tool to Hydraulic Hose Attachment

(Size: 30.5 KB)

Stanley HD45 Hammer Drill Accessories

(Size: 529.9 KB)

Stanley HD45 Hammer Drill Blowapart and Key

(Size: 880.3 KB)

Stanley HD45 Hammer Drill User Manual 02-22 VER 22

(Size: 964.5 KB)

Stanley Tools Hammer Drill Spec Sheet

(Size: 179.3 KB)

FAQ's

Will my tool operate if I use a lower flow rate than what would be considered optimum for the tool to operate?

Yes, most tools have an optimal flow range, as long as the gallons per minute delivered to the tool is within this range the tool will work. However, please be award that the tool will run at a slower speed based on the flow rated delivered to the tool. Basically, the lower the gallons per minute the slower the tool will run.

Do any of the Stanley hydraulic tools ship full of hydraulic oil?

No, but the factory normally will leave a little fluid inside the tool to help lubricate the internal components during storage.
