Stanley BR45350 Hydraulic Underwater Light To Medium Duty Breaker - 1 Inch Shank (Includes Hose Whips & Couplers)

Name: Stanley BR45350 Hydraulic Underwater Light To Medium Duty Breaker - 1 Inch Shank (Includes Hose Whips & Couplers)
Brand: Stanley
SKU: BR45350
Price: 2799.00 USD
Availability: InStock

SKU

BR45350

was $3,181.00 Sale Price $2,799.00

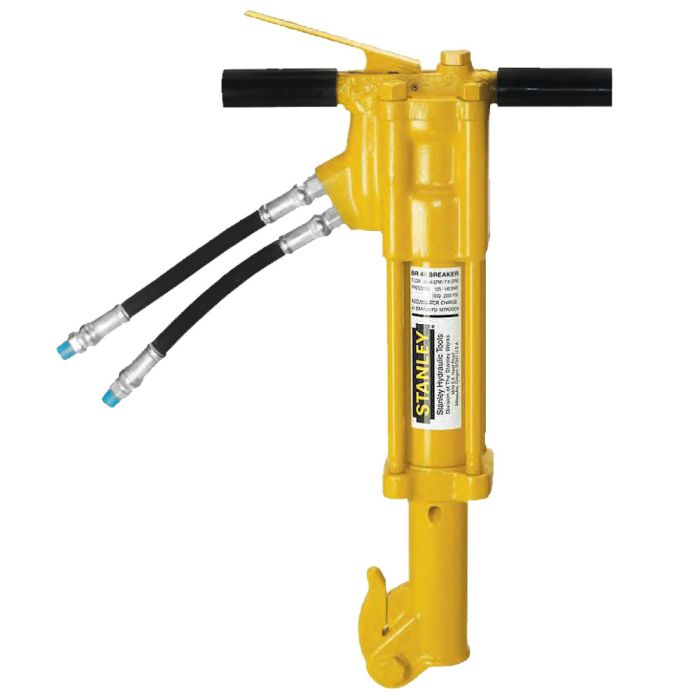

Designed for light- to medium-duty commercial diver operation, the Stanley Hydraulic Underwater Breaker BR45 excels at underwater rock and concrete demolition. This underwater tool includes hose whips. Quick disconnect couplers are sold separately.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application: Light to medium duty operation Curb/Sidewalk demolition Asphalt Cutting Popular for ground rod driving Features: Feathering ON/OFF valve to control output energy of the underwater tool through the full range from 0 to 1,800 making start-up and initial underwater tool placement easy Diaphragm-Type Accumulator design provides for ease of maintenance and extended service life of the underwater tool. Will handle system back pressures up to 250 psi (17 bar) Accepts standard 1 in. hex tool bits Specifications: Steel Capacity: 1 in. Hex x 4-1/4 in. Output : 1800 Blows Per Minute Input Flow Range: 7 - 9 gpm (26-34 lpm) at the diver Input Pressure: 1500 - 2000 psi (105 - 140 bar) Max. Back Pressure: 250 psi (17 bar) Optimum Flow: 8 gpm (30 lpm) Porting: 8 SAE O-Ring Connector: 3/8 in. Male Pipe Hose End Weight: 45/48 lbs (20/21 kg) Length: 23.5/25.5 in. (60/65 cm) Width (At Handles): 14 in. (35 cm) Stanley Hydraulic Underwater Breaker BR45 - P/N: BR45350 Includes: (2) 12 in. Pigtail Hose Whips (All tools require 2): P/N: 01652 Quick Disconnect Couplers - P/N: 03971 User Manual Note: Stanley suggest cleaning the sintered filter installed inside the valve cap assembly after every dive. To clean the filter, Stanley suggest soaking the filter in light oil after each use then blow the filter out with compressed air from the inside out while removed from the breaker. If the filter does not appear to be clean after this cleaning, replace the entire valve cap assembly. Applications The Stanley BR45 Hydraulic Underwater Light to Medium Duty Breaker is a rugged, powerful and lightweight breaker in the 40-55 lb. class used for light to medium concrete, rock, and coral breaking and removal. A 40 lb. (18 kg) breaker can be used to break 2-6 inch (5-15 cm) concrete. Features T-Handle with large on/off trigger for precise control. Stainless steel spool and fasteners. Trouble free diaphragm accumulator provides additional blow energy and reduces recoil. Feathering on/off valve allows easy initial tool bit placement. Uses standard 1 in. x 4 1⁄4 in. hex shank tool bits. Four tie rod design for durability. Operates in any position. Modular design for ease of service. Latch retainer. Specifications Color: Hi-visibility yellow Weight: 45 lbs. / 20 kg Length: 25 in. / 63.4 cm Width: 14 in. / 35 cm Flow Range: 7-9 gpm / 26-34 lpm Working Pressure: 1500-2000 psi / 105-140 bar Full Relief Setting: 2250 psi / 155 bar Capacity: 4-1.4 x 1 in. Hex / 25 x 108 mm Connectors/Couplers: 3/8 in. / 0.9 cm male pipe head hose end Handle Type: T-Handle

Information

The BR45 is the smallest breaker in the Stanley Hydraulic Tool lineup of underwater breakers. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1 in. hex chuck and latch retainer. Painted hi‑visibility yellow.

HYDRAULICS DELIVER A REAL BREAKTHROUGH

Nothing equals the impact force of hydraulic-powered breakers. With the best power-to-weight ratio, higher blow energy, and a lower noise level than pneumatic breakers, hydraulic percussion tools are simply the best choice. 70-lb. class breakers, for instance, deliver roughly the same impact energy as most 90-lb. pneumatic breakers. Internal components are continually bathed in hydraulic oil, providing long-lasting performance with minimal maintenance requirements. And because the hydraulic system is totally enclosed, there’s no tool exhaust or oil atomization often found with gas-powered or pneumatic alternatives.

Compared to other options, hydraulic breakers offer

Higher impact than comparably sized alternative platforms
No tool exhaust
Quieter operation than pneumatic tools allows for use in sensitive areas
Hydraulic oil provides continuous lubrication of internal parts for longer service life
Modular, re-buildable design platform improves serviceability
Handles system back pressures up to 250 psi / 17 bar
Feathering ON/OFF valve to control speed and make initial tool placement easy

A general rule of thumb when sizing the appropriate breaker for your application is to use 10 pounds for each inch of material. A 40-pound breaker, for instance, is a good fit for 4-inch concrete. A 90-lb. breaker would be used to break 9-inch concrete.

Resources

ATTACHMENTS

Stanley BR45 Hydraulic Breaker Safety, Operation & Maintenance 81140 User Manual 04-2024 Ver. 26

(Size: 982.3 KB)

Stanley Infrastructure CE Products Catalog 2016-2017

(Size: 3.8 MB)

Stanley Spec Sheet-45 Pound Class Breaker-BR45-English (9-10-2024)

(Size: 68.5 KB)

Stanley Underwater Tools Catalog 08.2021

(Size: 412.1 KB)

Stanley Underwater Tools Depth Guideline

(Size: 179.8 KB)

FAQ's

How do I clean the Valve Cap Assembly?

Stanley suggest soaking the filter in light oil after each use then blow the filter out with compressed air from the inside out while removed from the breaker. If the filter does not appear to be clean after this cleaning, replace the entire valve cap assembly.

Where is the Valve Cap Assembly located?

The Valve Cap Assembly looks like a large nut and is located on top of the Handle Assembly.

Will my tool operate if I use a lower flow rate than what would be considered optimum for the tool to operate?

Yes, most tools have an optimal flow range, as long as the gallons per minute delivered to the tool is within this range the tool will work. However, please be award that the tool will run at a slower speed based on the flow rated delivered to the tool. Basically, the lower the gallons per minute the slower the tool will run.

Do any of the Stanley hydraulic tools ship full of hydraulic oil?

No, but the factory normally will leave a little fluid inside the tool to help lubricate the internal components during storage.
