Amron One-Diver Air Control & Communication System

Name: Amron One-Diver Air Control & Communication System
Brand: Amron
SKU: 8111-01
Price: 6696.00 USD
Availability: InStock

SHIP NOW

SKU

8111-01

Please contact Amron directly for GSA pricing at 1-877-462-6700.

$6,696.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

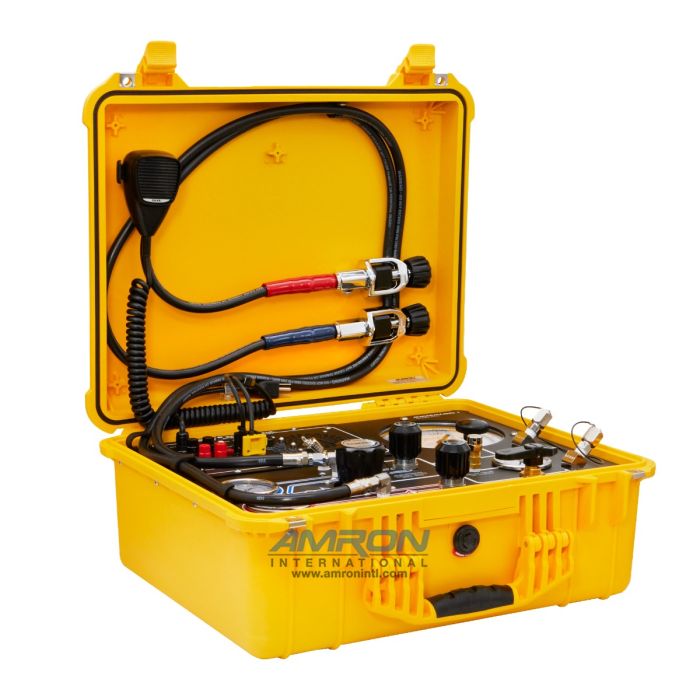

	FEATURES AMCOMMAND™ I One Diver - Air Control and Communications System is a portable, self-contained, one diver complete commercial dive system. This air control system provides all the operations necessary to monitor and control the commercial diving operation. It is a central control point for the supply of breathing air to a commercial diver. This Amron system also monitors the diver's depth, and provides superior hardwired communication between the diver and topside personnel. The system is a rugged, convenient, compact, and professional system designed for years of reliable operation. Easy set-up with high pressure air sources or low pressure air, which greatly extends search and rescue diving capabilities. High Pressure Side Two high pressure air supply connections with two color coded, 6ft SCUBA yokes and whips. The whips and yokes remain attached to the lid of the unit during storage or transit. Each input is color coded with individual shut off valves, and air pressure gauge for easy change out of the HP air supply bottles. As an added safety feature, check valves on each input provide protection against back flow of air from a full bottle to the empty in case the tender forgets to close the valve when switching HP bottles. A high quality Tescom adjustable, non-venting regulator reduces the high pressure air to low pressure air. The pressure reducing regulator input is protected against contamination by a 50 micron filter and a 0-600 PSIG air pressure gauge monitors the output air pressure. Low Pressure Side Input check valve permits simple switching to back-up high pressure air in the event of low pressure air failure. Commercial diver umbilical air connection is an oxygen type fitting controlled by a quarter turn ball valve which permits unrestricted flow. A relief valve (factory set at 285 PSIG) limits over pressurization of system. Pneumo (Depth Monitoring) System The heart of the pneumo system is a 6-inch precision gauge with 1/4 % of full scale accuracy and dual scale readings of 0-250 feet of seawater (FSW) and 0-76 meters of seawater (MSW). The gauge dial has a glare free face, mirror band with clearly marked increments for fast accurate reading. Hardwire Communications The Model 2810E-03 communicator operates in both 4-wire (full duplex), or 2-wire modes and comes standard with a hand-held push-to-talk microphone which cancels top side background noise and provides clear communication to the commercial diver. The communicator can operate on 90-264 VAC, 50-60 Hz or 12 VDC. The built-in medical grade power supply allows for simultaneous charging and operation of the unit while protecting the rechargeable battery from being overcharged. Automatically supplies power to the audio amplifier when AC power is disconnected to allow for continued operation. Integrated intelligent battery charging circuitry allowing unit to be left on charge indefinitely without damage to the batteries or communicator. SPECIFICATIONS Air Control High Pressure Input Pressure Range - Standard Unit with CGA850 Yokes: 500-3000 PSIG Input Pressure Range with 300 Bar DIN Adapters (Optional): 500-4500 PSIG Pressure Gauge: 0-6000 psi, accuracy +/- 1.5% full scale Inlet Valve: 2 source select Check Valve: 2 check valves prevent reverse inlet flow Yokes & Whips: 2 each 6 ft. blue and red Regulator Inlet Max Pressure: 4500 PSIG Regulator Outlet Pressure Range: 0-285 PSI In Line Filter Pre Regulator: 50 micron Low Pressure Relief Valve: Set 285 PSIG Input Fitting: #6 JIC Output Fitting: O2 Pneumo (Depth) Pneumo Gauge: Mirrored scale, 6 in., dual scale 0-250 FSW/0-76 MSW, 0.25% of full scale Pneumo Valve: Regulating type Pneumo Output Fitting: Oxygen Hardwire Diver Communications AC Power Operating Range: 90-264 VAC, 50-60 Hz Power Supply Voltage: 12 VDC nominal (9 volts minimum - 16 volts maximum) Power Supply: Medical grade Frequency Response: 300 to 4000 Hz Audio Power Output: 20 watts per channel Rechargeable Battery: 1 each 12-volt DC slide terminal gel-cell Improved battery life: 85 hours Independent diver and tender controls. Operates in 2 or 4-wire modes. MP3 player input allows for an external audio signal for diver entertainment. Record jack for recording dive operation audio. Panel Panel Material: Black polyester powder coated over stainless steel Graphics: Red, white, and blue silk-screened Case Dimensions 20 in. W x 14 in. D x 12 in. H (50.8 cm x 35.56 cm x 30.48 cm) with lid closed Dimensions 20 in. W x 14 in. D x 21 in. H (50.8 cm x 35.56 cm x 53.34 cm) with lid open Weight: 70 lb. (31.75 kg) INCLUDED WITH AIR CONTROL SYSTEM AMCOMMAND I 8111-01 One-Diver Air Control and Communication System Includes Amron 2405-28 Hand-Held Push-to-Talk Microphone Amron 8111-500 (2) HP Yoke/Hose Assemblies AMCOMMAND I 8111-UM One Diver Air Control System Manual AVAILABLE OPTIONS SAA-5300 Din Adapter 300 Bar Amron 2401-28 Deluxe Headset with Boom Mic Amron 2460-28 Standard Headset with Boom Mic Amron 2822-28 Remote Walk-and-Talk (4-wire mode) Amron 2821-28 Remote Walk-and-Talk (2-wire mode) WARNING: DO NOT USE THE AMRON 8111-01 FOR THE FOLLOWING Mixed gas diving operations with an oxygen level greater than 25%. Oxygen or oxygen enriched breathing mixtures above 25%. The Amron International Model 8111-01 One-Diver Air Control Surface Command Unit (SCU) is a compact, portable and affordable one-diver Surface Command Unit that includes a field-proven 2810E-03 AMCOM™ I One-Diver Communicator. This Surface Command Unit is a self-contained high/low pressure air control and depth monitoring (pneumo) system for surface supplied commercial diving operations. Features The Amron International Model 8111-01 One-Diver Air Control Surface Command Unit (SCU) is compact and easily portable, and ergonomically designed with the customer in mind. This air control system provides everything needed to safely monitor and control a diving operation. Ideal for the inland diver, but rugged enough for the offshore diver, the 8111-01 is a great Surface Command Unit for any commercial dive environment. The 8111-01 is a self-contained high/low pressure air control and depth monitoring (pneumo) system with a one-diver communicator for surface supplied diving operations. The included 2810E-03 AMCOM™ I One-Diver Communicator and is a full-featured one-diver communicator with independent microphone and earphone volume controls for the tender and diver. The communicator can operate in both 4-wire (full duplex), or 2-wire modes. The communicator has a built-in internal charger and can be operated using a 90-264 VAC, internal 12 VDC battery, or an external 12 VDC power source. High Pressure Side High pressure air inputs include two color-coded (red & blue) SCUBA bottle yokes with six-foot air hose whips. Standard 3000 PSI maximum input when using SCUBA yokes. Optional 4500 PSI maximum input when using 300 Bar DIN Adapters, P/N: SAA-5300. Each of the two HP inputs has a 0-6000 PSI gauge to monitor input pressure, and a shut-off valve to switch from one high pressure air source to the other. The added safety feature of check valves provides protection against back flow of air from a full tank into an empty tank when switching high pressure air tanks. High pressure air is reduced to low pressure via a pressure reducing regulator and a pre-regulator, in-line, 50 micron filter. Output pressure is monitored using a 0-600 PSI gauge. A relief valve (factory set at 285 PSI) prevents over pressurization. Low Pressure Side The LP input with safety check valve has a #6 JIC fitting and is protected from over pressurization by an over-pressure relief valve set at 285 PSI. The input check valve provides simple switching to back-up high pressure air in the event of low pressure air failure. The high pressure air supply can quickly and simply be turned on. The diver air hose connection is an O2 fitting controlled by a quarter-turn ball valve. Note: The O2 fitting can be optionally converted to JIC upon request at the time of order. Pneumo (Depth Monitoring) System At the heart of the pneumo system is a 6-inch precision gauge with 0.25% of full scale accuracy and dual scale readings of 0-250 feet of seawater (FSW) / 0-76 meters of seawater (MSW). The gauge dial has a mirror band and clearly marked one-foot increments for fast, accurate readings. The regulating needle valve (with KEL-F seat) controls air to the pneumo gauge and a chrome plated, O2 fitting for the pneumo hose connection. Communications The 8111-01 comes standard with a field-proven 2810E-03 AMCOM™ I One-Diver Communicator. This is a full-featured communicator with independent microphone and earphone volume controls for the tender and each diver. The 2810E-03 communicator can be operated in either 2-Wire or Full Duplex (4-Wire) communication modes. Audio input jacks on the front panel (2x RCA) are provided to connect external audio for diver entertainment (when using 4-wire, full-duplex mode comms). A tape recording jack (RCA) is also included on the front panel. The communicator has a built-in internal charger and can be operated using a 90-264 VAC, internal 12 VDC battery, or an external 12 VDC power source. The battery life of a fully-charged 2810E-03 communicator is approximately 85 hours. The communicator comes with Amron’s standard 2405-28 handheld, push-to-talk microphone. Panel: Black powder coat over stainless steel with white silkscreen graphics. Air Control Specifications High Pressure Input Supply Pressure Range - Standard Unit: 500-3000 PSI (with a standard SCUBA yoke) Input Supply Pressure Range - with Optional 300 Bar DIN Adapter (P/N: SAA-5300): 500-4500 PSI Regulator Outlet Range: 0-500 PSI (relief valve limited to 285 PSI) Regulator High Flow: Cv = 0.06 Tescom 44-2214-244-1068 Pressure Reducing Regulator Yokes & Whips (SCUBA CGA 850): 6 ft. blue and red hose protectors Inlet Connection: #4 JIC (stainless steel) Inlet Valve (x2): Source select regulating type Input Gauge (x2): 0-6000 PSI: Accuracy +/- 1.5% Check Valve (x2): 1/3 PSI In Line Filter: 50 micron Low Pressure Inlet Fitting: #6 JIC Check Valve: 1/3 PSI Diver Outlet: Ball valve Output Fitting: Oxygen Pressure Gauge, 0-600 PSI: Accuracy +/- 1.5% Over Pressure Relief Valve: Set at 285 PSI Pneumo (Depth) Pneumo Gauge: Mirrored scale, 6-inch, dual scale 0-250 FSW/0-76 MSW, 0.25% of full scale Pneumo Valve: Regulating type, KEL-F seat Pneumo Output Fitting: Oxygen Front Panel Panel Material: Black textured semi-gloss polyester coated over stainless steel Graphics: Red, white, and blue Case Dimensions: 20-1/2 in. W x 17 in. D x 8-1/2 in. H with lid closed Dimensions: 20-1/2 in. W x 18.3/4 in. D x 23 in. H with lid open Case Material: Co-polymer composite material Case Features: Carrying handle, latches, stay hinge to lock unit in open position, microphone holder and yoke holders Color: International yellow Weight: 45 lb. (20.41 kg) Included Items Amron 8111-01 Compact One-Diver Surface Command Unit (SCU) Air Control System Includes: Amron 2405-28 Hand-Held Push-to-Talk Microphone Amron 8225-500 HP Yoke/Hose Assembly AVAILABLE OPTIONS SAA-5300 Din Adapter 300 Bar Amron 2401-28 Deluxe Headset with Boom Mic Amron 2460-28 Standard Headset with Boom Mic Amron 2822-28 Remote Walk-and-Talk (4-wire mode) Amron 2821-28 Remote Walk-and-Talk (2-wire mode) Amron 2405NC-28 Noise Cancelling Handheld Push-to-Talk Microphone WARNING: DO NOT USE THE AMRON 8111-01 FOR THE FOLLOWING Mixed gas diving operations with an oxygen level greater than 25%. Oxygen or oxygen enriched breathing mixtures above 25%.

Information

The Amron International Model 8111-01 One-Diver Air Control Surface Command Unit (SCU) is a compact, portable and affordable one-diver Surface Command Unit that includes a field-proven 2810E-03 AMCOM™ I One-Diver Communicator. This Surface Command Unit is a self-contained high/low pressure air control and depth monitoring (pneumo) system for surface supplied commercial diving operations.

Easy set-up of high pressure (up to 3000 PSI) or low pressure air (up to 285 PSI) enhances search and rescue diving capabilities. To use the 8111-01 with a 4500 PSI inlet air supply, simply change the yoke assembly to the optional SAA-5300 DIN Adapter 300 Bar.

The system comes standard with the field proven 2810E-03 AMCOM™ I One-Diver Communicator that is a full-featured communicator with independent microphone and earphone volume controls for the tender and diver. It can be operated in either 2-Wire or Full Duplex (4-Wire) communication modes. The communicator has a built-in internal charger and can be operated using a 90-264 VAC, internal 12 VDC battery, or an external 12 VDC power source. Audio input jacks on the front panel (2x RCA) are provided to connect external audio for diver entertainment (when using 4-wire, full-duplex mode comms). A tape recording jack (RCA) is also included on the front panel.

The 8111-01 is manufactured with Amron’s high quality standards and over 40 years of experience in the diving industry. Ideal for the inland diver, but rugged enough for the offshore diver, the 8111-01 is a great Surface Command Unit for either application.

WARNING: DO NOT USE THE AMRON 8111-01 FOR THE FOLLOWING

Mixed gas diving operations with an oxygen level greater than 25%.
Oxygen or oxygen enriched breathing mixtures above 25%.

Resources

ATTACHMENTS

8111-XX-UM REV 10.0 AMCOMMAND I One Diver Air Control System Manual

(Size: 1.2 MB)

FAQ's

How do I change my two high pressure supply whips from yoke to DIN?

You will need to remove the yoke assembly from the bleed assembly from the high pressure supply connections. To remove the yoke assembly, you simply loosen and remove the large nut located next to yoke bleed screw. Once removed you will need to install your 300 Bar DIN adapter part number HAS-300D.

What type of cable do I need to connect my Amron communicator to my Outland video system?

Amron communicators and Outland Technology’s video systems have a RCA Phono Jack. To connect the two systems together, you will need an audio cable with RCA Plugs on each end.

Should I use a GFI when operating my radio off AC power?

When operating your Amron Diver Communicator on AC, it is critical to use a Ground Fault Circuit Interrupter (GFCI) or isolation transformer for tender and diver safety. Surges and spikes are common on AC lines found on ships, generated locally, or at the end of long extension cable runs and can exceed 1kVolt. Such surges and spikes can cause the fuse to blow on the amplifier card assembly. The power supply is designed so that such a failure will be isolated and will not cause a safety issue to the tender or divers. It is strongly advised that your Amron Diver Communicator be operated on an AC circuit with a high quality surge arrester or an AC isolation transformer.

Can I operate my communicator while I’m charging the internal battery?

Yes, however, the charger will charge the battery at a slower rate as some of the charger power is being used to operate the communicator.
