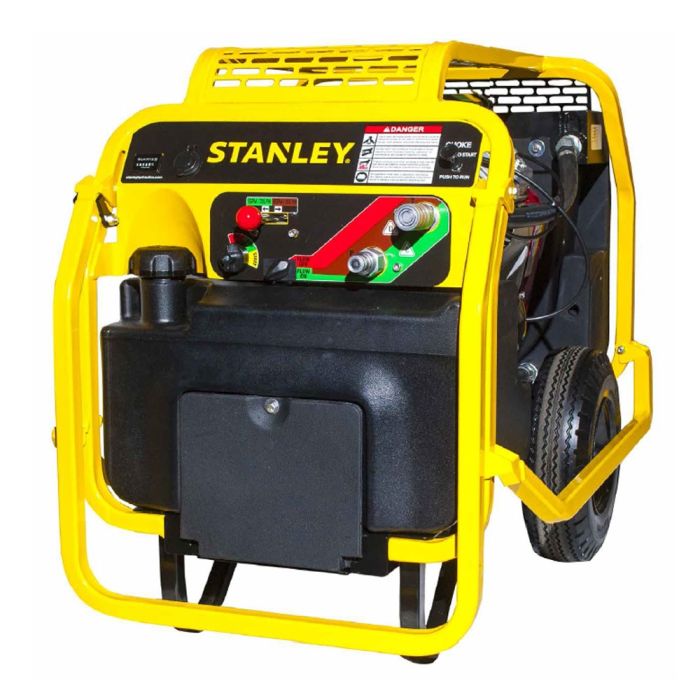

Stanley HP8BD Hydraulic Power Unit - 5 or 8 gpm Output Capacity

Name: Stanley HP8BD Hydraulic Power Unit - 5 or 8 gpm Output Capacity
Brand: Stanley
SKU: HP8BD
Price: 8308.08 USD
Availability: InStock

SKU

HP8BD

List Price: $8,392.00

$8,308.08

The HP Series of Stanley Hydraulic Power Units are designed for continuous duty operation with an efficient oil cooler as standard equipment.

The HP8BD Hydraulic Power Unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 1 and Type 2 hydraulic tools. Its powerful 18 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP8 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP8 the workhorse of the industry.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

For compatible tools, please see "Tools that are compatible with the Stanley HP8BA Hydraulic Power Unit" below.

Application:

Designed to provide power for hydraulic tools requiring a single 5 gpm up to 8 gpm.

Features:

Briggs Vanguard engine
Air-to-oil cooler with high-speed blower
Manual throttle control
Lift and latch handle
12 inch Foam filled tires
Low oil pressure shutoff
Electric start and all-electric controls
12 vdc plug on some models

Specifications:

Engines: 18 hp Briggs
Output Capacity: 5 or 8 GPM (20 or 30 LPM)
Length: 36 in. / 91.4 cm
Width: 23 in: / 58.4 cm
Height: 29.5 in. / 74.9 cm
Fuel Tank Capacity: 5.5 gal. / 20.8 liters
Weight (Wet): 330 lbs (149.6 kg)
Estimated Gas Consumption Per Hour: 1.3 gal / 4 liters
Hydraulic Reservoir Capacity: 3 gallons / 11 liters
Relief Valve setting: 2100 psi / 145 bar
Max relief setting: 2500 psi / 172 bar
HTMA/EHTMA Category: Type 1 and 2
Nominal Pressure: 1500 psi/103 bar
Max Pressure: 2000 psi/138 bar
Guaranteed Sound Power Level: 101 dBA
Measured Sound Power Level: 99 dBA
Vibration Level: N/A
Dimensions: 35 in. L x 21.5 in. W x 29 in. H (89 cm L x 54.6 cm W x 73.7 cm H)

Tools that are compatible with the Stanley HP8BA Hydraulic Power Unit

Tool Part #	Tool Name	Compatible	Tool Max. GPM	HP8BA Power Unit Max. GPM
BR45350	Hydraulic Underwater Light To Medium Duty Breaker BR45	YES	9 GPM	8 GPM
BR67320	Hydraulic Underwater Light To Medium Duty Breaker BR45	YES	9 GPM	8 GPM
BR87320	Hydraulic Underwater Heavy Duty Breaker BR87	YES	9 GPM	8 GPM
CH1533101	Hydraulic Underwater Light and Medium Chipping Hammer CH15	YES	9 GPM	8 GPM
CH18311	Hydraulic Underwater Chipping Hammer CH18	YES	9 GPM	8 GPM
CO23341	Hydraulic Underwater Cut-Off Saw CO23	NO	15 GPM	Use the HP12B Hydraulic Power Unit
CS06920	Hydraulic Underwater Chainsaws CS06 - CS06920 - 15 Inch Capacity	YES	9 GPM	8 GPM
CS06930	Hydraulic Underwater Chainsaws CS06 - CS06930 - 20 Inch Capacity	YES	9 GPM	8 GPM
CS113NO	Hydraulic Underwater Chainsaws CS11	NO	14 GPM	Use the HP12B Hydraulic Power Unit
DL07652	Hydraulic Underwater Drill DL07	YES	10 GPM	8 GPM
DS115000	Hydraulic Underwater Diamond Chainsaw DS11	NO	12 GPM	Use the HP12B Hydraulic Power Unit
GR29310	Hydraulic Underwater Grinder GR29	YES	12 GPM	8 GPM
GR2930101	Hydraulic Underwater Grinder GR29 (CE Version)	YES	12 GPM	8 GPM
HD45310	Hydraulic Underwater Hammer Drill HD45	YES	9 GPM	8 GPM
ID07920	Hydraulic Underwater Impact Drill/Wrench ID07	YES	12 GPM	8 GPM
IW12340C	Hydraulic Underwater Impact Wrench IW12	YES	12 GPM	8 GPM
IW1234001	Hydraulic Underwater Impact Wrench IW12	YES	12 GPM	8 GPM
IW16350	Hydraulic Underwater Impact Wrench IW16	YES	12 GPM	8 GPM
IW24360	Hydraulic Underwater Impact Wrench IW24	YES	12 GPM	8 GPM
SK58310	Hydraulic Underwater Sinker Drill SK58	YES	9 GPM	8 GPM
