Amron Double Lock Chamber Communicator

Name: Amron Double Lock Chamber Communicator
Brand: Amron
SKU: 2820A-02
Price: 2547.00 USD
Availability: InStock

SHIP NOW

SKU

2820A-02

$2,547.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	ENHANCEMENTS: • High Audio Fidelity Ultra-low noise circuit combined with noise suppression circuitry produces crystal clear speech. Automatic gain adjustment will guard audio signal from distortion, enhance speaker protection and audio quality. Increases band width 47%. • Extended Battery Backup Operation Time Audio amplifier card deploys the state-of-the-art Class-D digital audio power amplifier. Has very low power dissipation, produces less heat, and extends battery backup life up to 32%. • Flexible Gain Settings The audio amplifier card has adjustable gain settings to accommodate different communication applications and environments. • Ultra-Low Electromagnetic Interference (EMI) EMI is achieved through spread-spectrum and de-phase control techniques providing for optimum integration with diving systems. FEATURES: Fully featured hard-wired, double lock chamber communicator system. The AMCOM™ II has independent channels and volume controls (operator, inner lock, and outer lock), as well as separate on/off controls for each lock. Built-in internal charger with battery back-up. Panel microphone allows for easier communications with chamber occupants. Two modes of operation - 2-wire mode and/or 4-wire mode. Separate volume controls for operator and each lock. Separate on/off controls for each lock. SPECIFICATIONS: Input Impedance (Each Input): 250 Ohms Frequency Response: 300 - 10000 Hz Common Mode Rejection: 40 dB Minimum Current Drain Maximum Full Volume: 3 Amps Minimum Quiescent: 0.190 Amps Output Impedance: 4 Ohm Power Supply Voltage: 12 VDC Nominal (9 Volts Minimum - 16 Volts Maximum) AC Power Operating Range: 90-264 VAC, 50-60 Hz Sensitivity (Input): 0.5 mV Output Power (RMS @ 4 Ohm Load, 12 VDC): 10 Watts Audio Battery Life: 45 hours Dimensions: 8.0 in. H x 10.1 in. W x 7.5 in. D (20.3 cm x 25.7 cm x 19.1 cm) Weight: 14 lb. (6.4 kg) INCLUDED WITH COMMUNICATOR: AMCOM II 2820A-02 Double Lock Chamber Communicator includes: (1) Amron 2405-28 Hand-Held Push-to-Talk Microphone (1) Amron 2890-05 12VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals (1) Amron MS-3106A-20-27S 14 Pin Female MS Connector MS Connector (1) Amron MS-3057-12A 20/22 Shell MS Cable Clamp (1) Amron P-2392 Power Cord (1) Amron 2820A-02-UM Double Lock Chamber Communicator User Manual AVAILABLE OPTIONS: Amron 2401-28 Deluxe Headset with Boom Mic Amron 2460-28 Standard Headset with Boom Mic TECH NOTE: Amron International’s communications equipment is designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Use of our products in high concentration Oxygen environments may result in serious injury and/or death. ENHANCEMENTS • High Audio Fidelity Ultra-low noise circuit combined with noise suppression circuitry produces crystal clear speech. Automatic gain adjustment will guard audio signal from distortion, enhance speaker protection and audio quality. Increases band width 47%. • Extended Battery Backup Operation Time Audio amplifier card deploys the state-of-the-art Class-D digital audio power amplifier. Has very low power dissipation, produces less heat, and extends battery backup life up to 32%. • Flexible Gain Settings The audio amplifier card has adjustable gain settings to accommodate different communication applications and environments. • Ultra-Low Electromagnetic Interference (EMI) EMI is achieved through spread-spectrum and de-phase control techniques providing for optimum integration with diving systems. FEATURES Fully featured hard-wired, double lock chamber communicator system. The AMCOM™ II has independent channels and volume controls (operator, inner lock, and outer lock), as well as separate on/off controls for each lock. Built-in internal charger with battery back-up. Panel microphone allows for easier communications with chamber occupants. Two modes of operation - 2-wire mode and/or 4-wire mode. Separate volume controls for operator and each lock. Separate on/off controls for each lock. SPECIFICATIONS Input Impedance (Each Input): 250 Ω Frequency Response: 300 - 10000 Hz Common Mode Rejection: 40 dB minimum Current Drain Maximum Full Volume: 3 amps Minimum Quiescent: 0.190 amps Output Impedance: 4 Ω Power Supply Voltage: 12 VDC Nominal (9 volts minimum - 16 volts maximum) AC Power Operating Range: 90-264 VAC, 50-60 Hz Sensitivity (Input): 0.5 mV Output Power (RMS @ 4 Ω load, 12 VDC): 10 watts audio Battery Life: 45 hours Dimensions: 8.0 in. H x 10.1 in. W x 7.5 in. D (20.3 cm x 25.7 cm x 19.1 cm) Weight: 14 lb. (6.4 kg) AMCOM II 2820A-02 Double Lock Chamber Communicator Includes (1) Amron 2405-28 Hand-Held Push-to-Talk Microphone (1) Amron 2890-05 12VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals (1) Amron MS-3106A-20-27S 14 Pin Female MS Connector MS Connector (1) Amron MS-3057-12A 20/22 Shell MS Cable Clamp (1) Amron P-2392 Power Cord (1) Amron 2820A-02-UM Double Lock Chamber Communicator User Manual AVAILABLE OPTIONS Amron 2401-28 Deluxe Headset with Boom Mic Amron 2460-28 Standard Headset with Boom Mic TECH NOTE Amron International’s communications equipment is designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Use of our products in high concentration Oxygen environments may result in serious injury and/or death. ENHANCEMENTS • High Audio Fidelity Ultra-low noise, wide band width amplifier circuit combined with noise suppression circuitry produces crystal clear speech. The amplifier’s Automatic Gain Control (AGC) circuit prevents audio signal distortion and enhances speaker protection and audio quality. • Extended Battery Operation Time The audio amplifier card deploys a state-of-the-art, Class-D digital audio power amplifier. It has very low power dissipation, generates minimal heat, and enhances battery life. • Ultra-Low Electromagnetic Interference (EMI) EMI is minimized through spread-spectrum and de-phase control techniques providing for optimum integration with diving systems. Features Full featured, double lock chamber communicator system for hard-wired installations. The AMCOM™ II has independent channels and volume controls (operator, inner lock, and outer lock), as well as separate on/off controls for each lock. Built-in internal charger with battery back-up. Panel microphone allows for easier communications with chamber occupants. Two modes of operation: 2-wire mode and/or 4-wire mode. Separate volume controls for operator and each lock. Separate on/off controls for each lock. SPECIFICATIONS Input Impedance (Each Input): 250 Ω Frequency Response: 300 - 10000 Hz Common Mode Rejection: 40 dB minimum Current Drain Maximum Full Volume: 3 amps Minimum Quiescent: 0.190 amps Output Impedance: 4 Ω Power Supply Voltage: 12 VDC Nominal (9 volts minimum - 16 volts maximum) AC Power Operating Range: 90-264 VAC, 50-60 Hz Sensitivity (Input): 0.5 mV Output Power (RMS @ 4 Ω load, 12 VDC): 10 watts audio Battery Life: 45 hours Dimensions: 8.0 in. H x 10.1 in. W x 7.5 in. D (20.3 cm x 25.7 cm x 19.1 cm) Weight: 14 lb. (6.4 kg) AMCOM II 2820A-02 Double Lock Chamber Communicator Includes (1) Amron 2405-28 Hand-Held Push-to-Talk Microphone (1) Amron 2890-05 12VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals (1) Amron MS-3106A-20-27S 14 Pin Female MS Connector (1) Amron MS-3057-12A 20/22 Shell MS Cable Clamp (1) Amron P-2392 Power Cord (1) Amron 2820A-02-UM Double Lock Chamber Communicator User Manual AVAILABLE OPTIONS Amron 2401-28 Deluxe Headset with Boom Mic Amron 2460-28 Standard Headset with Boom Mic Tech Note Amron International’s communications equipment is designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Use of our products in high concentration Oxygen environments may result in serious injury and/or death.

Information

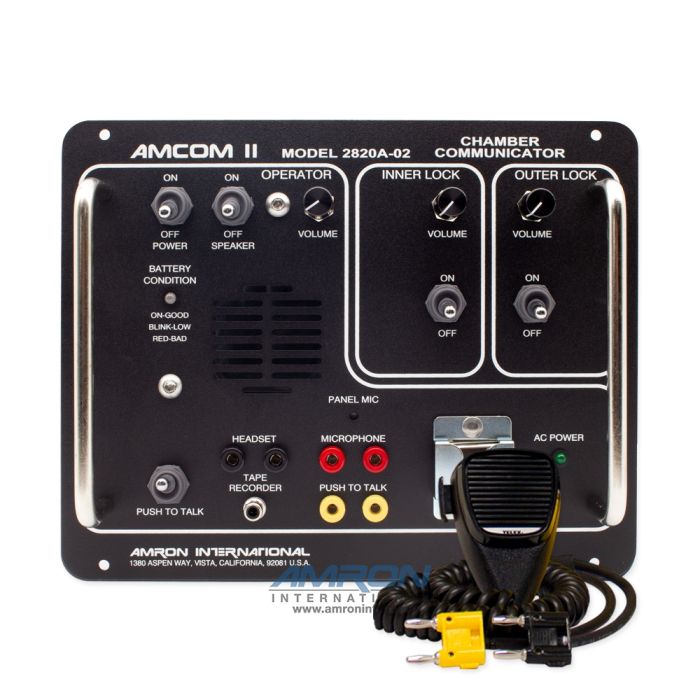

The AMCOM™ II 2820A-02 Double Lock Chamber Communicator is a full-featured, double lock communicator system for hard-wired installations. The AMCOM™ II has independent volume controls (operator, inner lock, and outer lock), as well as separate on/off controls for each lock. This model comes standard with a built-in Internal Charger, Battery Back-up and Handheld PTT Microphone.

DISCLAIMER NOTICE: Amron's chamber communications are designed to be used in air chambers where oxygen concentrations remain below 23.5%. Our communications products (including communicators, speakers, entertainment systems, and other communications accessory items) are NOT designed for oxygen service, are not intrinsically safe, and do not meet the criteria given in NFPA-99, Chapter 20 and other applicable definitions. Misuse of our chamber communicator products in high-concentration Oxygen environments may result in serious injury and/or death.

Resources

ATTACHMENTS

Amron Models 2820A-02 & 2820A-03 Chamber Communicators User Manual REV 4.0

(Size: 1016.2 KB)

Amron Panel MIC Data Sheet Rev 3.0

(Size: 398.5 KB)

FAQ's

How do I replace rechargeable the battery on my 2820A-02 / 2820-03 communicator?

Please refer to the Troubleshooting section of the user manual for battery replacement instructions.

How do I install a new microphone in my Amcom II or III Communicator?

For new panel microphone installation instructions, please refer to the Amron Panel MIC Data Sheet located in the Resources tab.

When my battery does not appear to be holding a charge, how do I know if the problem is a bad battery or if the charger is broken?

To determine whether the problem is with the battery or charging circuitry, you will need to verify if the battery is being charged.

Troubleshooting:

Unplug your communicator and turn on the POWER switch.
Measure the voltage across the yellow PUSH-TO-TALK (PTT) jack and write down this value for future reference. It should be greater than 9 Volts.
Plug the communicator into an AC source and verify that the AC POWER LED on the front panel turns on.
Re-measure the voltage across the PTT jack and note it down for future reference. It should be higher than the previous measurement.
If the AC POWER LED does not light up when the communicator is plugged in, then check fuse located on the amplifier card.
Allow the communicator to charge overnight.
Unplug the communicator and re-measure the voltage across the PTT jack.
1. If it is the same or less than the voltage you measured previously, then the charger is broken and the communicator needs to be sent in for repairs
2. If the voltage higher than previous measurement but less than 13.5 Volts, then the battery is bad and needs to be replaced.
3. If it is greater than 13.5 Volts but it still appears that the battery is not holding a charge, contact Amron for additional support.

Can my Amcom communicator work on 240V / 60Hz?

Yes, the unit has an operating range of 90-264 VAC, 50-60 Hz.

What are the environmental parameters that Amron's comms units can be used in?

Temperature: Class C Ambient Temperatures –25°C to +55°C Humidity: Class A Relative humidity up to 96% at all relevant temperatures, no condensation Vibration: Class A On bulkheads, beams, deck, bridge EMC: Class B All locations including bridge and open deck.
