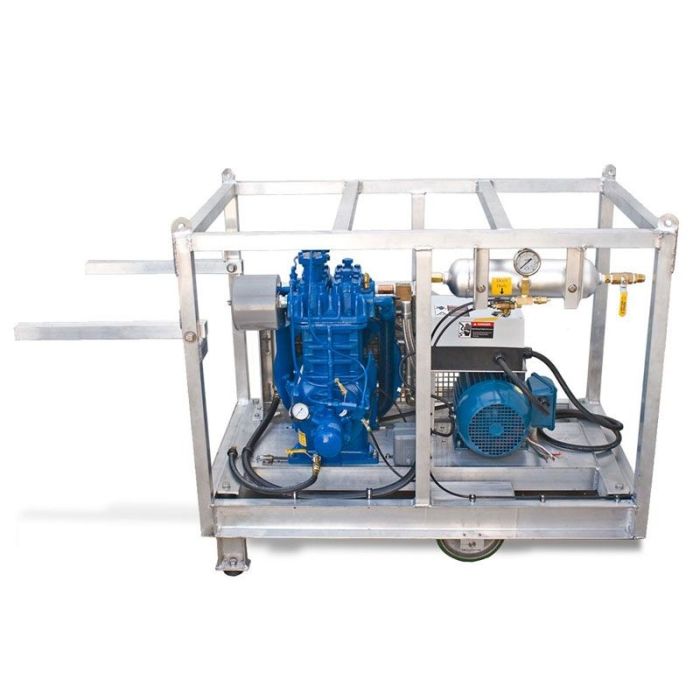

Quincy 325 5 hp TEFC WEG Electric Compressor Climate Control Low

Features:

• Low pressure compressor pump with pressured lubrication and loadless start with head unloaders.
• Ball valve output.
• Gate valves and plumbing.
• NEMA 4 starter and hour meter.
• High quality two-stage splash lubricated pump.
• Over pressure, drain and check valves.
• Handles and wheels making it easy to wheel on and off the job.
• Certified lifting eyes.
• Large air cooled aftercooler.
• All equipment is inset.
• Hour meter compressor and electric motor have independent vibration absorption.
• Compressor and electric motor are mounted on an aluminum plate and have independent vibration absorption mounts.

Specifications:

• Compressor Type: 440-480 V / E3 / 60 Hz
• Surge Tank: 1 gallon
• Industrial Air**: 8 A
• Motor Power: 5 hp (3.7 kW)
• Motor: WEG electric
• Flow Rate: 17.4 CFM (493 L/min)
• Max Operating Pressure: 175 psi (12 bar)
• Frame: 6061 aluminum and enclosed bottom.
• Number of Stages: 2
• Lubrication: Pressure
• Air Quality: Industrial Air**
• Dimensions: 29 in. L x 48 in. W x 38 in. H
• Weight: 411 lb. (186 kg)
• Rated: 18.7 CFM at 175 PSI

Options:

• Electric motor in any volt or phase.
• Low pressure regulator for downstream pressure.
• Pro CO analyzer with low pressure alarm.
• Pro CO analyzer with low pressure + high temperature alarm.
• Low oil shutdown.
• High temperature shutdown.
• Breathing air filtration.
• ASME rated 30 gal or larger gas receiver (volume tank).
• Certified pull test.
• 7.5 hp (5.6 kW) option.
• 250 or 300 psi.

** "Industrial air" requires volume tank and proper filtration for use as breathing air.
