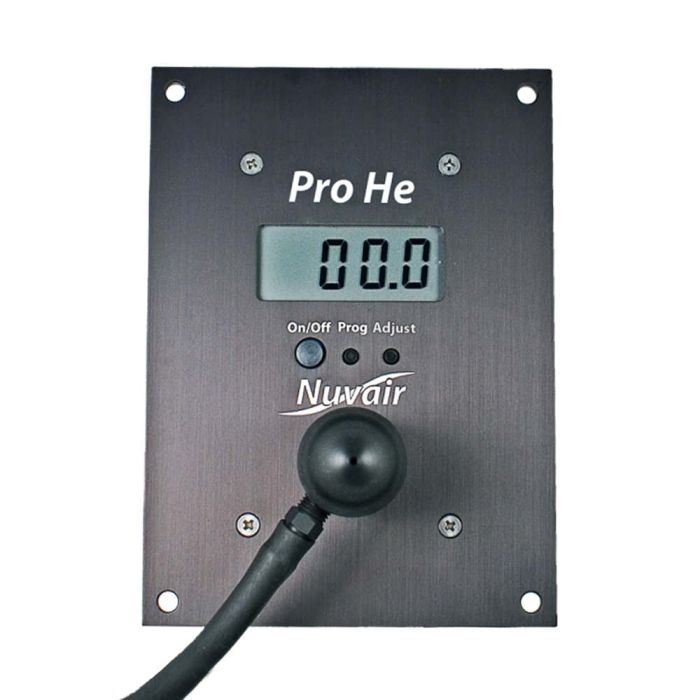

Nuvair Pro Helium (He) Alarm Analyzer - Panel Mount

SHIP NOW

Only %1 left

SKU

NUV-9628

As low as $732.60

Nuvair's Pro Helium (He) Alarm Analyzer - Panel Mount NUV-9628 is designed for installation on a control panel or other flat surface, the Nuvair Pro O2 panel mount alarm analyzer measures helium levels in mixed gases. Two audible and visual alarms for low and high helium content can be set by the user. If the alarm sounds, the analog output can activate an optional relay that shuts down compressors automatically, sounds a remote alarm, or activates an emergency backup system. Does not require calibration. Can be used as a continuous reading analyzer while mixing gas.

Restrictions / Notifications

CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov
MSDS
Safety Data Sheet available online or by request.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: LCD display. Auto switch off setting. Fast response. Made to test breathing gases. Easy to operate, reliable and accurate. Long life thermal conductivity sensor. Display range of 0.0-100%. Low battery warning indicator. Two (2) custom audible and visual alarms. 4-20 mA analog output for external devices. Capable of shutting down compressor at set threshold alarm. Specifications: Ful Scale Resolution (FSR): ±2% over full scale Display Accuracy: ±2% Humidity Range: 0-90% rh, non-condensing Response Time: <10 seconds for 90% of final value Operating Temperature Range: 41-104°F (5-40°C) Storage Temperature Range: 5-122°F (-15 to 50°C) Dimensions: 5.5 in. L x 4 in. W x 2 in. H Power Options: Rechargeable Lithium Battery Wall Plug-in [International] Wall Plug-in [International] with SMART START Module *Warning: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
