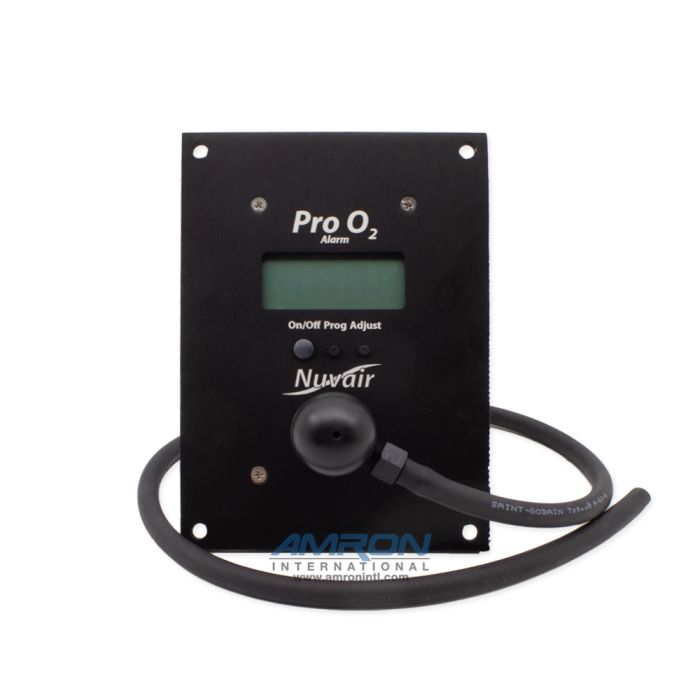

Nuvair Pro Oxygen O2 Alarm Analyzer - Panel Mount

Only %1 left

SKU

NUV-9612

As low as $532.62

Nuvair's Pro Oxygen O2 Alarm Analyzer - Panel Mount NUV-9612 is designed for installation on a control panel or other flat surface, the Nuvair Pro O2 panel mount alarm analyzer measures oxygen levels in breathing gas mixtures. Audible and visual alarms for low and high oxygen content can be set by the user. If the alarm sounds, the analog output can activate an optional relay that shuts down compressors automatically, sounds an alarm, or activates backup systems. Four power options and remote sensor available.

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
CA PROP65
Warning: Cancer and Reproductive Harm www.p65warnings.ca.gov

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: On/Off switch. Low battery warning indicator. Easy calibration. User-replaceable battery and sensor. Audible alarm sounds when user-defined low or high O₂ percentage is reached. 4-20 mA analog output for external devices. Analog output can activate optional relay to automatically shutdown compressor when alarm activates. Fast response, thermally compensated sensor. Completely sealed, water resistant housing. Automatic calibration. Specifically designed to test breathing gases. Specifications: Display Accuracy: ±1% Sensor Type: Electrochemical Expected Sensor Life: 36 months in air at 25°C (77°F) and 50% rh Range: 0-100% Oxygen Response Time: <6 seconds for 90% of final value Operating Temperature: 32-104°F (0-40°C) Storage Temperature: 32-122°F (0-50°C) Operating Humidity: Up to 100% rh Dimensions: 5.5 in. L x 4 in. W x 2 in. H Power and Sensor Options: 9-volt battery Remote sensor with 9-volt battery Rechargeable lithium battery Wall plug-in [international] DIN Rail Replacement Sensor: Oxygen Sensor Replacement 9507M *Warning: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
