Amron 330 ft. Military 3-Part Umbilical Air/Pneumo/Comms

• Rugged, flexible and long-lasting.
• Resistant to abrasion and kinking.
• Buoyant in seawater and freshwater.
• Clean and odor-free hoses.
• Spiral wound elements.

• Length: 330 ft.
• 3-Part spiral wound umbilical - air, pneumo, and comms/strength
• Oxygen fittings installed on both ends of the diver's hose and surface end of the pneumo hose.
• 4-pin female waterproof connector installed on the diver's end of the comm cable.

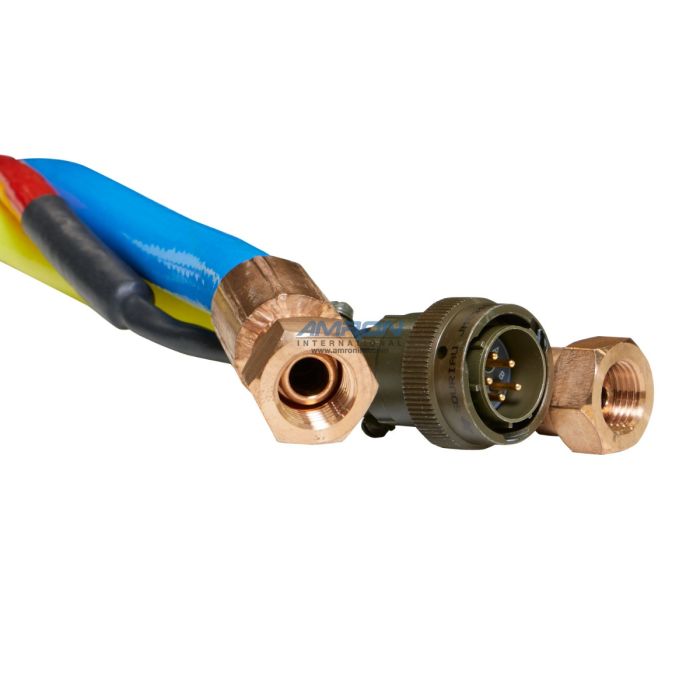

• U.S. Navy 5-pin male MS connector on the surface end of the comm cable.
• Snap shackle (MWL 2980 lb. / BL 5950 lb.) with welded D-ring installed on diver end, seized 48 in. from the umbilical end.
• D-ring installed on the surface end, seized 10 ft. from the umbilical end.
• Brass tag showing manufacturing and testing information.
• Fully tested, includes testing certification.

• Shielded, Twisted Pairs: 2 x 0.5 mm2 (20 AWG)
• Polyester Strength Braid: 500 kg minimum break strength
• Red Polyurethane Outer Sheath: 1.7 mm nominal thickness
• Weight in Air: 120 kg/km
• Weight in Sea Water: 25 kg/km
• O.D. mm: 11.0 mm
• Diver side rubber molded connector - 4 socket female - used with KMDSI helmets P/N: RMG-4-FS
• Surface side MS connector straight plug - 5-pin male P/N: MS-3116F-14-5P
• Insulation Color: Red

• Hose Type: Fibrolite
• Max Working Pressure: 400 PSI / 27.5 bar
• Minimum Burst Pressure: 1600 PSI / 110 bar
• Nominal Bore: 1/4 in. / 6.3 mm
• Outside Diameter: 11.5 mm
• Weight in Air: 82 kg/km
• Weight in Sea Water: -25 kg/km
• Minimum Bend Radius (Static): 75 mm
• Minimum Bend Radius (Dynamic): 115 mm
• Tensile Rating: 100 kg
• 1/4 in. oxygen hose fitting, swaged (phosphor-bronze) P/N: FPBSF/M/04-04OXY
• Hose Color: Yellow

• Hose Type: Fibrolite
• Max Working Pressure: 500 PSI / 35 bar
• Minimum Burst Pressure: 2000 PSI / 140 bar
• Nominal Bore: 3/8 in. / 9.5 mm
• Outside Diameter: 17.5 mm
• Weight in Air: 193 kg/km
• Weight in Sea Water: -53 kg/km
• Minimum Bend Radius (Static): 105 mm
• Minimum Bend Radius (Dynamic): 1160 mm
• Tensile Rating: 100 kg
• 3/8 in. oxygen hose fitting, swaged (phosphor-bronze) P/N: FPBSF/M/06-04OXY
• Hose Color: Blue

• Umbilical lengths are subject to +/- 2% over/under the quoted length.
• Canadian Standards Association code CSA-275.2-04 states that the diver’s lifeline shall have a breaking strength of no less than 2000 lb. This umbilical does not meet that standard. Please contact your Amron sales representative for alternate spiral umbilical material that can meet this standard.
• Australian Standards AS2299.1 3.13.6 requires that the minimum breaking strength of any potential load bearing component of a diver’s umbilical or lifeline shall be at least 6 kn (600 kg). This umbilical does not meet that standard. Please contact your Amron sales representative for alternate spiral umbilical material that can meet this standard.


Amron sells many different diving umbilical configurations. If you don't see the configuration you need, please call our award-winning sales staff at (760) 208-6500 or email us at sales@amronintl.com to help build your diving umbilical, get a quote, and place your order today!
