TESCOM Pressure Reducing Regulator 316 SS, Inlet 10,000 PSI, Outlet 15-2,500 PSIG, 1/4 In. NPTF, 307 Mod.

• Body Material: 316 stainless steel
• Max Inlet Pressure: 10,000 psi / 690 bar
• Outlet Pressure Range: 15-2,500 psig / 1.0-172 bar
• Design Proof Pressure: 150% of maximum rated inlet
• Operating Temperature: -15°F to +165°F
• Port Size: 1/4 in. NPTF
• Modification 307 Features:
  • Main Valve Seat: 17-4 SST
  • Non-Venting
  • Orifice: .125 Cv=.12
  • No filter
  • Hydraulic
  • O-Rings: Viton®
  • Teflon™ coated load spring
  • Elgiloy main valve spring
  • Corrosion-resistant bearings
  • N.A.C.E.
  • 316 SST bonnet
• Leakage: Bubble-tight
• Flow Capacity: Cv = .12
• Maximum Operating Torque: 35 in.-lb. (3.95 Nm)
• Cleaning: CGA 4.1 and ASTM G93
• Weight: 4 3/4 lbs.

This product had been designed to the guidelines of N.A.C.E. Standard MR-01-75 (1980 Revision) in the pressurized areas. Non-pressurized areas are outside the scope of this N.A.C.E. standard.

CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.

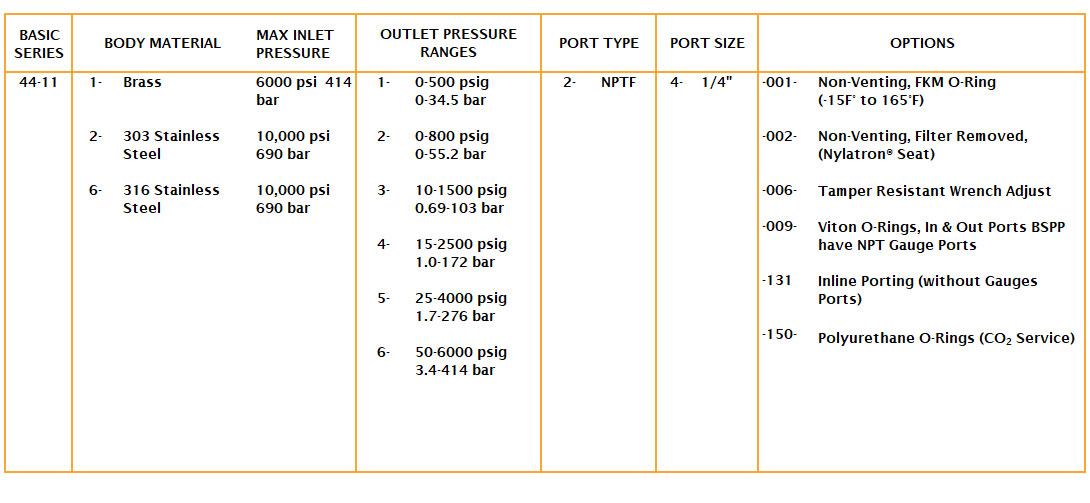

NOTE: Please refer to the 44-1100 Series Regulator Selection Tool page or the Tescom datasheet on the Resources tab to validate regulator selection.

NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.
