TESCOM 44-1100 Series Regulator Selection Tool

Only %1 left

SKU

44-1100

As low as $798.00

Body Material

Outlet Pressure Range

Choose your Port Size and Type

Choose your Port Size

Optional Modification

Qty

Eligible for Free Shipping Over $125

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

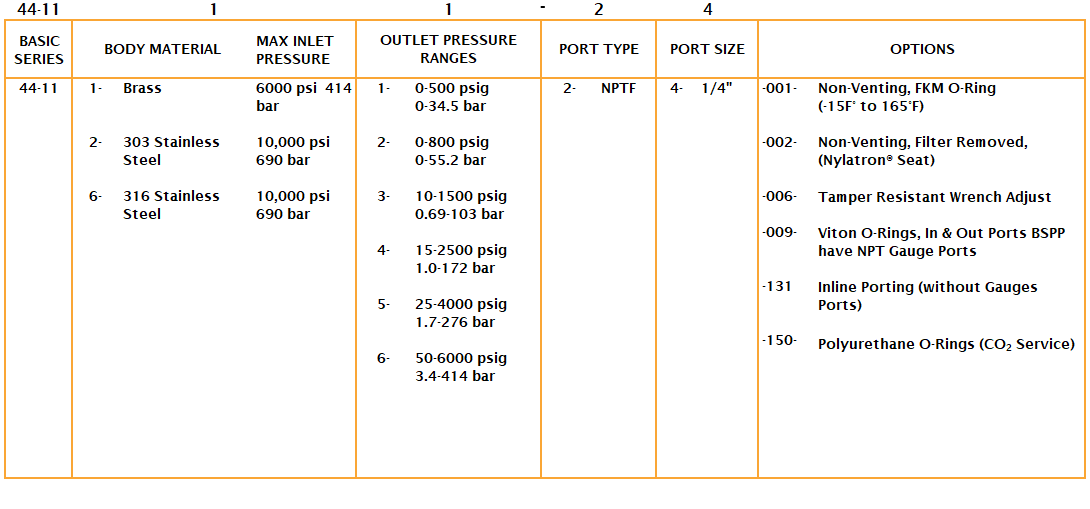

	Ordering Parameters Applications Ground support equipment (GSE) Support pressure panels Aircraft charging carts Calibration equipment R & D laboratories Features Removable valve assembly module permits easy repair Excellent sensitivity through a wide range of pressure settings Piston style sensor offers extra safety and reliability Unbalanced stem assists positive shut-off Inlet and outlet gauge ports standard Venting is standard Regulator vents to zero psig/bar in all pressure ranges Specifications Design Proof Pressure: 150% of maximum rated inlet Leakage: Bubble-tight Operating Temperature: -30⁰F to +140⁰ F (-34⁰ C to +60⁰ C) Flow Capacity: Cv = .06 Maximum Operating Torque: 35 in.-lb. (3.95 Nm) Media Contact Materials: Main Valve Seat: Polyimide (Vespel®) Vent Valve Seat: PCTFE O-Rings: Nitrile, Buna-N Back-up Rings: PTFE Remaining Parts: 300 series stainless steel Cleaning: CGA 4.1 and ASTM G93 Weight: 4.8 lbs. / 2.2 kg CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert. NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com. Vespel® and Teflon® are registered trademarks of E.I du Pont de Nemours and Company. Nylatron® is a registered trademark of the Mitsubishi Chemical Advanced Materials Group.

Information

TESCOM 44-1100 Series high pressure, low flow venting regulator offers a piston sensed design, control pressures of 0 - 6,000 psig / 0- 414 bar, a low torque setting and large hand knob. Multiple pressure range kits are available.
