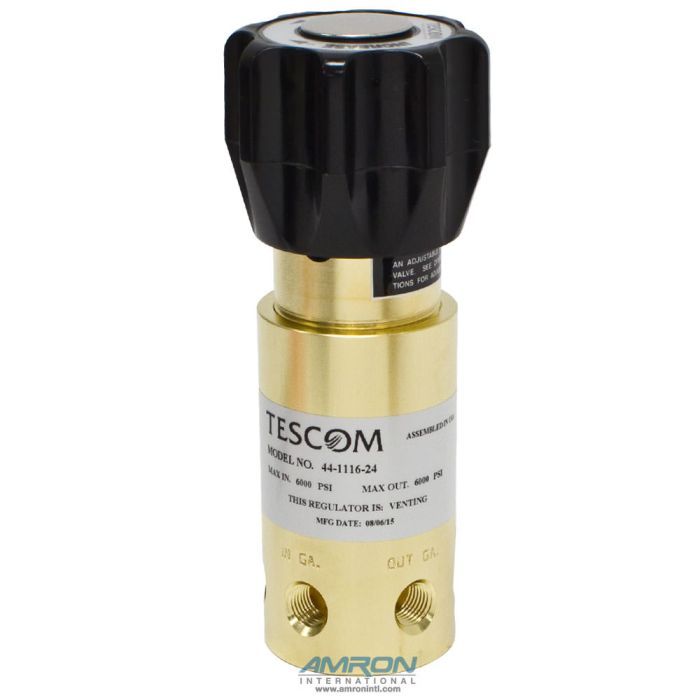

TESCOM Pressure Reducing Regulator Brass, Inlet 6000 PSI, Outlet 50-6000 PSIG, 1/4 In. NPTF

• Body Material: Brass
• Max Inlet Pressure: 6000 psi/414 bar
• Outlet Pressure Range: 50-6000 psig/3.4-414 bar
• Port Size: 1/4 in. NPTF
• Gauge Ports: Inlet and outlet are standard
• Design Proof Pressure: 150% of maximum rated inlet
• Leakage: Bubble-tight
• Operating Temperature: -30°F to +140°F (-3°CC to +6°C))
• Flow Capacity: Cv = .06
• Maximum Operating Torque: 35 in.-lb. (3.95 Nm)
• Media Contact Materials:
  • Main Valve Seat: Polyimide (Vespel®)
  • Vent Valve Seat: PCTFE
  • Filter - Brass Body: Bronze
  • O-Rings: Nitrile, Buna-N
  • Back-up Rings: PTFE
  • Remaining Parts: 300 series stainless steel
• Cleaning: CGA 4.1 and ASTM G93
• Weight: 4.8 lbs. / 2.2 kg

CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.

NOTE: Please refer to the 44-1100 Series Regulator Selection Tool page or the Tescom datasheet on the Resources tab to validate regulator selection.

NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.

Vespel® and Teflon® are registered trademarks of E.I du Pont de Nemours and Company. Nylatron® is a registered trademark of the Mitsubishi Chemical Advanced Materials Group.
