TESCOM Pressure Reducing Regulator 303 SS, Inlet 10000 PSI, Outlet 50-6,000 PSIG, 1/4 in. NPTF, Non-Venting, FKM O-Ring, -15°F to 165°F

Name: TESCOM Pressure Reducing Regulator 303 SS, Inlet 10000 PSI, Outlet 50-6,000 PSIG, 1/4 in. NPTF, Non-Venting, FKM O-Ring, -15°F to 165°F
Brand: TESCOM
SKU: 44-1126-24-001
Price: 1008.00 USD
Availability: InStock

SKU

44-1126-24-001

$1,008.00

Tescom 44-1126-24-001 Pressure Reducing Regulator 303 SS, Inlet 10000 PSI, Outlet 50-6,000 PSIG, 1/4 in. NPTF, Non-Venting, FKM O-ring, -15°F to 165°F

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

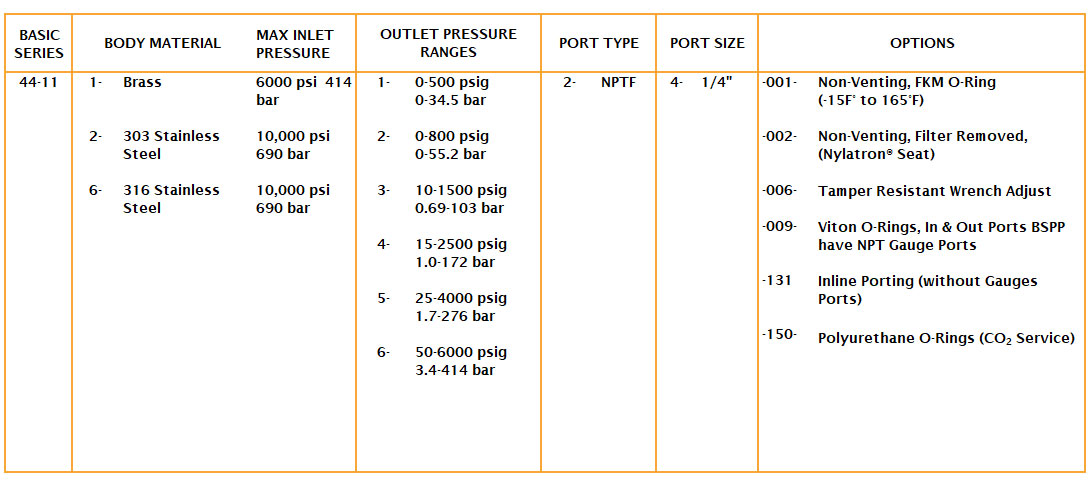

	Ordering Parameters Specifications Body Material: 303 stainless steel Max Inlet Pressure: 10000 psi/690 bar Outlet Pressure Range: 50-6000 psig/3.4-414 bar Port Size: 1/4 in. NPTF Modification -001: O-Rings - Viton-A®, Non-Venting, Cleaning Level II per Spec. 60295 Design Proof Pressure: 150% of maximum rated inlet Leakage: Bubble-tight Flow Capacity: Cv = .06 Maximum Operating Torque: 35 in.-lb. (3.95 Nm) Media Contact Materials: Main Valve Seat: Vespel® Seat Vent: None Filter - Stainless Steel Body: 300 series stainless steel Back-up Rings: Teflon™ O-Rings: Viton-A® Remaining Parts: 300 series stainless steel Cleaning: Level II per Spec. 60295 Weight: 4 3/4 lbs. CAUTION: This product is Level II cleaned per Spec 60295. System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert. NOTE: Please refer to the 44-1100 Series Regulator Selection Tool page or the Tescom datasheet on the Resources tab to validate regulator selection. NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com. Vespel® and Teflon® are registered trademarks of E.I du Pont de Nemours and Company. Nylatron® is a registered trademark of the Mitsubishi Chemical Advanced Materials Group.

Information

The TESCOM 44-1100 series high-pressure, low-flow venting regulator offers a piston-sensed design, control pressures of 0-6,000 psig / 0-414 bar, a low torque setting, and a large hand knob. Multiple pressure range kits are available.
