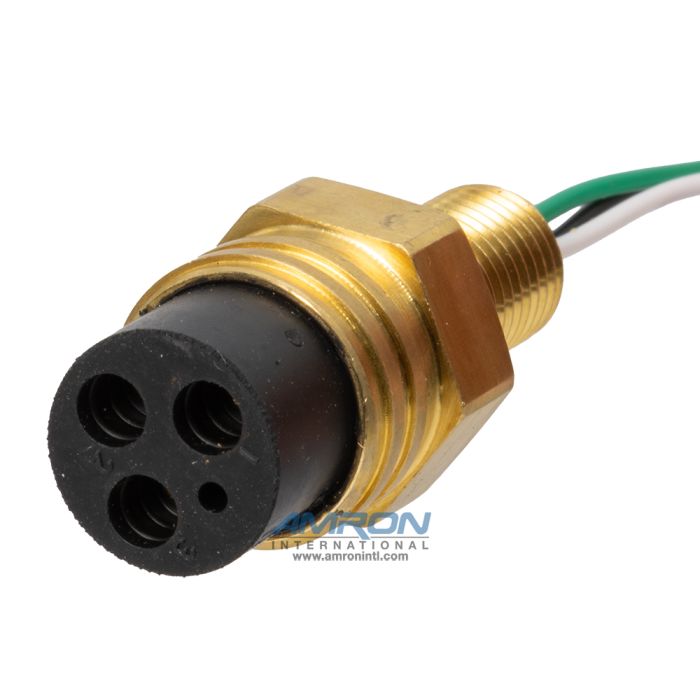

Approved Vendor Micro Wet Bulkhead Connector - 3-Way Female

Name: Approved Vendor Micro Wet Bulkhead Connector - 3-Way Female
Brand: Approved Vendor
SKU: MCBH3F
Price: 118.60 USD
Availability: InStock

SKU

MCBH3F

$118.60

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications Underwater vehicle systems Offshore oil and gas Renewable energy Defense Oceanographic Seismic Diving Video Features Micro wet-mateable connectors have a universal fit and can be customized to your specific project needs. Custom cable, wire leads, and bulkhead thread lengths available. Direct and splice molding capability. The lightweight, durable design allows for repeated mating cycles, extreme ocean depth, and varying temperatures. Individual pin-to-socket contacts contain premium molded o-ring seals for enhanced waterproof sealing capability. Inline and bulkhead options available. High-grade neoprene, polyurethane, metal shell, and custom materials available. High ocean depth rating. Specifications Pressure Rating: 10k PSI Voltage Rating: 300 V DC/AC rms Contact Amp. Rating: 19 A per contact (max 30 A per connector) Operating Temperature: 20⁰F - 140⁰F Insulation Resistance: >200 Mohm Contact Resistance: <0.01 Ω Wet Matings: >500 (open face rated) Temperature Rating (Water): 25-140⁰F, 4-60⁰C Temperature Rating (Air): -40-140⁰F, -40-60⁰C Storage Temperature: -40-140⁰F, -40-60⁰C Bulkhead Body Material: Brass, stainless steel, titanium, anodized aluminum Socket Material (Female): Gold-plated beryllium copper Location Pin: Stainless steel AISI 303 O-Rings: Nitrile Locking Sleeves: Acetal or stainless steel Bulkhead 7/16 Thread Wire Size & Insulation Material: 20 AWG PTFE
