Approved Vendor Micro Wet Bulkhead Connector - 3 Pin Male

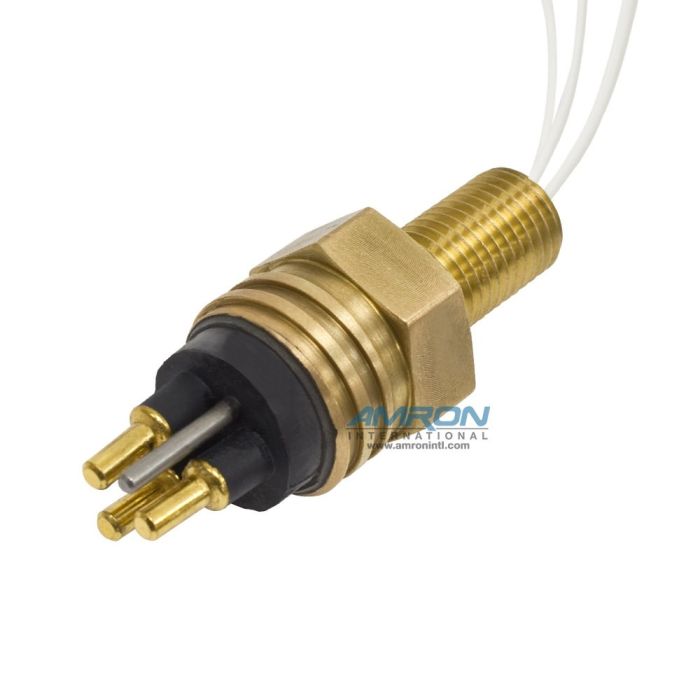

The MCBH3M 3-pin male micro wet bulkhead connector has a lightweight, durable design that allows for repeated mating cycles, extreme ocean depths, and varying temperatures.

Applications

• Underwater camera and lights (video system)
• Diver communications
• ROV systems
• Submersibles
• Towed-array cable systems
• Current meters
• Animal migration research
• Food processing equipment

Specifications

• Molded Body: Neoprene
• Bulkhead Body: Brass
• Contacts: Brass-gold plated
• Guide Pins: Stainless steel
• Bulkhead N & W: Brass
• O-Ring Material: Nitrile (formerly known as Buna-N)
• Locking Sleeve: Delrin
• In-Line Cable: 3 Pin: Neoprene #18 AWG (SO cable)
• In-Line Cable Length: 24 in. (60 cm)
• Hook-Up Wire (BH) 3 Pin: Teflon #20 AWG
• Hook-Up Wire Length: 12 in. (30 cm)
• Open Face Pressure: 10,000 PSI (approx. 689 bar) optional and needs to be specified dummy cap recommended above 100 PSI
• Mated Pressure: 10,000 PSI (Approx. 689 bar)
• Voltage Rating 3 Pin: 600 VDC
• Current Rating: 6 amps per contact
• Insulation Resistance: >200 Megohms @ 300 VDC
• Air Mate: >1,000 Cycles
• Underwater Mate: >500
• Operating Temperature: 25° To 140°F (-4° To 60°C)
• Mounting Torque: 85 in.-lb.* in dry stainless 1/2 in. long female threads
• Mates with: MCIL3F
• Dummy Connector Mate: MCDC3F
• Connector Pins: 3
• SAE Thread: 7/16-20 UNF-2A
• Socket Length: 1.10 in.
• Thread Length: .75 in.
• O-ring: 2-014

Note: Hex Nut with washer sold separately - P/N: N-W-S002-BRASS

DISCLAIMER NOTICE: Amron reserves the right to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.
