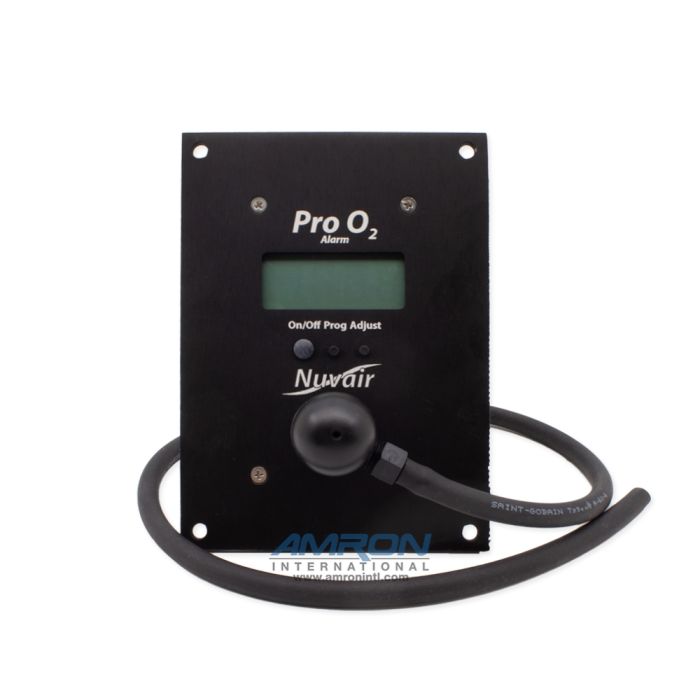

Nuvair PRO O2 ALARM ANALYZER; PANEL MOUNT; 12V DIN RAIL POWER

Features:

• Fast response
• Made to test breathing gases
• Easy to operate
• Reliable
• Accurate
• Long-life electrochemical sensor
• Automatic calibration
• On/off switch
• 4-20 mA analog output for external devices
• Capable of shutting down compressor at set alarm
• Display range of 0.0 - 100%
• Low battery warning indicator

Specifications:

• Flow rate: 0.5 - 2 L/min
• Resolution: ±.1% oxygen
• Repeatability: ±1% Volume O2 @ 100% O2 (applied for 5 min)
• Linearity: ±1% over full scale if sensor well calibrated and at constant temperature, pressure and gas flow
• Sensor type: Electrochemical
• Expected sensor life: Up to 48 months under normal operating conditions in air
• Range: 0 - 100% oxygen
• Alarms: Two user-programmable audible and visual alarms
• Response time: <15 seconds for 90% response; <25 seconds for 97% response
• Operating temperature: 41° to 104°F (5° to 40°C)
• Operating humidity: 0 to 95% rh, non-condensing
• Storage temperature: 5° to 122° F (-15° to 50° C)
• Power: 12 V DIN rail
• Dimensions: (L x W x H) 4 in. x 2 in. x 5.5 in. (10.2 x 5 x 14 cm)
• Weight: 9 oz (255 g)
• Replacement sensor: 9507M

Industries:

• Commercial diving
• Military diving
• Technical diving
• Advanced recreational diving

*All specifications are at ambient / sea level, 77°F (25°C) and are subject to change without notice.

Please Note: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Inaccurate gas analysis can lead to serious personal injury or death. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder or the flow from a regulator. To produce this flow, a flow restrictor and regulator may be required.
