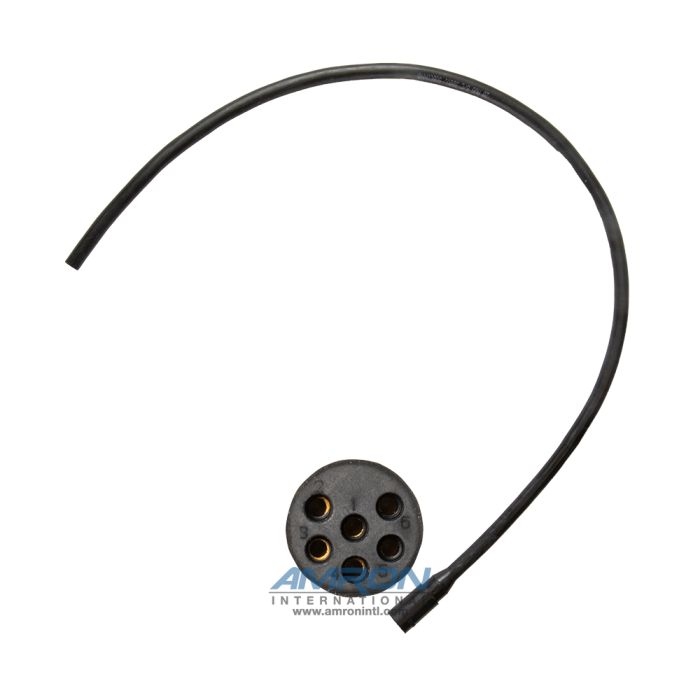

Approved Vendor Micro In-Line Connector - 6 Socket Female

Name: Approved Vendor Micro In-Line Connector - 6 Socket Female
Brand: Approved Vendor
SKU: MCIL6F
Price: 120.96 USD
Availability: InStock

SKU

MCIL6F

$120.96

MICRO WET INLINE CONNECTOR; FEMALE; 6 WAY; 2 FT 18/6 SO NEOPRENE CABLE

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications Underwater camera and lights (video system) Diver communications ROV systems Submersibles Specifications Molded Body: Neoprene Contacts: Brass-gold plated Open Face Pressure: 10,000 psi (approx. 689 bar) optional and needs to be specified dummy cap recommended above 100 psi. Mated Pressure: 10,000 psi (approx. 689 bar) Voltage Rating 6 Pin: 300 vdc Current Rating: 3 amps per contact Insulation Resistance: >200 megohms @ 300 vdc Contact Resistance: <0.01 ohms Air Mate: >1,000 cycles Underwater Mate: >500 Operating Temperature: 25° to 140°F (-4° to 60°C) Mates with: MCIL6M and MCBH6M Dummy Connector Mate: MCDC6M Connector Sockets: 6 DISCLAIMER NOTICE: Amron reserves the option to supply this style from multiple manufacturers. If you prefer a particular brand, please let your salesperson know before ordering.*

Information

Micro Series MCIL6F Female 6 Socket In-Line Connector allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area. This connector is wet-mateable therefore enabling connections to be made underwater, on-deck, or in any weather condition.

Applications:

Underwater camera and lights (video system)
Diver communications
ROV systems
Submersibles
Towed-array cable systems
Current meters
Animal migration research
Food processing equipment

Specifications:

Molded Body: Neoprene
Contacts: Brass-gold plated
In-Line Cable: 6 pin neoprene #20 awg
In-Line Cable Length: +/- 2 ft.
Open Face Pressure: 10,000 psi (approx. 689 bar) *optional and needs to be specified dummy cap recommended above 100 psi.
Mated Pressure: 10,000 psi (approx. 689 bar)
Voltage Rating 6 Pin: 300 vdc
Current Rating: 3 amps per contact
Insulation Resistance: >200 megohms @ 300 vdc
Contact Resistance: <0.01 ohms
Air Mate: >1,000 cycles
Underwater Mate: >500
Operating Temperature: 25° to 140°F (-4° to 60°C)
Mates with: MCIL6M and MCBH6M
Dummy Connector Mate: MCDC6M
Connector Sockets: 6
Length: 0.75 in.
Width: 0.62 in.

DISCLAIMER NOTICE: Amron reserves the right to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering.

The micro wet-matable MCIL6F Female 6 way In-Line Connector allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area than the IL-series.

Resources

FAQ's

Is it possible to re-connect underwater at a depth of 100 meters?

Technically you can mate this connector at full depth rating. However, divers can only dive a certain depth, unless you have an ROV to mate it much deeper. The difficult part is to de-mate the connector underwater for the fact that the pressure keeps the connector mated and virtually impossible for a diver to de-mate. When connected and you try to pull apart underwater, this creates a vacuum which holds the connector mated unless you have enough torque to pull apart. The connector can re-connect at 100M.
