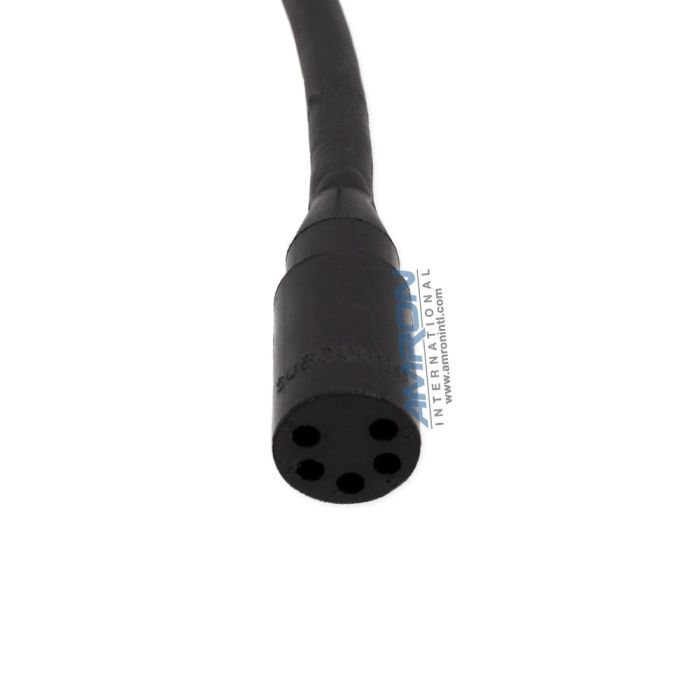

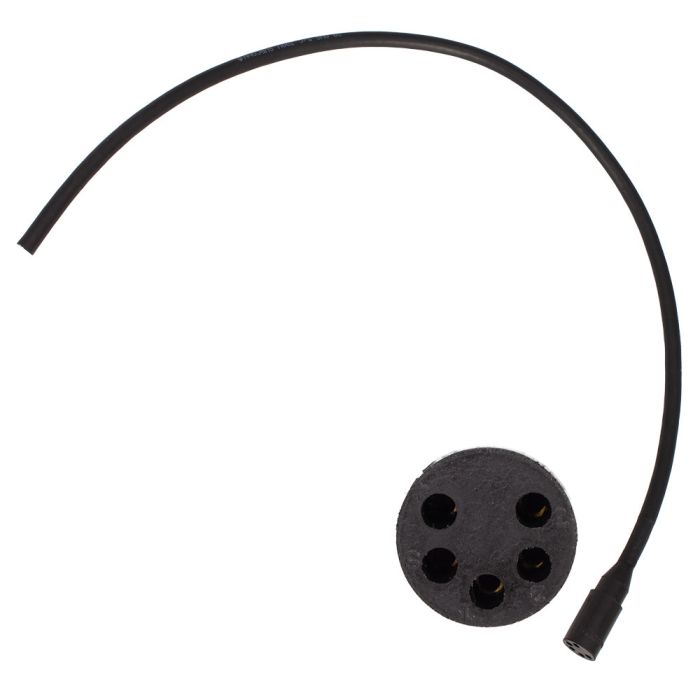

Approved Vendor Micro Wet In-Line Connector - 5 Socket Female Plug

Features:

• 5 pin female wet-pluggable micro-connector and 2 ft. cable.
• Mates with MCIL5M in-line and MCBH5M bulkhead connector.
• Connector must be lubricated prior to mating.

Specifications:

• Cable Length: +/- 2 ft.
• Cable: Chloroprene jacket 20 AWG
• Molded Body: Chloroprene rubber
• Contacts (Female): Gold plated brass
• Locking Sleeve (Optional): Use with MCDLS-F & MCDLS-M
• Qualified Pressure Tested: 11,600 psi (800 bar)
• Voltage Rating: 300 VDC
• Insulation Resistance: > 200 MOhm
• Contact Resistance: < 0.01 Ohm
• Underwater Mate: > 500 cycles (open face rated)
• Temperature Rating (Water): 25° to 140°F (-4° to 60°C)
• Ampacity: 5 amps per contact (20 amps per connector)

DISCLAIMER NOTICE: Amron reserves the right to supply this style from multiple manufacturers.
