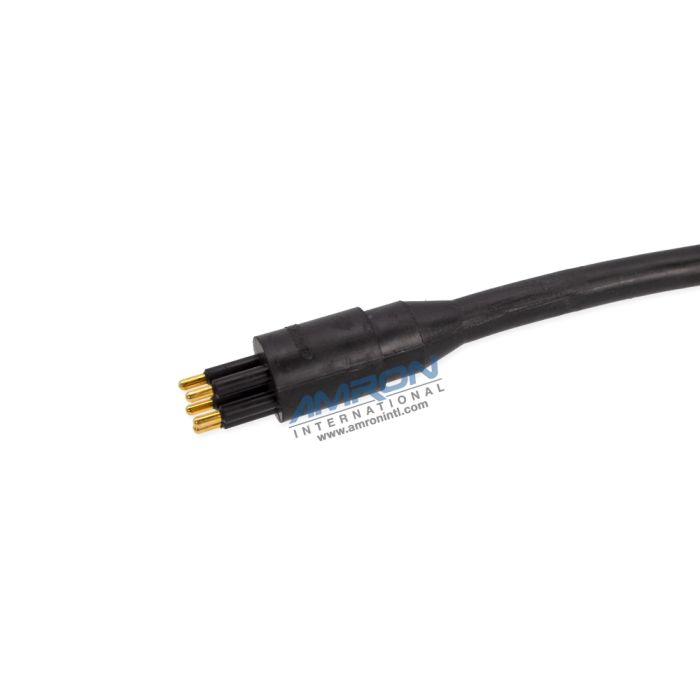

Approved Vendor Micro Wet In-Line Connector with 5 Pin Male Plug - 20 AWG Cable Pigtail

Name: Approved Vendor Micro Wet In-Line Connector with 5 Pin Male Plug - 20 AWG Cable Pigtail
Brand: Approved Vendor
SKU: MCIL5M
Price: 111.80 USD
Availability: InStock

SKU

MCIL5M

$111.80

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features 5-pin male wet-pluggable micro-connector and 2 ft. cable Mates with MCIL5F inline and MCBH5F bulkhead connector Connector must be lubricated prior to mating Specifications Cable Length: +/- 2 ft. Cable: Chloroprene jacket 20 AWG Molded Body: Chloroprene rubber Contacts (Male): Gold-plated beryllium copper Locking Sleeve (Optional): Use with MCDLS-F & MCDLS-M Qualified Pressure Tested: 11,600 PSI (800 bar) Voltage Rating: 300 VDC Insulation Resistance: > 200 MΩ Contact Resistance: < 0.01 Ω Underwater Mate: > 500 cycles (open face rated) Temperature Rating (Water): 25° to 140°F (-4° to 60°C) 5 amps per contact (20 amps per connector) DISCLAIMER NOTICE: Amron reserves the option to supply this style from multiple manufacturers.
