Approved Vendor Micro Wet Bulkhead Connector - 6 Pin Male

SKU

MCBH6M

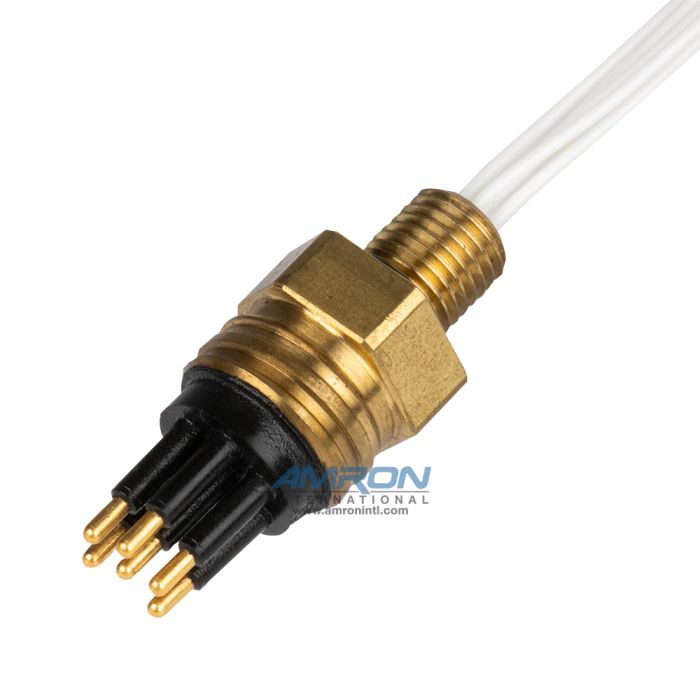

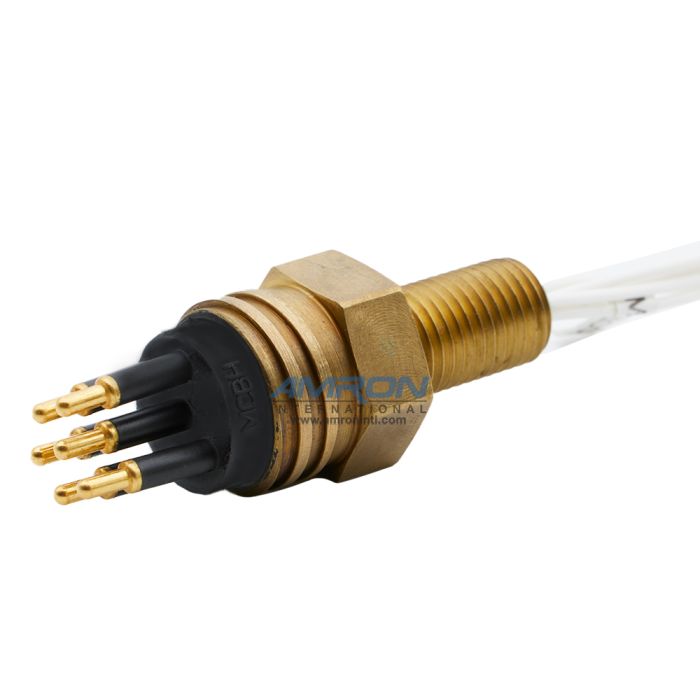

Micro Wet Series MCBH6M Male Bulkhead Connector with 6 Pins and a 13 in. long Teflon Wire Pigtail. The Micro Wet Series allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area.

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
Contact us for a quote: Call (877) 462-6700 or email sales@amronintl.com.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Micro wet series MCBH6M male bulkhead connector with 6 pins and a 13 in. long teflon wire pigtail. The micro wet series allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area. DISCLAIMER NOTICE: Amron reserves the right to supply this style from multiple manufacturers. If you prefer a particular manufacturer, please let your salesperson know before ordering. Applications Underwater camera and lights (video system) Diver communications ROV systems Submersibles Towed-array cable systems Current meters Animal migration research Food processing equipment Specifications Molded Body: Neoprene Bulkhead Body: Brass Contacts: Brass-gold plated Guide Pins: Stainless steel Bulkhead N & W: Brass O-Ring Material: Nitrile (formerly known as buna n) Locking Sleeve: Delrin In-Line Cable: 6 pin: neoprene #20 AWG In-Line Cable Length: 24 in. (60 cm) Hook-Up Wire (BH) 6 pin: teflon #22 AWG Hook-Up Wire Length: 13 in. (30 cm) Open Face Pressure: 10,000 PSI (approx. 689 bar) optional and needs to be specified dummy cap recommended above 100 PSI Mated Pressure: 10,000 PSI (approx. 689 bar) Voltage Rating 6 Pin: 300 VDC Current Rating: 3 amps per contact Insulation Resistance: >200 megohms @ 300 VDC Contact Resistance: Air Mate: >1,000 cycles Underwater Mate: >500 Operating Temperature: 25° to 140°F (-4° to 60°C) Mounting Torque: 85 in.-lb.* in dry stainless 1/2 in. long female threads Mates With: MCIL6F Dummy Connector Mate: MCDC6F Connector Pins: 6 SAE Thread: 7/16-20 UNF-2A Socket Length: 1.10 in. Thread Length: .75 in. O-ring: 2-014 Note: Hex nut with washer sold separately.

Information

Micro wet series MCBH6M male bulkhead connector with 6 pins and a 13 in. long teflon wire pigtail. The micro wet series allows for smaller through ports in a pressure vessel and a greater density of conductors in a compact area.
