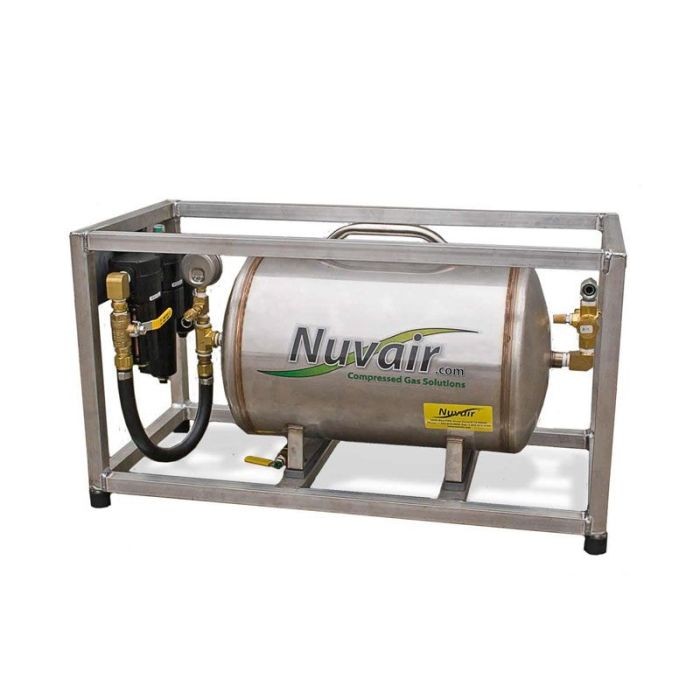

Nuvair Framed 30 Gallon Horizontal ASME Low Pressure Volume Stainless Steel Tank with Filtration

Name: Nuvair Framed 30 Gallon Horizontal ASME Low Pressure Volume Stainless Steel Tank with Filtration
Brand: Nuvair
SKU: NUV-7082-SS
Price: 4655.00 USD
Availability: InStock

SKU

NUV-7082-SS

List Price: $4,900.00

$4,655.00

Nuvair's Framed 30 Gallon Horizontal ASME Low Pressure Volume Stainless Steel Tank with Filtration NUV-7082-SS work together with low pressure compressors and are designed to your specific requirements. This tank (air receiver) and filtration system have several purposes: the removal of moisture, to decrease the wear and tear of your compressor by reducing cycling and to provide a short back-up supply of air (should the compressor be shut off).

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.
Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: Provides a short backup supply of air should the compressor be shut off. Decrease the wear and tear of your compressor by reducing cycling. Allows more moisture to drop out of the air before filtration. More unload time and less compressor cycling. ASME pressure relief, drain and ball valve. 6061 aluminum square tube frame. Ergonomic lifting handles. Specifications: Outlet Manifolds: 1/2 in. brass ball valves ASME Tanks Pressure Relief Valve: 1/4 in. set at 200 psi (14 bar) Tank Frame: 1.5 in. 6061 marine grade aluminum stock Inlet and Brass Ball Valves: #10 SAE brass fitting Drain Valve: 1/4 in. brass ball valve standard. Dimensions: 44.3 in. L x 22 in. W x 28 in. H Working Pressure: 140 psi (9.7 bar) Horizontal Weight: 77 lbs. Tank Capacity: 30 gallons
