The Ax60+ is a modular gas safety system capable of measuring CO2, O2 and/or CO.
You can build the system to your requirements, in-order to meet your specific needs and legislative safety requirements.
The bespoke modular setup provides the flexibility to integrate up to four different sensors (per setup) for the simultaneous measurement of various gases, bespoke to your application. (Sensors, DOM, and alarms are sold separately).
The Ax60+ is a time served, trusted gas safety monitor that can be used across many different industries that require accurate gas monitoring to keep your people safe.
Central Display Unit for the Ax60+ is required for all builds (except when using an Ax60+ Kiosk, which is a standalone sensor).
Specifically engineered for use in environments where accurate gas analysis is critical.
Clearly displays the information you need and helps to ensure the safety of personnel by continuously monitoring the levels of various gases.
Intuitive and user-friendly interface, making it easy for operators to navigate and access critical information.
Clear display provides real-time data on gas concentrations, allowing for quick and informed decision-making.
The LCD (Liquid crystal display) screen is used to display the readings for each sensor, as well as any fault codes that may appear when the sensor is in fault.

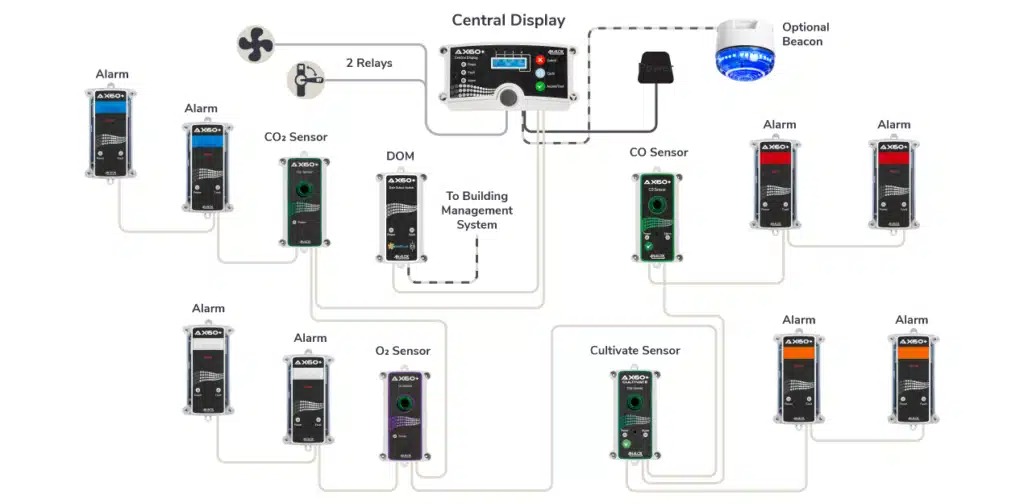

Within the central display unit, you can attach a beacon, a DOM (Data Output Module) unit and up to 2 relays on one system (sold separately).
User can access the technical menu, this is where you can customize your Ax60+ to your own needs.
You can calibrate your sensors to make it more user maintainable.
The Ax60+ also comes with a universal power supply, making it adaptable to any situation.
Item Number
Connection Method
Power Supply
Analox Cable
AX60CDSNXE
Direct Connect
Flying Leads
No Cable
AX60CDSNYA
Hard Wired
Flying Leads
No Cable
AX60CUQYXE
Quick Connect
Unit PSU
With Cable
AX60CUSYXE
Direct Connect
Unit PSU
With Cable

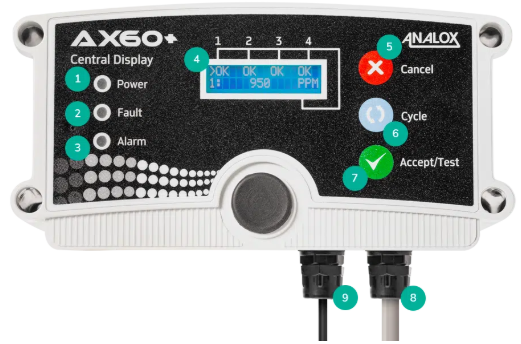

Ax60+ Central Display
Power indicator
Fault indicator
Alarm indicator
LCD display
Cancel button
Cycle button
Accept / test button
Cable gland power input (Does not come pre-wired)
Cable gland to sensor (Comes pre-wired with 2-meter cable)
Specifications
This unit acts as a main panel for up to 4 sensors (CO2, O2 and CO and Cultivate) (sold separately).
Within the central display unit, you can attach a beacon, a DOM (Data Output Module) unit and up to 2 relays on one system (sold separately).
Warm-up Time: 40 seconds
Operating Temperature Range: +23°F to +122°F / 5°C to +50°C
Warranty: 5 years electronics
Display: LCD dot matrix (backlit)
Relays: 2 x high-powered configurable relays rated for 250V AC/ 30V DC, 3A max
Maximum Power Consumption: <24 W
Power Supply Accepts Inputs From: 100-240V ~ 1.5A through the transformer or 24VDC direct power
IP Rating: IP54
Dimensions
W: 6.9 in. / 175 mm
H: 4 in. / 106 mm
D: 2.6 in. / 67 mm
Optional Extras: 24V supply available for optional external beacon
Please Note: The Analox Ax60+ Central Display is just one part of the Ax60+ modular system. Ax60+ sensors, DOM, alarms, relays and beacons are sold separately.
The Central Display Unit for the Ax60+ is required for all builds (except when using an Ax60+ Kiosk, which is a standalone sensor).
The unit has been specifically engineered for use in environments where accurate gas analysis is critical. The Ax60+ CDU clearly displays the information you need and helps to ensure the safety of personnel by continuously monitoring the levels of various gases.
The Ax60+ features an intuitive and user-friendly interface, making it easy for operators to navigate and access critical information. The clear display provides real-time data on gas concentrations, allowing for quick and informed decision-making.
This unit acts as a main panel for up to 4 sensors (CO2, O2 and CO and Cultivate). The LCD (Liquid crystal display) screen is used to display the readings for each sensor, as well as any fault codes that may appear when the sensor is in fault. Also within the central display unit you can attach a beacon, a DOM (Data Output Module) unit and up to 2 relays on one system.
From the Central Display Unit, the user can access the technical menu, this is where you can customize your Ax60+ to your own needs, and also from these same menus you can calibrate your sensors to make it more user maintainable. The Ax60+ also comes with a universal power supply, making it adaptable to any situation.
