Analox Ax60+ Carbon Monoxide (CO) Sensor Unit

Only %1 left

SKU

AX60SDXNK

As low as $1,069.50

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

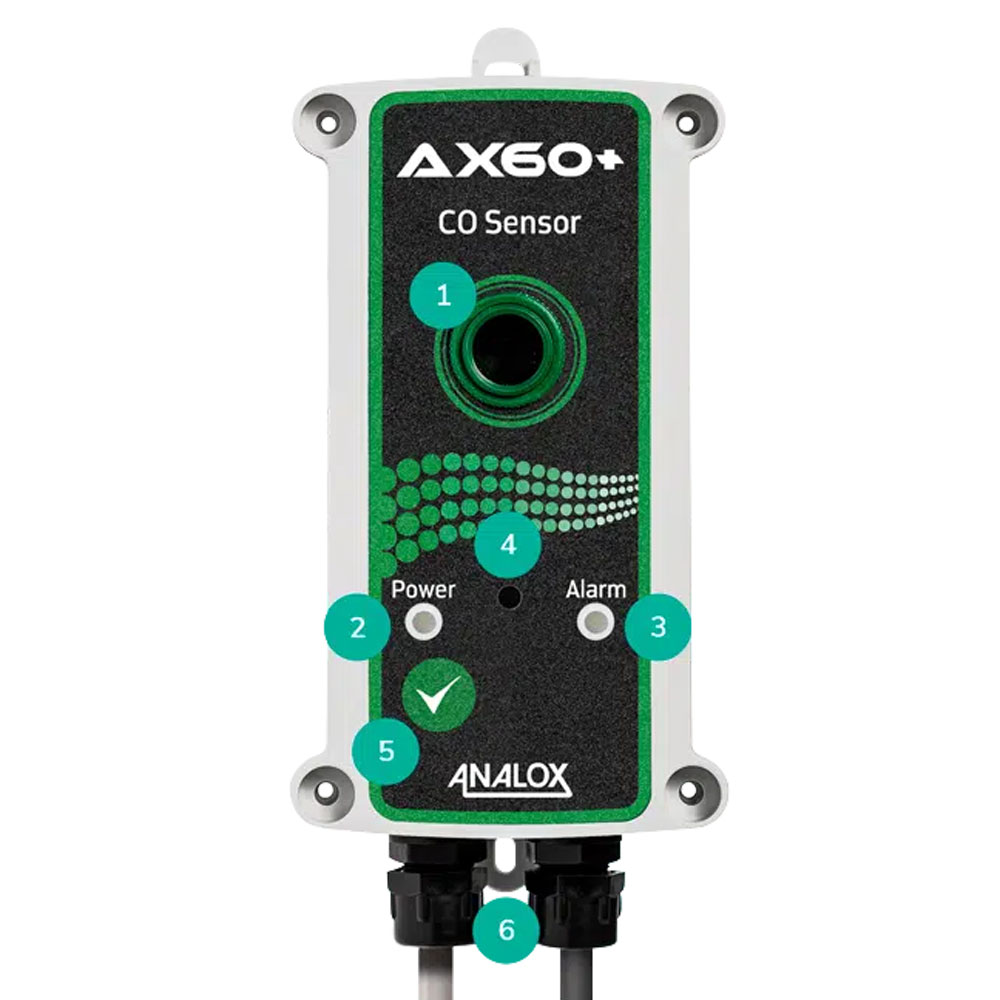

	Features The Ax60+ CO benefits from the ability to operate as a single sensor and alarm or as part of a system of up to 4 sensors. Ambient CO monitoring. Online CO monitoring. Can be used with Nitrogen (N2) background gasses or, with calibration, can be used with Helium (He) background gases. Has up to 3 user configurable alarms. Can operate as a stand-alone sensor or as part of a larger system. Compatible with the rest of the Ax60+ range. Protect staff in plant rooms, parking garages etc. from carbon monoxide poisoning. Protect divers from contaminated air cylinders through compressor servicing issues or contaminated compressor inlet. Suitable for multiple applications such as sport diving, fire safety, and ambient air monitoring. To give advance warning of increasing CO levels and to make the product suitable for multiple applications. Scales to meet your budget and your application. Systems can meet your application needs, CO2 sensor, O2 sensor or CO in a simple and expandable format. Ax60+ CO Sensor Unit Sensor Power Indicator Alarm Indicator Sounder Hole Accept Button Cable Glands Specifications Gas Detected: Carbon Monoxide (CO) Sensor Type: Electrochemical Number of Outputs: Single sensor configuration, up to 4 alarm units System level up to 8 alarm units with two relay outputs at the central display unit With the DOM connected, there are 4 * 4-20mA analog outputs and MODBUS RTU for real time digital telemetry tracking Connectivity: Quick connect sensor units supplied with IP68 moisture resistant couplers CO Range: 0 to 25 ppm CO Number of Inputs: Ax60+ systems allow for up to 4 sensor units Atmospheric Pressure: 800 to 1200 mbara Accuracy: <±1ppm CO, ±5% of reading (at constant temperature and pressure) Alarm Levels: By default, these are set to: AL1: 3 ppm AL2: 5 ppm AL3: 10 ppm Response Time (T90): <90 seconds Operating Temperature: 0 to 40°C Temperature Effect: 0.04% of reading /°C Mode of Measurement: The product can be used to measure ambient CO in LP air (1 to 3 barg) Background Gas: The Ax60+ CO is available for use both in helium and nitrogen background applications. User Interface: Sensor unit has integral alarm sounder and local acknowledge button to warn users of issues in alarm conditions. Dimensions W: 3 in. / 72 mm H: 5.1 in. / 132 mm D: 2 in. / 52 mm IP rating: IP55 Power Supply: 100-240V ~ 1.5A through the transformer or 24VDC direct power Mounting: Wall mounted with quick connect and direct connect options Certifications: EN50270 EN61000-6-3 EN/IEC 60101-1

Information

The Ax60+ CO protects users in plant rooms, parking garages and anywhere that carbon monoxide can collect. The Ax60+ CO also can be used for online cylinder filling, to protect divers from compressed air contaminated with carbon monoxide related to compressor maintenance or contamination at the compressor inlet.

The Ax60+ CO benefits from the ability to operate as a single sensor and alarm or as part of a system of up to 4 sensors. Each system can also be composed of Ax60+: O2 sensors and Ax60+ CO2 sensors, so it can fulfill multiple application needs.
