The Ax60+ is a modular gas safety system capable of measuring CO2, O2 and/or CO.
Highly customizable system that allows you to build the system to your requirements, in-order to meet your specific needs and legislative safety requirements.
This modular setup provides the flexibility to integrate up to four different sensors (per setup) for the simultaneous measurement of various gases, bespoke to your application.
The Ax60+ is a time served, trusted gas safety monitor that can be used across many different industries that require accurate gas monitoring to keep your people safe.
CO2 Sensor
Monitoring for CO2 (carbon dioxide) contamination in a workspace is as vital as monitoring simple O2 levels and often for the same reasons.
The Analox Ax60+ uses state-of-the-art Nondispersive Infrared (NDIR) technology to monitor for CO2. This process uses infrared light to determine the intensity and level of CO2 in a given workspace.
Ax60+ Central Display
The Central Display Unit for the Ax60+ is required for all builds (except when using an Ax60+ Kiosk, which is a standalone sensor).
The unit has been specifically engineered for use in environments where accurate gas analysis is critical. The Ax60+ CDU clearly displays the information you need and helps to ensure the safety of personnel by continuously monitoring the levels of various gasses.
The Ax60+ features an intuitive and user-friendly interface, making it easy for operators to navigate and access critical information. The clear display provides real-time data on gas concentrations, allowing for quick and informed decision-making.
This unit acts as a main panel for up to 4 sensors (CO2, O2 and CO and Cultivate). The LCD (Liquid crystal display) screen is used to display the readings for each sensor, as well as any fault codes that may appear when the sensor is in fault. Also within the central display unit you can attach a beacon, a DOM (Data Output Module) unit and up to 2 relays on one system.
From the Central Display Unit, the user can access the technical menu, this is where you can customize your Ax60+ to your own needs, and also from these same menus you can calibrate your sensors to make it more user maintainable. The Ax60+ also comes with a universal power supply, making it adaptable to any situation.

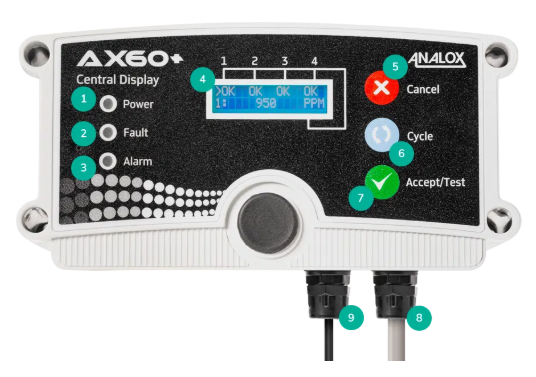

Ax60+ Central Display
Power indicator
Fault indicator
Alarm indicator
LCD display
Cancel button
Cycle button
Accept / test button
Cable gland power input (Does not come pre-wired)
Cable gland to sensor (Comes pre-wired with 2-meter cable)
Ax60+ Alarm Units
The Ax60+ Alarm Units are integral components of a comprehensive gas detection system, working together with the Central Display and Sensor units to enhance safety in environments where accurate gas monitoring is crucial. These alarm units are specifically designed to provide immediate and unmistakable alerts in the event of abnormal gas concentrations, ensuring a swift response to potential hazards.
The Ax60+ Alarm Units are equipped with both audible alarms and highly visible LED indicators. This dual-alert system ensures that operators are promptly notified of any deviations from acceptable gas levels, even in noisy or busy industrial settings.

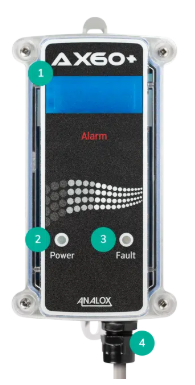

Ax60+ Alarm Unit
Strobe light (Available in 4 colors: blue, red, amber and white)
Power indicator
Fault indicator
Cable gland (Pre-wired with 2 m cable with a blue RJ45 connector.)
Specifications
Ax60+ CO2 Sensor:
Gas Detected: Carbon Dioxide (CO2)
Sensor Technology: Nondispersive Infrared
Range: 0% to 5% (0-50,000 ppm)
Default Alarm Set Points:
USA regulations (OSHA, NBIC, NFPA and IFC):
TWA - 5,000 ppm (0.5%)
AL1 - 5,000 ppm (0.5%)
AL2 - 15,000 ppm (1.5%)
AL3 - 30,000 ppm (3%)
International/European Regulations (EH40):
TWA - 5,000 ppm (0.5%)
AL1 - 15,000 ppm (1.5%)
CO2 - 30,000 ppm (3%)
Legislation Met:
In the US: OSHA, NBIC, NFPA and IFC standards
In Europe: EH40 standard
The Ax60+ is also certified by UL, C and UKCA.
Warm Up Time: 40 seconds
Response Time (T90): <30 seconds
IP Rating: IP55
Dimensions
W: 3 in. / 72 mm
H: 5.1 in. / 132 mm
D: 2 in. / 52 mm
Accuracy:
Min 0% of alarm set point
Max 5% of alarm set point
Temperature Sensitivity: 50 ppm/°C
Operating Temperature: -5°C to +50°C
LED Indicators Green = Power
Red = Alarm
Warranty: 5 years for both sensor and electronics
Ax60+ Central Display:
Warm-up Time: 40 seconds
Operating Temperature Range: +23°F to +122°F / 5°C to +50°C
Warranty: 5 years electronics
Display: LCD dot matrix (backlit)
Relays: 2 x high-powered configurable relays rated for 250V AC/ 30V DC, 3A max
Maximum Power Consumption: <24 W
Power Supply Accepts Inputs From: 100-240V ~ 1.5A through the transformer or 24VDC direct power
IP Rating: IP54
Dimensions
W: 6.9 in. / 175 mm
H: 4 in. / 106 mm
D: 2.6 in. / 67 mm
Optional Extras: 24V supply available for optional external beacon
Ax60+ Alarm Unit:
Strobe: White LED strobe > 100 cd (optional blue, red & amber filters)
The Ax60+ is a modular gas safety system capable of measuring CO2, O2 and/or CO. You can build the system to your requirements, in-order to meet your specific needs and legislative safety requirements. The bespoke modular setup provides the flexibility to integrate up to four different sensors (per setup) for the simultaneous measurement of various gases, bespoke to your application. The Ax60+ is a time served, trusted gas safety monitor that can be used across many different industries that require accurate gas monitoring to keep your people safe.
Ax60+ Sensor Options
The Ax60+ modular safety system is available with a multitude of different sensors to help keep you safe. There are currently sensors that measure CO2, O2, CO or you can add a combination of these sensors to measure multiple gasses all from the same Central Display Unit.
Analox offers 2 industry specific sensors:
The Ax60+ Cultivate which is a specialized CO2 safety sensor for indoor agriculture, encompassing vertical farming, greenhouses, indoor farms, indoor cannabis farms, and plant nurseries.
The Ax60+ Kiosk, which is a standalone version of the popular Ax60+ carbon dioxide (CO2) monitor. It is simple to wall mount in the area where carbon dioxide (CO2) is stored or piped.
If you would like to connect the Ax60+ system to your business management system, you can add a DOM (Data Output Module) to your system to connect everything together and act as a gateway between your Ax60+ and your BMS.
Built-in relays can activate ventilation or gas shut-off using the optional Solenoid Valve, which can automatically turn off the gas supply in alarm conditions.
CO2 Sensor
Monitoring for CO2 (carbon dioxide) contamination in a workspace is as vital as monitoring simple O2 levels and often for the same reasons. The Analox Ax60+ uses state-of-the-art Nondispersive Infrared (NDIR) technology to monitor for CO2. This process uses infrared light to determine the intensity and level of CO2 in a given workspace.
Ax60+ Central Display
The Central Display Unit for the Ax60+ is required for all builds (except when using an Ax60+ Kiosk which is a standalone sensor).
The unit has been specifically engineered for use in environments where accurate gas analysis is critical. The Ax60+ CDU clearly displays the information you need and helps to ensure the safety of personnel by continuously monitoring the levels of various gasses.
The Ax60+ features an intuitive and user-friendly interface, making it easy for operators to navigate and access critical information. The clear display provides real-time data on gas concentrations, allowing for quick and informed decision-making.
This unit acts as a main panel for up to 4 sensors (CO2, O2 and CO and Cultivate). The LCD (Liquid crystal display) screen is used to display the readings for each sensor, as well as any fault codes that may appear when the sensor is in fault. Also within the central display unit you can attach a beacon, a DOM (Data Output Module) unit and up to 2 relays on one system.
From the Central Display Unit, the user can access the technical menu, this is where you can customize your Ax60+ to your own needs, and also from these same menus you can calibrate your sensors to make it more user maintainable. The Ax60+ also comes with a universal power supply, making it adaptable to any situation.
Ax60+ Alarm Units
The Ax60+ Alarm Units are integral components of a comprehensive gas detection system, working together with the Central Display and Sensor units to enhance safety in environments where accurate gas monitoring is crucial. These alarm units are specifically designed to provide immediate and unmistakable alerts in the event of abnormal gas concentrations, ensuring a swift response to potential hazards.
The Ax60+ Alarm Units are equipped with both audible alarms and highly visible LED indicators. This dual-alert system ensures that operators are promptly notified of any deviations from acceptable gas levels, even in noisy or busy industrial settings.
