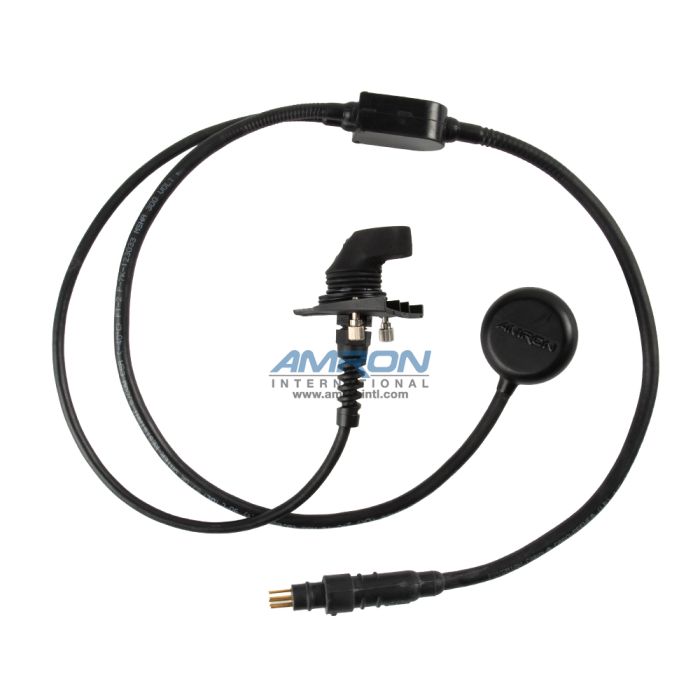

Amron Bone Conducting Earphone & Microphone Assembly w/ 4-Pin WP Connector Complete - Version A Wiring
Amron has reintroduced its AGA full face mask communications set that now includes a newly designed submersible bone phone for increased performance and durability.
The Amron International 1406A Bone Conducting Earphone and Microphone with 4-Pin WP Connector communications set is for use with the Interspiro AGA MK20 full face mask. The integrated 1406-2 bone conducting earphone can be held in place behind your ear or on your temple with a diving hood or headband. When paired with an Amron communicator, this AGA comm set offers superior sound quality and durability.
The assembly includes the newly designed, submersible 1406-2 bone phone earphone, a male 4-pin RMG waterproof connector, a splash-proof, integrated dynamic microphone assembly and an AGA mask mic plate. The assembly is wired as a Type A with pins 1 & 2 for microphone and pins 3 & 4 for earphone. For wiring details, please see the diagram in “Resources” section.
Amron’s 1406A bone conducting earphone and microphone assembly with 4-Pin WP connector comm set is approved for military use and is listed on the U.S. Navy ANU list.
The Amron 1406A bone conducting earphone and microphone with waterproof connector is a communications set for use with Interspiro AGA full face masks.
Features
Specifications
|
The Amron 1406A bone conducting earphone and microphone with waterproof connector is a communications set for use with Interspiro AGA full face masks. The assembly includes a submersible bone conducting earphone, a male 4-pin RMG waterproof connector, and a splashproof dynamic microphone assembly on an AGA mask mic plate.
The earphone is an Amron 1406-2 submersible bone conducting earphone. It is a solid-molded, waterproof earphone containing a sensitive bone-conducting transducer that provides clear diver comms. It can be held in place behind the ear or on the temple with a diving hood or headband. When paired with an Amron communicator, this waterproof earphone offers superior sound quality and durability. This same earphone is also integrated with other Amron comm sets such as the 1406A-03 and BP-44MM-03.
The microphone consists of an AGA mic plate assembly wired to an Amron 1408 milspec M-101/AIC dynamic microphone with an Amron 1414 splashproof boot.
A 4-pin male RMG-4-MP Marsh Marine connector is provided for mating with the female RMG-4-FS connectors used on most umbilical communications cables. This is a neoprene molded connector with gold plated contacts and an 18 AWG SJOOW cable rated to 300 VDC.
The assembly is wired as a Version A comm set with pins 1 & 2 for microphone and pins 3 & 4 for earphone. For wiring details, please see the diagram attachment on the resources tab.
Amron’s 1406A bone conducting earphone and microphone comm set is approved for military use and is listed on the U.S. Navy ANU list.
ATTACHMENTS
FAQ's
2
The easiest location to secure the Bone Phone to the AGA mask is to place the bone phone under one of the head harness straps toward the center area of the harness. Place the Bone Phone between your head and the head harness and tighten down the 5 straps of the head harness.
No, we use two protective rubber covers to prevent any water from entering and damaging the microphone. If you happen to damage the protective rubber cover and need to purchase replacements please order part number 1414.
The 1406B Comm Assembly has a red ban around the SO cable to identify it as a vesion "B" Comm Assembly.
