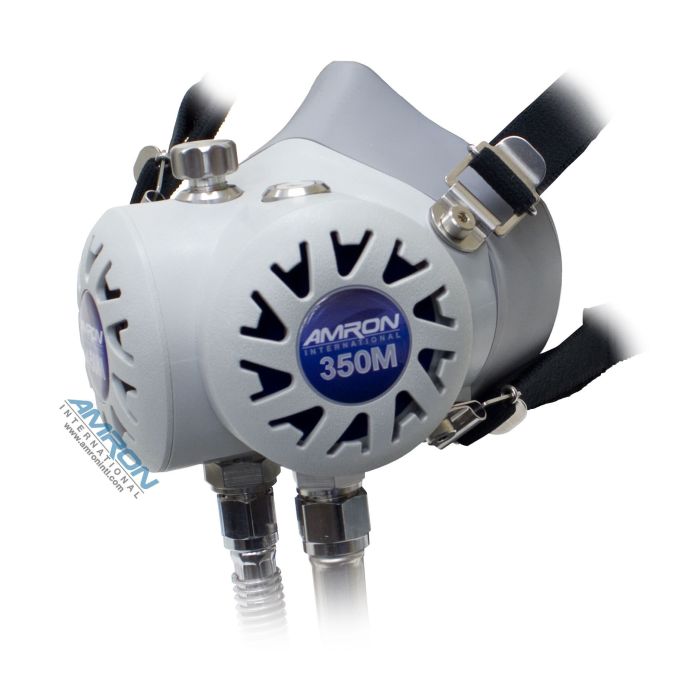

Amron BIBS Mask with Lightweight Flexible Exhaust Hose

Amron International's new 350M-02 BIBS mask is the perfect combination of performance, durability and comfort. Unlike other BIBS on the market today, Amron's 350M-02 BIBS Mask is built to withstand the extreme conditions found in a saturation diving environment.

The Amron 350M-02 BIBS Mask demand regulator is fully adjustable to allow for easy breathing from surface decompression all the way down to 350 meters pressurized depth. Diver's comfort was a major consideration so the 350M-02 BIBS Mask comes standard with a comfortable oral nasal and a supportive head strap.

For chamber depths over 99 feet of seawater, a secondary vacuum regulator must be installed (see Tescom Regulator (Part Number: 26-2912-282A). A hull-stop valve should be an integral part of the hyperbaric system; used as a safety device to shut down the vacuum should a pressure loss occur. The vacuum regulator allows the exhaled gases to be carried to the outside of the chamber thereby eliminating oxygen buildup or contamination of the chamber environment.

Warning: The Amron 350M-0-2 BIBS Mask was designed and is for use within a hyperbaric chamber only. It is NOT intended for and must NOT be used underwater.

NEWLY DESIGNED ENHANCEMENTS:

• Lightweight Flexible Exhaust Hose

Features:

• Easy Breathing (light inhalation and exhalation resistance, resulting in a low work of breathing)
• Rugged Regulator Housing with Stainless Steel Valve Assemblies
• Tool-less removal of Demand and Exhaust Valve Assemblies for ease of maintenance and service
• Pneumatically Balanced Demand Regulator with fine-tune adjustment
• Pneumatically Balanced Exhaust Regulator with overboard dump, permits minimum ventilation of the chamber
• Vacuum Relief Valve Included
• Gas Router and CO2 Purge Mechanism Attached to the Valves
• Double Diaphragm Design with Removable Diaphragms and locking Diaphragm Covers for proper alignment and compression
• Ultrafit, Hi-Comfort Silicone Oral Nasal, designed to fit most faces and designed to accommodate a microphone option
• Full Head Harness for added comfort during long administration
• Pressure and Collapse tested newly designed 10 ft. Lightweight Flexible Hose Exhaust Assembly with Quick Disconnects included
• For use with Air, Oxygen, or Heliox
• A unique microphone (Part #: 550-0010-01) can be linked to an Amcom ™ series communicator, allowing the person inside the chamber to clearly communicate with people outside the chamber
• US Patent No. 8,336,547
• Int. PCT. Pat. No. US2012/066144

350M BIBS Mask - P/N: 350M-02 Includes:

• (1) 10 Foot Lightweight Flexible Hose Exhaust Assembly with Quick Disconnects - P/N: 540-0030-01
• (1) Oxygen Cleaned Quick Disconnect Socket - Brass - P/N: 59853-00
• (1) Oxygen Cleaned Quick Disconnect Socket - P/N: 18969-00
• (1) Certificate of Conformance

Warning: The Amron 350M-02 BIBS Mask was designed and is for use within a hyperbaric chamber only. It is NOT intended for and must NOT be used underwater.
