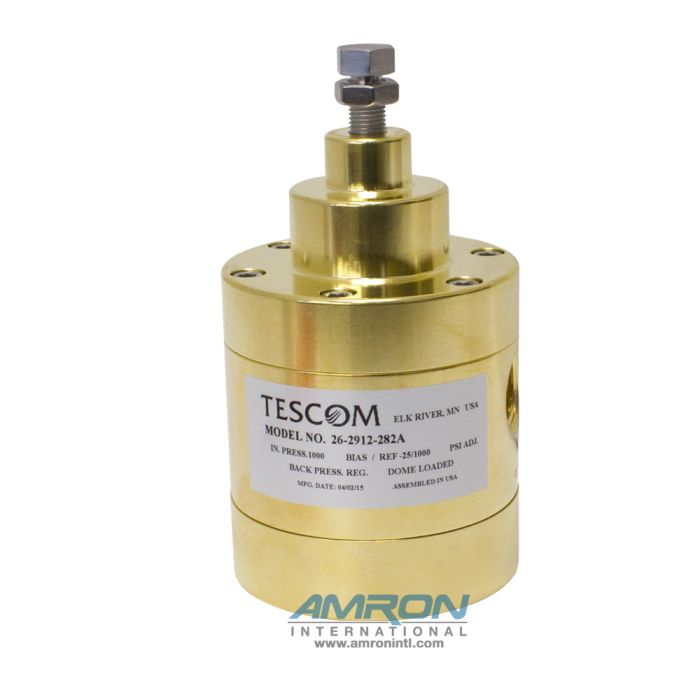

TESCOM 26-2912-282A Back Pressure Regulator 0-30 PSIG - Brass

SKU

26-2912-282A

Please contact Amron directly for GSA pricing at 1-877-462-6700.

$4,006.00

The TESCOM Back Pressure Regulator is a balanced stem design that eliminates the need to adjust bias over a wide range of operating pressures.

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications: Offshore diving applications Dumping exhaled breath from pressure chamber (BIBS) Diving bell Features: Balanced stem design eliminates the need to adjust bias over a wide range of operating pressures High flow capacity: Cv =2.0 Diaphragm sensed Low accumulation Mounts in any position Specifications: Maximum rated control pressure: 1000 psig (69.0 bar) Maximum rated reference pressure: 1000 psig (69.0 bar) Bias Pressure Range: 0-30 psig (0-2.1 bar) Design Proof Pressure: 150% maximum rated pressure Leakage: Bubble-tight Operating Temperature: 0 degrees to +165 degrees F (-18 degrees C to +74 degrees C) Flow capacity: Cv=2.0 Crack-to-Reseat Differential: 0-30 psig range: 5 psid (pounds per square inch differential Body Material: Brass Inlet and Outlet Port: 1/2 in. FNPT Media Contact Materials: Body: Brass Seat: CTFE Diaphragm: (unreinforced) Viton-A® O-rings: Viton-A® Back-up Rings: Teflon® Remaining Parts: 300 Series Stainless Steel & Brass Other: Cleaning: CGA 4.1 and ASTM G93 Weight Brass: 10.5 lbs. (4.5 kg)

Information

The TESCOM Back Pressure Regulator's balanced stem design eliminates the need to adjust bias over a wide range of operating pressures. High flow capacity (Cv=2.0), diaphragm sensed, low accumulation, and mounts in any position.

Many more options are available for the TESCOM Back Pressure Regulator. Please see the 2011 Amron International Catalog - Page 99, found in the Attachments tab above, for available options. Or call your Amron Sales Representative at 760-208-6500 for help building and ordering your TESCOM Back Pressure Regulator today.
