Amron Three-Diver High/Low Pressure Air Control and Pneumo System

Name: Amron Three-Diver High/Low Pressure Air Control and Pneumo System
Brand: Amron
SKU: 8330-PM
Price: 17344.00 USD
Availability: InStock

SKU

8330-PM

$17,344.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features Two high pressure and one low pressure air source connections Convenient switching between high pressure or low pressure. Low air pressure audio alarm 50 Micron in-line stainless filter on regulator inputs. Check valves on all source inputs. Automatic gauge protectors and snubbers protect against over pressurization of precision pneumo gauges. Specifications Air Control - High Pressure Section Inlet Connection (2): #6 JIC (back connection) Input Air Pressure Range: 500-5000 PSIG Inlet Valve (2): Source select Pressure Gauge: 0-6000 PSIG accuracy ±1.5% Input Air Filter (2): Inline Pre-Regulator: 50 Micron High Pressure Reducing Regulators (2): Tescom 44-1300 series Output Air Pressure Range: 0-300 PSIG Maximum High Pressure: 5000 PSIG Air Control - Low Pressure Section Inlet Connection: #10 JIC (back connection) Check Valve: 3 ea. Diver Outlet Connection: 3 each O2 fittings (back connection) Diver Outlet Valve: 3 each Air Pressure Gauge: 3 each 0-600 PSIG, accuracy ±1.5% Over-pressure Relief Valve: Set pressure 285 PSIG Depth Monitoring Pneumo Pneumo Gauge: 3 ea. 6 in. dual scale Range Dual Scale: 0-250 FSW / 0-76 MSW Accuracy: 0.25% of full scale with 1 ft. divisions Pneumo Valves (7): Regulating valve KEL-F seat Outlet Connection (3): O2 fitting, brass (back connection) Low Air Pressure Alarm: Pressure range, 22.5-125 PSIG, factory set at 100 PSIG Panel Construction Panel Material: Stainless steel Powder Coating: Black textured semi-gloss polyester Graphics: White silkscreened Panel Dimensions 25.50 in. W x 37.00 in. H WARNING: DO NOT USE THE AMRON 8330-PM FOR THE FOLLOWING Mixed gas diving operations with an oxygen level greater than 25%. Oxygen or oxygen enriched breathing mixtures above 25%. Features The 8330-PM is a unique, all-in-one air control system designed for panel mounting. Two high pressure and one low pressure air input connections. Three low pressure diver breathing supply outputs. All air inputs and outputs are located on the rear of the panel. Two Tescom 44-1312-2081-056 high pressure reducing regulators. 50 micron, inline, stainless steel filters on each regulator input. Convenient and easy switching between high pressure or low pressure inputs. Check valves on all source inputs top prevent backflow when switching. Gauge protectors and snubbers prevent pneumo gauge over pressurization. Low air pressure audio alarm set at 100 PSIG. Specifications Air Control - High Pressure Section High Pressure Regulators (x2): Tescom 44-1312-2081-056 HP Inlet Connections (x2): #6 JIC (located on rear of panel) Input Air Pressure Range: 500-5000 PSIG Inlet Valves (x2): Regulating type, KEL-F seat Input Pressure Gauges (x2): 0-6000 PSIG (accuracy ±1.5%) Input Air Filters, Inline Pre-Regulator (x2): 50 micron Output Air Pressure Range: 0-300 PSIG (relief valve limited to 285 PSIG) Max Input Air Pressure: 5000 PSIG Air Control - Low Pressure Section LP Inlet Connection (x1): #10 JIC (located on rear of panel) Check Valves (x3): 1 PSI Diver Outlet Connections (x3): O2 fittings; CGA 1240 (located on rear of panel) Diver Outlet Valves (x3): 1/4 turn ball valves Air Pressure Gauges (x3): 0-400 PSIG (accuracy ±1.5%) Over-Pressure Relief Valve: Set to 285 PSIG Gas Sample Valve (x1): Stainless steel T-handle with 3/16 in. vent tube Depth Monitoring – Pneumo Section Pneumo Gauges (x3): 6 in. precision Range Dual Scale: 0-250 FSW / 0-76 MSW (1 ft. divisions) Accuracy: 0.25% of full scale Pneumo Valves (x7): Regulating type, KEL-F seat Pneumo Outlet Connections (x3): O2 fittings; CGA 1240 (located on rear of panel) Low Air Pressure Alarm: Pressure range 22.5-125 PSIG, factory set at 100 PSIG Panel Construction Panel Material: Stainless steel Powder Coating: Black textured, semi-gloss Graphics: White silkscreened Panel Dimensions: 25.50 in. W x 37.00 in. H Warning: Do Not Use the Amron 8330-PM for the following Mixed gas diving operations with an oxygen level greater than 25%. Oxygen or oxygen enriched breathing mixtures above 25%.

Information

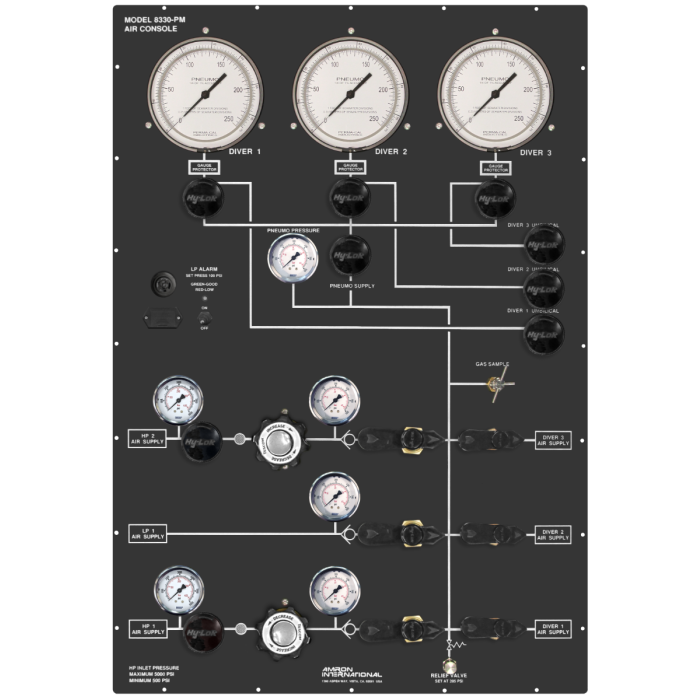

The Amron Model 8330-PM Air Control and Depth Monitoring System for 3 Divers is combined into a single panel mount design. A three diver high/low pressure air control and depth monitoring (pneumo) system for surface supplied diving operations. This air control system is designed to provide a central control point for the supply of breathing air to three divers and monitor their depth.

The 8330-PM contains depth monitoring with cross connect capabilities, automatic pressure gauge protectors with built-in snubbers that protect against over-pressurization. The pneumo system has the ability to cross-check all depth gauges. The divers' pneumo connection is an O2 type fitting located on back side of panel, pneumo valves are regulating type. Pneumo gauges are 6 in. high precision 0.25% of full-scale accuracy, dual scale 0-250 FSW/0-76 MSW with 1 ft. increments.

The low air pressure alarm module supplies a loud audio signal to alert the operator when a diver's air pressure falls below a pre-set limit of 100 PSIG.

WARNING: DO NOT USE THE AMRON 8330-PM FOR THE FOLLOWING

Mixed gas diving operations with an oxygen level greater than 25%.
Oxygen or oxygen enriched breathing mixtures above 25%.

The Amron model 8330-PM 3-Diver Air Control and Depth Monitoring System is a panel mount, high/low pressure air control with a depth monitoring (pneumo) system for surface supplied diving operations. This air control system is designed to provide a central control point for the supply of breathing air to three divers and to monitor their depth. Because the 8330-PM air control system is designed for panel mount applications, all air connections for inputs and outputs are located on the rear of the panel.

The 8330-PM has two high pressure inputs and one low pressure input. The high pressure inputs are regulated by Tescom 44-1312-2081-056 regulators that can accept a maximum of 5000 PSIG air and are filtered by inline 50 micron filters located on the input side of each regulator. The regulators can output a maximum of 300 PSIG. The two HP inputs and the LP input can be cross-connected to any of the diver air supply outputs, and each has a 1 PSIG check valve to prevent backflow. The maximum pressure of all three diver air supply outputs are limited by a pressure relief valve set to 285 PSIG.

The 8330-PM provides depth monitoring with cross connect capabilities, pressure gauge protectors and built-in snubbers that protect the precision pneumo gauges against over-pressurization. The pneumo system can cross-connect (and cross-check) any of the three pneumo gauges to any of the divers. The diver pneumo connections are O2 type fittings located on back side of panel. The pneumo valves are regulating type valves. Pneumo gauges are 6 in. high precision 0.25% of full-scale accuracy, dual scale 0-250 FSW/0-76 MSW with 1 ft. increments.

A low air pressure alarm module supplies a loud, 2.9 kHz audio signal to alert the operator when a diver's air pressure falls below a pre-set limit of 100 PSIG. The low pressure alarm has an on/off switch and is powered by a 9 VDC battery.

An additional and unique feature to the 8330-PM is a gas sample port on the front of the panel. The gas sample port is a stainless steel valve with a T-handle and a 3/16 in. vent tube that provides for a convenient way to connect a gas analyzer and extract and analyze air samples from the system to monitor gas composition and impurities. The gas sample port is located within the low pressure section of the air control system.
