TESCOM Pressure Reducing Regulator Brass, Inlet 5000 PSIG, Outlet 0-300 PSIG, 1/2 In. NPTF, CV 0.8

Name: TESCOM Pressure Reducing Regulator Brass, Inlet 5000 PSIG, Outlet 0-300 PSIG, 1/2 In. NPTF, CV 0.8
Brand: TESCOM
SKU: 44-1312-2081-056
Price: 1563.00 USD
Availability: InStock

SHIP NOW

SKU

44-1312-2081-056

$1,563.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

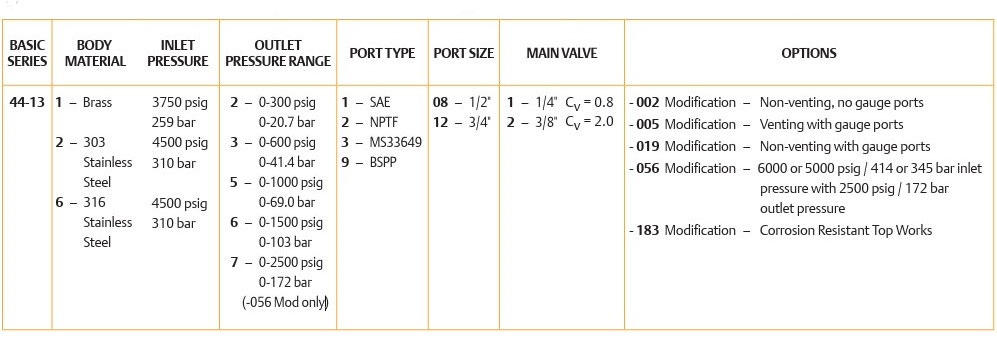

	Ordering Parameters Specifications Modification 056 Features: Porting: Left-hand inlet with 1/4” NPT gauge ports at 60° Corrosion-Resistant Bearing Inlet Pressure: 5,000 PSI Body Material: Brass Inlet Pressure: 5000 PSI (modification) Outlet Pressure: See chart In and Out Port Type: NPT In and Out Port Size: See chart Design Proof Pressure: 150% of rated pressure Pressure Rating: Per criteria of ANSI/ASME B31.3 Operating Temperature: -0°F to 165°F Leakage: Bubble-tight Flow Capacity (Cv): See chart Weight: Approximately 6.25 lbs. Seat, Main Valve: CTFE Seat, Vent Valve: Teflon® Back Cap: 300 Series SST O-Rings: Viton® Back-up Rings: Teflon® Gaskets: CTFE Remaining Parts: Type 17-4, 300 Series SST, 17-7, Teflon® & Brass Teflon® and Viton® are registered trademarks of E.I. du Pont de Nemours and Company CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert. NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.

Information

The 44-1300 Series Regulator is a spring-loaded, hand-operated, pressure-reducing regulator with an integral self-relieving vent valve.

Applications

Commercial diving - breathing air
Special gas mix regulation hard suit diving
High-pressure tube trailer gas reduction

Features

A large piston sensor gives excellent sensitivity.
Balanced valve design ensures stable downstream pressure.
A large hand knob provides fast, low-torque pressure settings.
This model is venting.
This model is modified to have a left-hand inlet with 1/4-inch NPT gauge ports at 60°, a corrosion-resistant bearing, expanded inlet pressures (6000 PSI for SST and 5000 PSI for brass regulators), and a 2500 PSI outlet pressure option.
Dome and air-loaded models are available (non-venting only).
Flanged end connections available.

Notes

For extended temperatures from -40°F to 400°F (-40°C to 204°C), consult Amron or Tescom.
A secondary pressure drop due to the outlet cross-hole can significantly affect the rated flow capacity. Flow curves should be used for critical sizing applications. See the Resources tab for more information.
