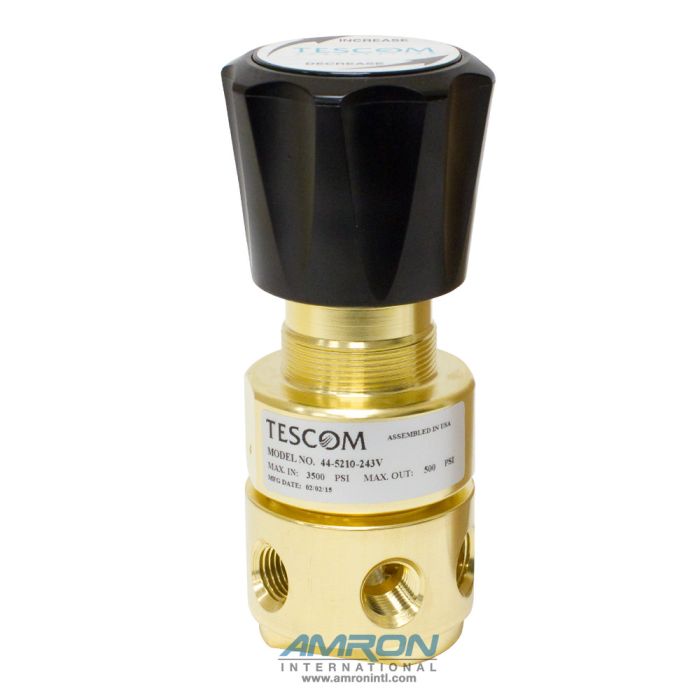

TESCOM 44-5210-243V Pressure Reducing Regulator Venting 1-25 PSIG - Brass

SKU
44-5210-243V
$498.00
Eligible for Free Shipping Over $125

The Tescom 44-5210-243V is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Ideal for use in test equipment, calibration stands and production equipment.​

Restrictions / Notifications

  • Non-Returnable/Non-Cancelable
    This item cannot be canceled or returned once an order has been placed.
More Information

Applications:

  • Test equipment
  • Calibration stands
  • Production equipment

Features:

  • Compact and economical design
  • For gas or liquid service
  • Piston sensed for high reliability and long service life
  • Standard version includes 1/4" NPT gauge ports
  • Brass Construction
  • Adjustable stop limits maximum outlet pressure

Specifications:

  • Body Material: Brass
  • Maximum Inlet Pressure: 3500 psig (241 bar)
  • Outlet Pressure Range: 1-25 psig (0.07-1.7 bar)
  • Design Proof Pressure: 150 percent maximum rated
  • Operating Temperature: -15°F to 200°F (-26°C to 93°C)
  • Maximum Operating Torque: 30 in-lbs (3.4 N•m)
  • Optional Venting: Venting
  • Connections: 1/4" in. NPT Inlet, Outlet and Gauge Ports

Media Contact Materials:

  • Body: Brass
  • Bonnet: Brass
  • Piston: Brass
  • Seats: Vespel®
  • O-Ring: Viton®
  • Filter (40 micron): 316 Stainless Steel
  • Remaining Parts: Brass

Other:

  • Cleaning: CGA 4.1 and ASTM G93
  • Weight (without gauges): 2 lbs / 0.9 kg

The Tescom 44-5210-243V is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Ideal for use in test equipment, calibration stands and production equipment.​

FAQ's
What type of lubricant should I use when overhauling my Tescom regulator?
The only approved lubricant is Christo-Lube MCG-111.
