TESCOM Pressure Reducing Regulator Brass, 1/4 FNPT, Inlet 6000 PSIG, Outlet 2-250 PSIG, Cv 0.06

Name: TESCOM Pressure Reducing Regulator Brass, 1/4 FNPT, Inlet 6000 PSIG, Outlet 2-250 PSIG, Cv 0.06
Brand: TESCOM
SKU: 44-5213-241-078
Price: 638.00 USD
Availability: InStock

SKU

44-5213-241-078

$638.00

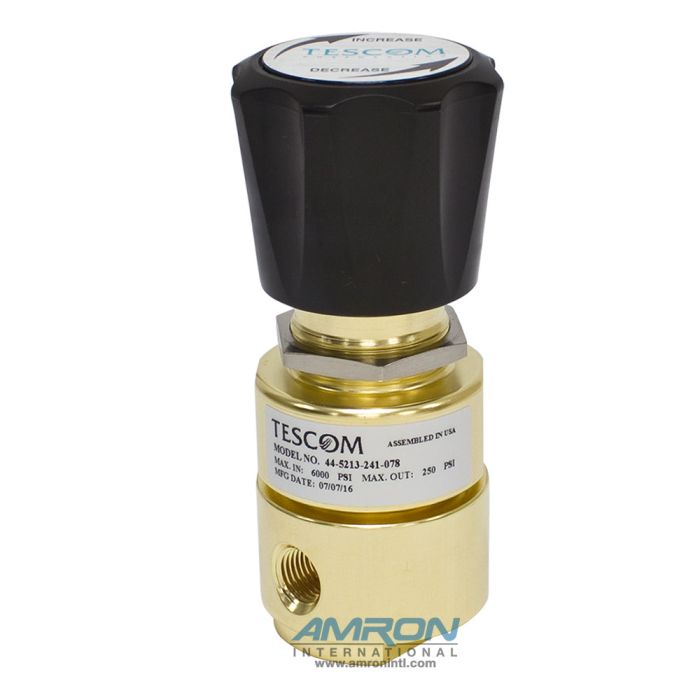

The Tescom 44-5213-241-078 is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Ideal for use in test equipment, calibration stands and production equipment.

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications: Test equipment Calibration stands Production equipment Features: Compact and economical design For gas or liquid service Piston sensed for high reliability and long service life Brass Construction Adjustable stop limits maximum outlet pressure Specifications: Body Material: Brass Maximum Inlet Pressure: 6000 psig (414 bar) Outlet Pressure Range: 2-250 psig (0.14-17.2 bar) Design Proof Pressure: 150 percent maximum rated Operating Temperature: -15°F to 200°F (-26°C to 93°C) Maximum Operating Torque: 30 in-lbs (3.4 N•m) In and Out Port Type: NPT Inlet Pressure: 350 PSIG / 24.1 bar Optional Venting: Non-venting Modification: Porting – No Gauge Ports Panel Nut (8686-1) Installed Inlet: 6000 PSI (Cv = 0.06) Media Contact Materials: Body: Brass Bonnet: Brass Piston: Brass Seats: Vespel® O-Ring: Viton® Filter (40 micron): 316 Stainless Steel Remaining Parts: Brass Other: Cleaning: CGA 4.1 and ASTM G93 Weight (without gauges): 2 lbs / 0.9 kg

Information

TESCOM 44-5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the TESCOM ER5000 Electropneumatic Controller.
