TESCOM Pressure Reducing Regulator Aluminum, Inlet 6000 PSIG, Outlet 0-140, 1/4 In. NPTF, CV 0.06

Name: TESCOM Pressure Reducing Regulator Aluminum, Inlet 6000 PSIG, Outlet 0-140, 1/4 In. NPTF, CV 0.06
Brand: TESCOM
SKU: BB-13AL2KVA4-014
Price: 434.00 USD
Availability: InStock

SKU

BB-13AL2KVA4-014

$434.00

Tescom BB-13AL2KVA4-014 Pressure Reducing Regulator Aluminum, Inlet 6000 PSIG, Outlet 0-140, 1/4 In. NPTF, CV 0.06

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

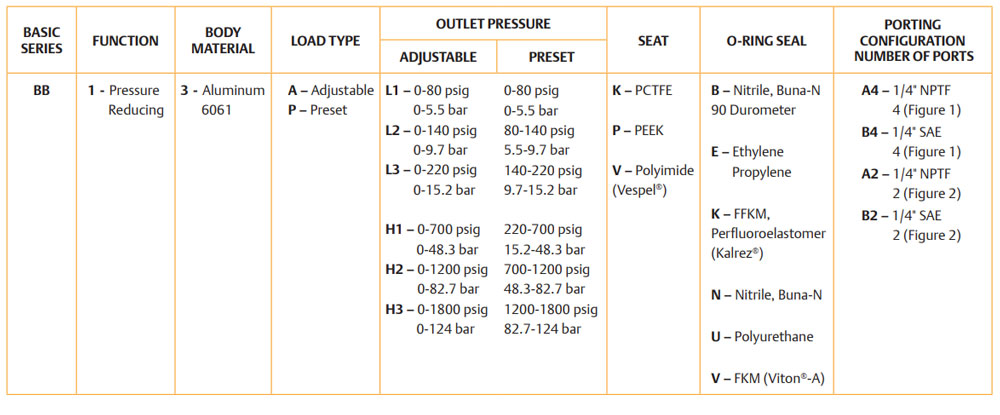

	Applications: Designed for liquid or gas media Features: Durable piston-sensed design Outlet pressure ranges are field adjustable Four 1/4" NPTF ports Minimal soft goods Non-venting Specifications: Maximum Inlet Pressure: 6,000 psig (415 bar) Body Materials: Aluminum 6061 (Nickel-plated) Load Type: Adjustable Outlet Pressure: Adjustable: 0-140 psig Seat: CTFE O-Ring Seal: FKM (Viton®-A) Design Proof Pressure: 150% maximum rated Leakage: Bubble-tight Operating Temperature: -15 °F TO +400 °F / -26 °C TO +204 °C Flow Capacity Standard: Cv = 0.06 Porting Configurable Number of Ports: 1/4" NPTF Remaining Parts: 300 Series Stainless Steel or Aluminum Modification Feature: Filter installed in inlet ports Other: Connections 1/4" NPTF Cleaning CGA 4.1 and ASTM G93 Weight (approximate) 0.5 lbs / 0.2 kg Ordering Parameters Specifications Modification 014 Features: Filter installed in inlet port (5) Body Material: Aluminum 6061 Maximum Inlet Pressure: 6000 psig / 414 bar Outlet Pressure Ranges: 0-140 psig / 0-9.7 bar Porting Configuration: See chart Design Proof Pressure: 150% maximum rated Pressure Rating: Per criteria of ANSI/ASME B31.3 Operating Temperature: -15° F to 165° F Leakage: Bubble-tight Flow Capacity: Cv = 0.06 Weight: Approximately 8 oz. Seat: See chart O-Rings: See chart Remaining Parts: 300 series stainless steel and aluminum Vespel®, Viton® and Kalrez® are registered trademarks of E.I. duPont de Nemours and Company.

Information

Tescom Pressure Reducing Regulator 0-140 PSIG - Aluminum BB-13AL2KVA4-014

TESCOM BB-1 Series high-pressure, low-flow, miniature pressure-reducing regulator provides six outlet pressure ranges available up to 1800 psig / 124 bar outlet. This non-venting regulator is small and compact, weighing approximately 0.5 lbs. / 0.2 kg in the standard aluminum construction.
