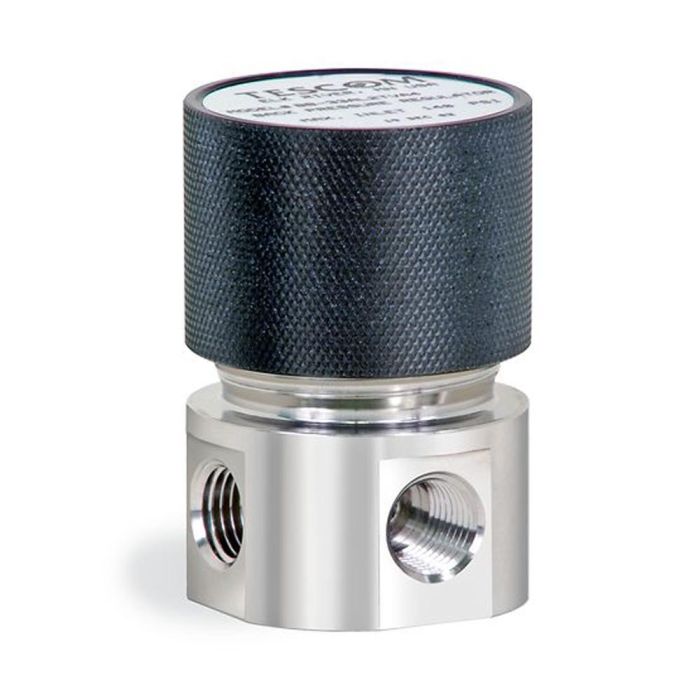

TESCOM BB-13AL3KEA4 Pressure Reducing Regulator 0-220 PSIG - Aluminum

Applications:

• Designed for liquid or gas media

Features:

• Durable piston-sensed design
• Outlet pressure ranges are field adjustable
• Four 1/4" NPTF ports
• Minimal soft goods
• Non-venting

Specifications:

• Maximum Inlet Pressure: 6,000 psig (415 bar)
• Body Materials: Aluminum 6061 (Nickel-plated)
• Load Type: Adjustable
• Outlet Pressure: Adjustable: 0-220 psig
• Seat: CTFE
• O-Ring Seal: Ethylene Propylene
• Design Proof Pressure: 150% maximum rated
• Leakage: Bubble-tight
• Operating Temperature: -30 °F TO +300 °F / -34 °C TO +149 °C
• Flow Capacity Standard: Cv = 0.06
• Porting Configurable Number of Ports: 1/4" NPTF
• Remaining Parts: 300 Series Stainless Steel or Aluminum

Other:

• Connections 1/4" NPTF
• Cleaning CGA 4.1 and ASTM G93
• Weight (approximate) 0.5 lbs / 0.2 kg
