TESCOM 2 In. Pressure Gauge Brass, Max 4000 PSI, 1/4 In. NPT

Name: TESCOM 2 In. Pressure Gauge Brass, Max 4000 PSI, 1/4 In. NPT
Brand: TESCOM
SKU: 62838-4000N20
Price: 84.00 USD
Availability: InStock

SKU

62838-4000N20

$84.00

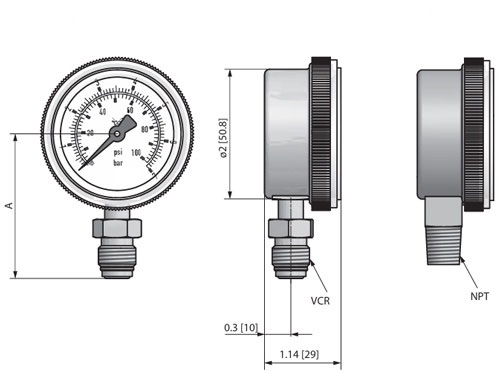

Tescom 62838-4000N20, 2-inch diameter, 1/4-inch NPT, Brass, psi/bar scale, 4000 psi/280 bar maximum pressure

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications Designed for general, laboratory, and semiconductor applications involving the measurement of compressed gases compatible with the materials of construction For gaseous media Gas filling pressure indicator on cylinder regulators Machine building and general plant construction Specifications Bourdon Tube Material: Brass Gauge Diameter: 2 in. Maximum Pressure: 4,000 psi / 280 bar Scale: Multi-scale (psi/bar) Accuracy: Brass - ASME B40.1 Grade B, middle half of scale - 2% of scale range, remainder: 3% Movement: Brass - Quality brass construction with gears precision generated and bearing surfaces finely finished to ensure smooth motion and extended service life Cleaning: ASME B40.1 Level IV Features
