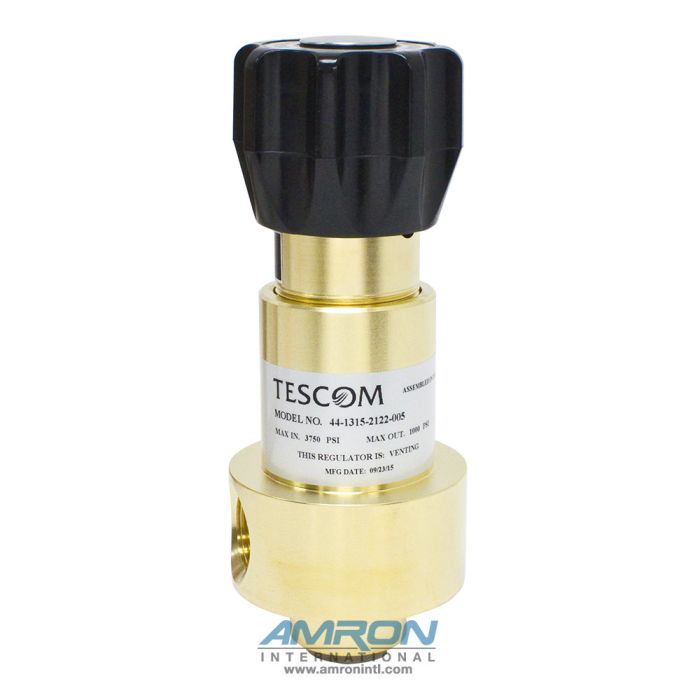

TESCOM 44-1315-2122-005 Pressure Reducing Regulator 0-1000 PSIG – Brass

Applications:

• Commercial diving - breathing air
• Special gas mix regulation hard suit diving
• High pressure tube trailer gas reduction

Features:

• Large piston sensor gives excellent sensitivity
• Balanced valve design ensures stable downstream pressure
• Large hand knob provides fast low-torque pressure settings
• Venting is standard

Specifications:

• Body Material: Brass
• Maximum Inlet Pressure: 3750 psig (259 bar)
• Outlet Pressure Range: 0-1000 psig (0-69.0 bar)
• Design Proof Pressure: 150 percent of rated pressure
• Leakage: Bubble-tight
• Operating Temperatur*: -15 degrees F to +220 degrees F (-25 degrees C to +104 degrees C)
• Flow capacity*: Cv=2.0
• Port Type: NPT
• Port Size: 3/4 in.
• Modification: Venting with gauge ports

*Note: A secondary pressure drop due to the outlet cross-hole can significantly affect the rated flow capacity. Flow curves should be used for critical sizing applications.

Media Contact Materials:

• Body: Brass
• Seat Main Valve: CTFE
• Seat Vent Valve: CTFE: 1000 psig / 69.0 bar
• O-rings: Viton-A®
• Back-up Rings: Teflon®
• Gaskets: CTFE
• Remaining Parts: Remaining Parts: 300 Series Stainless Steel, Teflon® & Brass

Other:

• Cleaning: CGA 4.1 and ASTM G93
• Weight (without gauges): 6.25 lbs. (2.83 kg)
