TESCOM Pressure Reducing Regulator Brass, Inlet 3750 PSIG, Outlet 1000 PSIG, 3/4 NPTF, Cv 2

Name: TESCOM Pressure Reducing Regulator Brass, Inlet 3750 PSIG, Outlet 1000 PSIG, 3/4 NPTF, Cv 2
Brand: TESCOM
SKU: 44-1315-2122
Price: 1245.00 USD
Availability: InStock

SKU

44-1315-2122

$1,245.00

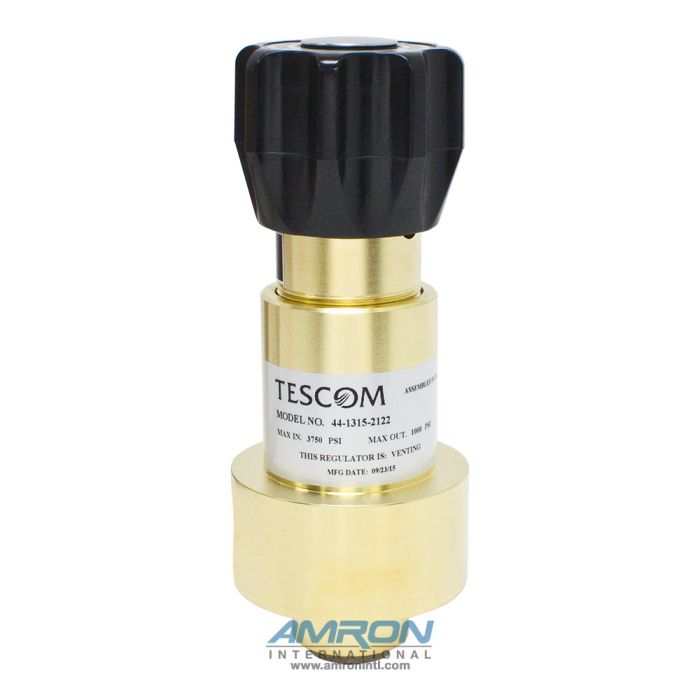

Tescom 44-1315-2122 Pressure Reducing Regulator is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. Ideal for use in commercial diving - breathing air, special gas mix regulation hard suit diving and high pressure tube trailer gas reduction.

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Applications: Commercial diving - breathing air Special gas mix regulation hard suit diving High pressure tube trailer gas reduction Features: Large piston sensor gives excellent sensitivity Balanced valve design ensures stable downstream pressure Large hand knob provides fast low-torque pressure settings Venting is standard Specifications: Body Material: Brass Maximum Inlet Pressure: 3750 psig (259 bar) Outlet Pressure Range: 0-1000 psig (0-69.0 bar) Design Proof Pressure: 150 percent of rated pressure Leakage: Bubble-tight Operating Temperature: -15 degrees F to +220 degrees F (-25 degrees C to +104 degrees C) Flow capacity: Cv=2.0 Port Type: NPT Port Size: 3/4 in. Note: A secondary pressure drop due to the outlet cross-hole can significantly affect the rated flow capacity. Flow curves should be used for critical sizing applications. Media Contact Materials:* Body: Brass Seat Main Valve: CTFE Seat Vent Valve: CTFE: 1000 psig / 69.0 bar O-rings: Viton-A® Back-up Rings: Teflon® Gaskets: CTFE Remaining Parts: 300 Series Stainless Steel, Teflon® & Brass Other: Cleaning: CGA 4.1 and ASTM G93 Weight (without gauges): 6.25 lbs. (2.83 kg)

Information

TESCOM 44–1300 series is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. The 44–1300 series provides Cv = 0.8 and 2.0. Dome and air load options are available.

Applications for the TESCOM 44-1300 Regulators series incudes enabling the breathing of air during commercial diving, special gas mix regulation during hard suit diving, and high pressure tube trailer gas reduction. Features include a large piston sensor that allows for excellent sensitivity, a balanced valve design that assures stable downstream pressure, a large hand knob that provides low-torque pressure settings, and standard venting.
