TESCOM 44-5213-241 Pressure Reducing Regulator 2-250 PSIG Low Pressure, Piston Sensed - Brass

Name: TESCOM 44-5213-241 Pressure Reducing Regulator 2-250 PSIG Low Pressure, Piston Sensed - Brass
Brand: TESCOM
SKU: 44-5213-241
Price: 489.00 USD
Availability: InStock

SKU

44-5213-241

$489.00

Restrictions / Notifications

Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information

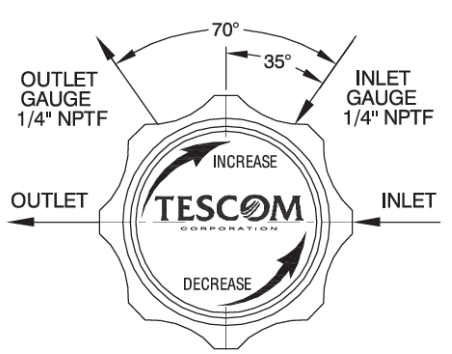

	Applications Test equipment Calibration stands Production equipment Features Compact and economical design For gas or liquid service Piston sensed for high reliability and long service life Standard version includes 1/4 in. NPTF gauge ports Brass or stainless steel construction Adjustable stop limits maximum outlet pressure Modification with 6000 psig / 414 bar inlet pressure is available Venting and captured venting is available NACE compliant designs are available Specifications TESCOM Basic Series: 44-52 Body Material: Brass Outlet Pressure: 2-250 psig / 0.14-17.2 bar Inlet and Outlet Port Type: NPTF (ports at 70° angle) Port Size: 1/4 in. Inlet Pressure: 3500 psig / 241 bar Flow Capacity: Cv = 0.06 Non-venting Spring-loaded Hand operated Cleaning: CGA 4.1 and ASTM G93 Connections: 1/4 in. NPTF inlet, outlet, and gauge ports Weight (Without Gauges): 2 lbs. / 0.9 kg Non-Venting Model

Information

TESCOM 44–5200 Series is a compact piston sensed pressure reducing regulator designed for heavy cycle duty applications. Venting or air load is optional for use with the TESCOM ER5000 Electropneumatic Controller.
