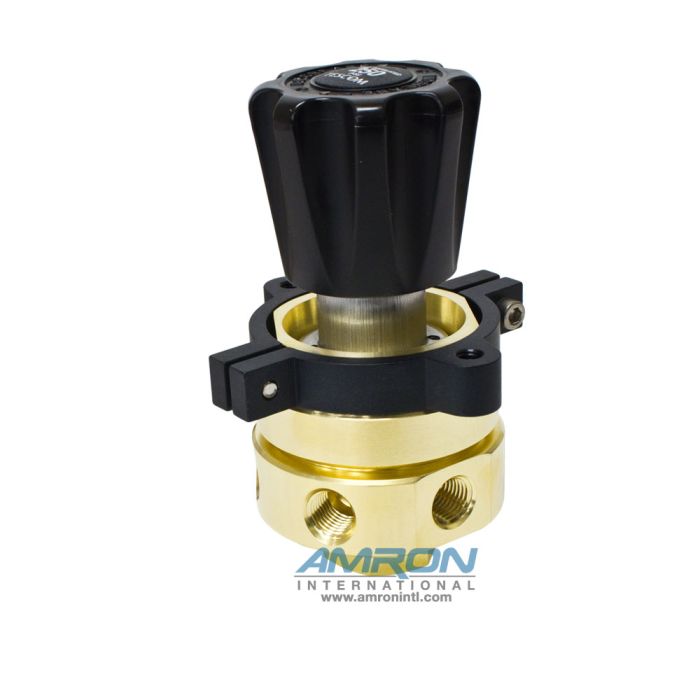

TESCOM Pressure Reducing Regulator, Brass, 1/4 FNPT, Inlet 5000 PSIG, Outlet 0-500 PSIG, Cv 0.08

• Modification 008: ¼ inch inlet and outlet gauge ports at 60 degrees

• Body Material: Brass

• Maximum Inlet Pressure: 5000 psig / 345 bar

• Outlet Pressure Range:  0-500 psig / 0-34.5 bar

• In and Out Port Type: 1/4 In. NPTF

• Design Proof Pressure: 150% of rated pressure

• Leakage: Bubble-tight

• Pressure Rating: Per criteria of ANSI/ASME B31.3

• Operating Temperature: -30°F to 165°F / -34°C to -74°C

• Flow Capacity (Cv): = 0.08

• Maximum Operating Torque:  25 In.-lbs./2.8 N•m

• Bonnet Material: Brass

• 40 Micron Filter Material: 300 Stainless Steel

• Main Valve Seat Material: PCTFE

• Vent Valve Seat: 15% Graphite Filled PTFE

• O-rings and Diaphragm: Nitrile Buna-N

• Remaining Parts: 300 series Stainless Steel

• Weight: Approximately 3 lbs. / 1.4 kg


Teflon® is a registered trademarks of E.I. du Pont de Nemours and Company.

CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.

NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com.
