TESCOM Pressure Reducing Regulator Brass, Inlet 5000 PSIG, Outlet 0-250 PSIG, 1/4 In. NPTF, CV 0.08
Restrictions / Notifications
- Non-Returnable/Non-Cancelable
This item cannot be canceled or returned once an order has been placed.
 Specifications
CAUTION: This product is cleaned in accordance with the intermediate level of ASTM-G93 and CGA-4.1 (The intermediate level assures removal of visible particles and combustible residues). System designers must verify the compatibility of the materials used in this product before installation and operation. Specification of materials for oxygen service is the user's responsibility. Consult an expert.
NOTICE: This regulator should be serviced on a regular or annual basis under normal usage. For assistance in obtaining the correct soft goods or repair kit SKUs, please contact your Amron representative or email sales@amronintl.com. |

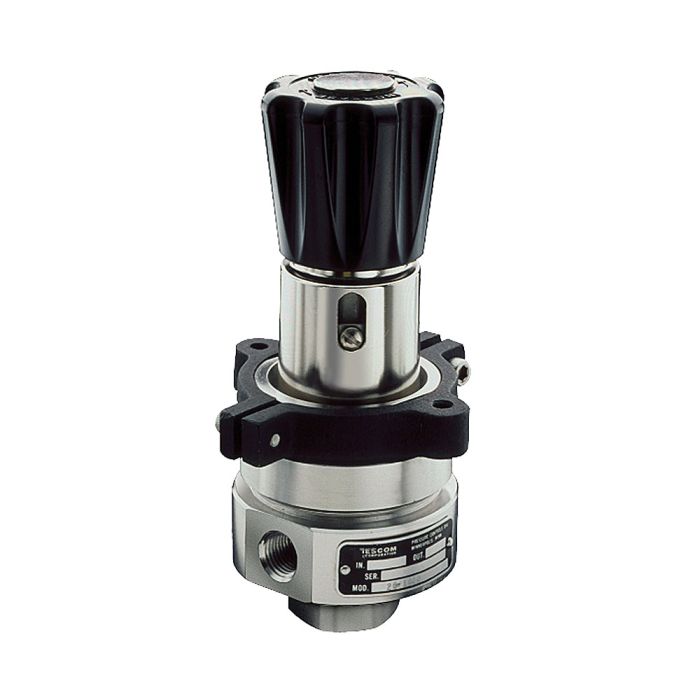

The Tescom 26-1612-24-453 is a spring-loaded type regulator with 1/4-inch inlet and outlet gauge ports. The 26-1600 series has self-venting capabilities, which provide excellent control in dead-ended systems. This highly sensitive model features a non-rising stem and low operating torque, allowing the unit to be easily motorized by an actuator.
Applications
- Test equipment
- Calibration stands
- Production equipment
Features
- Leakage: Bubble-tight
- Operating Temperature: 40°F to 165°F (-40°C to 74°C)
- Maximum Operating Torque: 25 in-lbs. (2.8 N∙m)
- Venting is standard (available with captured venting)
- Highly sensitive
- Features a non-rising stem and low operating torque
- Compact design
- Filter extends seat life
- Numerous porting options
- Panel mounting (bracket included)
- Easy maintenance with standard tools
- High flow Cv = 0.24 version is available (maximum inlet pressure: 3000 psig / 207 bar)
Media Contact Materials
- 40 Micron Filter: 300 series stainless steel
- Main Valve Seat: PCTFE
- Vent Valve Seat: 15% graphite-filled PTFE
- O-Ring: Buna-N
- Diaphragm: Buna-N
- Weight (without gauges): 3.3 lbs. (1.5 kg)
