Stanley Submersible Trash Pump w/3in. Discharge (Excludes Hose Whips - Includes Couplers)

Name: Stanley Submersible Trash Pump w/3in. Discharge (Excludes Hose Whips - Includes Couplers)
Brand: Stanley
SKU: TP0300301
Price: 2069.00 USD
Availability: InStock

SKU

TP0300301

was $2,352.00 Sale Price $2,069.00

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application: Dewatering Dredging Cleaning Features: Submersible and Self Priming Dredges solids up to 3 inches in size Removes sand, clay and mud from work structures 450 gpm (1688 lpm) discharge Easy bowl inspection and clean out Built in reverse flow check Can run dry without damage 3 in. discharge CE Certified Specifications: Capacity: 3 in. NPTF with 3 in. Camlock Performance: 450 gpm / 1688 lpm Flow Range: 7-9 gpm / 26-34 lpm Working Pressure: 2000 psi / 140 bar Full Relief Setting: 2250 psi / 155 bar Weight: 31 lbs / 14 kg Length: 14 in. / 35.5 cm Width: 12 in. / 30.4 cm Hydraulic Ports: -8 SAE O-ring Connection: 3/8 in. Male Pipe Adapter Couplers: Yes Hose Whips: No Features Lightweight and durable urethane bowl and impeller. Submersible, no priming required. Able to run dry without damage. Lifting eye. HTMA quick disconnect couplers. 3 in. discharge. Specifications Model: TP03 Capacity: 3 in. discharge Performance (gpm): 450 gpm Performance (lpm): 1688 lpm Flow Range (gpm): 7–10 gpm Flow Range (lpm): 26–34 lpm Pressure (psi): 2000 psi Pressure (bar): 140 bar Ports: -12 and -14 SAE O-Ring Weight (lbs.): 31 lbs. Weight (kg): 14 kg Length (in.): 14 in. Length (cm): 35.5 cm Connection: HTMA flush faced couplers Discharge Connection: 3 in. female pipe thread NOTE: This product has three different Motor Seal Kits that can be used for different versions of the Motors this unit might have been sold with. If you have a Motor labeled TM3, use Motor Seal Kit PN: 73431, if you have a Motor labeled TM2, use Motor Seal Kit PN: 66401 and if your motor does not have either of those listed, you will likely need Motor Seal Kit PN: 26230. Please contact Amron if you have questions on which Motor Seal Kit you need, pictures may be required.

Information

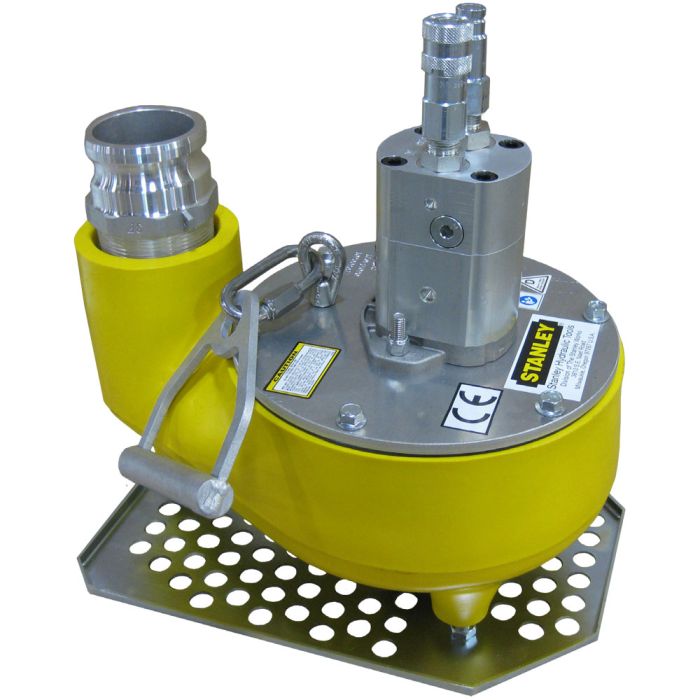

The Stanley TP03 Submersible Trash Pump boasts 450 gpm of output flow, this pump is an efficient way to move large volumes of liquid with concentrations of solids up to 25% by volume. The TP03 handles solids up to 3 inches in size and is used for dredging and light cleaning tasks. The urethane bowl and impeller is abrasion resistant, resilient and impervious to petrochemical solvents. No priming necessary, just drop it into the material and it’s ready for work.

The urethane bowl is virtually indestructible - tough, lightweight, abrasion resistant, resilient and impervious to petrochemical solvents. The Stanley TP03 can pump almost anything without damaging the bowl.

The Stanley TP03 Submersible Trash Pump’s efficient design places the urethane impeller above material flow, reducing blockage, jamming and overall pump wear while keeping liquids moving fast enough to pump high volumes of solids at a much higher head than non-submersible pumps.

For easy maintenance and inspection, simply remove the wing nuts and top plate, clean out the bowl and replace the cover and nuts. You’re back to work in less than 5 minutes. The TP03 can run dry without damaging motor or impeller, reducing the possibility of downtime.

Note: In an effort to improve portability and ease of use, modifications have been made to all TP03 and TP08 model trash pumps. For both pumps a quick link clip (p/n 73577) and carrying handle (p/n 73576) were added and connected to the eyelet located on the top plate. The rounded handle allows for increased comfort while carrying when compared to the previous square handle. With the clip feature, the handle can be removed to allow for large crane hooks to attach to the eyelet. In addition, the color of the TP03 urethane bowl has been changed from black to yellow. This change was made to increase pump visibility while operating in murkier substances or liquids.

The STANLEY® TP03 Trash Pump is the lightest, most efficient solution for moving large volumes of liquid with up to 25% solid content. No priming is needed—just drop it in, and it's ready to work. Featuring a virtually indestructible urethane bowl, it is tough, abrasion-resistant, resilient, and impervious to petrochemical solvents, allowing it to pump a wide range of materials without damage. Its durability and ease of use make it an ideal choice for demanding tasks.
