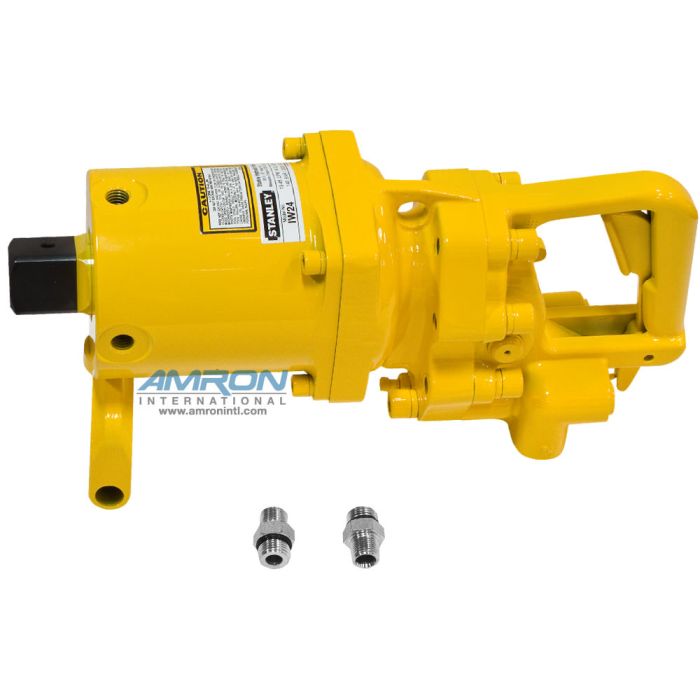

Stanley IW24360 Hydraulic Underwater Impact Wrench - 1-1/2 Inch Square Drive (Excludes Hose Whips and Couplers)

Name: Stanley IW24360 Hydraulic Underwater Impact Wrench - 1-1/2 Inch Square Drive (Excludes Hose Whips and Couplers)
Brand: Stanley
SKU: IW24360
Price: 10321.20 USD
Availability: InStock

SKU

IW24360

List Price: $11,468.00

was $11,181.30

List Price: $11,468.00

Sale Price $10,321.20

The Stanley Hydraulic Underwater Impact Wrench IW24 produces up to 3500 ft. lbs (4760 Nm) of impact torque. The Stanley Hydraulic Underwater Impact Wrench IW24 is used by commercial divers for underwater nut and bolt and anchor bolt driving and other heavy duty underwater applications.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Features: 7-12 GPM (26-45 LPM) operating range Adjustable impact intensity Lever-type forward/reverse spool Integral Hyrevz gear-type motor Large “D” handle for gloved operation Swing hammer mechanism for easy servicing, reduced maintenance costs, and greatly reduces the transmission of torque to the operator reducing fatigue through repetitive tool operation Assist handle Specifications: Capacity: 1-1/2 in. Square Drive Torque Range: 800 - 3500 ft. lbs (1088 - 4760 Nm) Flow Range: 7 - 12 GPM (26 - 45 LPM) Pressure: 1800 - 2000 PSI (124 - 140 bar) Ports: -8 SAE O-Ring Weight: 43 lbs (19.5 kg) Dimensions: 16.5 in. L x 5.1 in. W (41 cm L x 13 cm W) Connect Size and Type: 3/8 in. Adaptor to -8 SAE Port Motor: Integral Hydraulic Underwater Impact Wrench IW24 - P/N: IW24360 Includes: User Manual Note: Hose whips P/N: 01652 are sold separately.

Information

Designed to run from a wide range of hydraulic circuits, the Stanley Hydraulic Underwater Impact Wrench IW24 has adjustable impact intensity making it ideal for a wide range of underwater heavy duty driving.

The large "D" handle and feathering trigger are convenient and gives the commercial diver complete control of the underwater impact wrench.

The rugged swing-hammer impact mechanism provides easy servicing for reduced maintenance costs and greatly reduces the transmission of torque to the commercial diver reducing fatigue through repetitive underwater tool operation. Standard reversing valve provides instant change over from forward to reverse.

*Please reference the ATTACHMENTS tab for downloadable and printable files on this underwater tool.

Resources

ATTACHMENTS

2011 Amron International Catalog - Page 248

(Size: 113.9 KB)

Hydraulic Tool to Hydraulic Hose Attachment

(Size: 30.5 KB)

Stanley IW24 Impact Wrench Blowapart and Key

(Size: 683.7 KB)

Stanley IW24 Impact Wrench Specification Sheet

(Size: 496.7 KB)

Stanley IW24 User Manual 2-22 VER 21

(Size: 372.9 KB)

FAQ's

How do I set the torque on my impact wrench?

Stanley Impact Wrenches are not considered torque wrenches. You can adjust the tool close to a set torque, but it won't be exact. Please refer to your service manual for instructions on adjusting the "Impact Intensity Adjustment".

Will my tool operate if I use a lower flow rate than what would be considered optimum for the tool to operate?

Yes, most tools have an optimal flow range, as long as the gallons per minute delivered to the tool is within this range the tool will work. However, please be award that the tool will run at a slower speed based on the flow rated delivered to the tool. Basically, the lower the gallons per minute the slower the tool will run.
