Stanley IW16350 - IW16 Hydraulic Underwater Impact Wrench - 1 In. Square Drive (Excludes Hose Whips)

Name: Stanley IW16350 - IW16 Hydraulic Underwater Impact Wrench - 1 In. Square Drive (Excludes Hose Whips)
Brand: Stanley
SKU: IW16350
Price: 4772.70 USD
Availability: InStock

SKU

IW16350

List Price: $5,303.00

was $5,170.43

List Price: $5,303.00

Sale Price $4,772.70

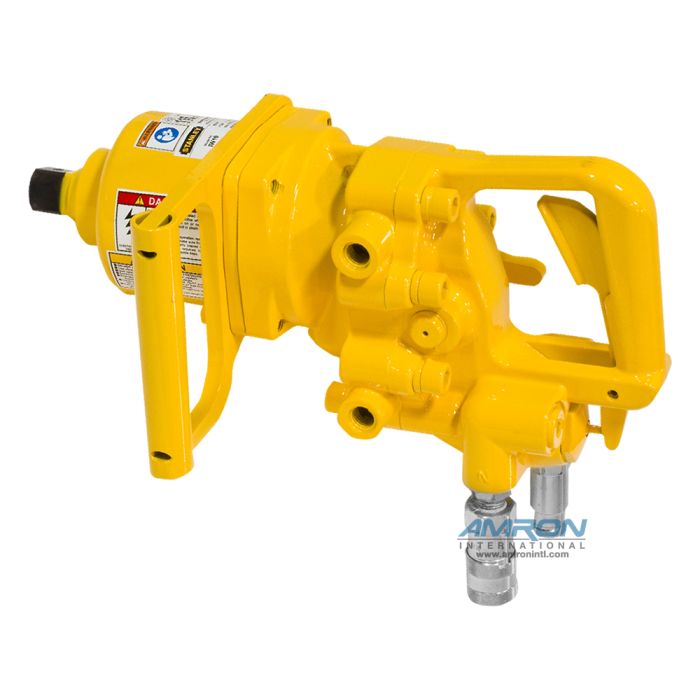

The Stanley Hydraulic Underwater Impact Wrench IW16 produces up to 2500 ft. lbs (3400 Nm) of impact torque. The Stanley Hydraulic Underwater Impact Wrench IW16 is primarily used by commercial divers for underwater nut, bolt, and anchor bolt driving.

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application: Fastening or Loosing Hardware that require High Torque Features: Adjustable impact intensity Lever-type forward/reverse spool to increase operator efficiency Large “D” handle for gloved operation Feathering On/Off Valve allow the underwater operator to control the amount of energy to the tool Swing hammer mechanism provides easy servicing and reduces the transmission of torque to the operator Assist handle Specifications: Input Flow Range: 7 - 12 GPM (26 - 45 LPM) Input Pressure: 1500 - 2000 PSI (105 - 140 bar) Capacity: 1 in. Square Drive Torque Range: 500 - 2500 ft-lb (680 - 3400 Nm) Weight: 26 lbs (12 kg) Dimensions: 14.5 in. L x 4.5 in. W (37 cm L x 11 cm W) Connect Size and Type: 3/8 in. Adaptor to -8 SAE Port Hydraulic Underwater Impact Wrench IW16 - P/N: IW16350 Includes: User Manual Note: Hose whips P/N: 01652 (2 required) and quick disconnect couplers P/N: 03971 are sold separately Application Nut and bolt tightening or loosening, anchor bolt driving Features Integral Stanley Hyrevz gear motor produces high torque Stainless steel spools and fasteners Forward-reverse with variable speed “D” style grip handle with inside trigger Feathering on/off trigger for precise control Adjustable impact intensity 2500 ft. lbs./3400 Nm of maximum impact torque Durable swing hammer mechanism Cast-in lifting eye Specifications Capacity: 1 in. square drive Hyd. Flow: 7-12 gpm / 26-45 lpm Weight: 26 lbs. / 12 kg Length: 14.5 in. / 37 cm Width: 4.5 in. / 11 cm Connection: 3/8 in. flush face quick disconnect couplers NOTE: Tool requires 2 hose whips each (01652) purchased separately.

Information

The Stanley Hydraulic Underwater Impact Wrench IW16 is an underwater hydraulic wrench which produces up to 2500 ft.lbs. (3400 Nm) of impact torque. The Stanley Hydraulic Underwater Impact Wrench IW16 is used by commercial divers for underwater nut, bolt, and anchor bolt driving and other medium to heavy duty applications.

Hose whips and couplers are sold separately for the Stanley Hydraulic Underwater Impact Wrench part number IW16350.

Adjustable Impact Intensity of the Stanley Hydraulic Underwater Impact Wrench IW16 makes it ideal for a wide range of uses by the commercial diver. Rugged Swing-Hammer impact mechanism provides easy servicing for reduced maintenance costs and greatly reduces the transmission of torque to the commercial diver reducing fatigue through repetitive tool operation.

The Stanley Hydraulic IW16 Underwater Impact Wrench also features a large "D" Handle and Feathering On/Off Valve allow the commercial diver to control the amount of energy to the underwater tool, providing more control and ease of handling. Standard Reversing Valve provides instant changeover from forward to reverse, increasing commercial diver efficiency.

*Please reference the ATTACHMENTS tab for downloadable and printable files on this underwater tool.

The STANLEY® IW16 Hydraulic Impact Wrench is designed for high-performance applications requiring durability and versatility. With adjustable impact intensity settings, it offers the flexibility to handle a wide range of tasks, from track maintenance to heavy-duty industrial work. The rugged design features an integral motor and heavy-duty mechanism, ensuring long-lasting performance in challenging environments. Its exceptional power-to-weight ratio provides superior torque while reducing operator fatigue. The IW16 also includes a variable speed control for precise torque application, and its compact, ergonomic build enhances ease of use. Built to withstand demanding conditions, the IW16 is the ideal tool for those seeking reliability and efficiency.

The Stanley IW16 is a heavy duty 1 in. square drive impact wrench designed for the toughest underwater bolting applications. Powered by a Stanley integral Hyrevz motor, the IW16 has a durable swing hammer impact mechanism with adjustable impact intensity from 500 to 2500 ft. lbs. (680 to 3400 Nm) of torque. Designed to run
from a wide range of hydraulic circuits. “D” style grip handle with multi-position assist handle and hi-visibility yellow paint is standard.

Resources

ATTACHMENTS

Stanley Infrastructure CE Products Catalog 2016-2017

(Size: 3.8 MB)

Stanley IW16 Hydraulic Impact Wrench 66174 User Manual 04-2024 Ver. 37

(Size: 1.1 MB)

Stanley IW16 Spec Sheet 2024.08.09

(Size: 53.6 KB)

Stanley Underwater Tools Catalog 08.2021

(Size: 412.1 KB)

Stanley Underwater Tools Depth Guideline

(Size: 179.8 KB)

FAQ's

How do I set the torque on my Hydraulic Underwater Impact Wrench IW16?

Stanley Impact Wrenches are not considered torque wrenches. You can adjust the tool close to a set torque, but it won't be exact. Please refer to your service manual for instructions on adjusting the "Impact Intensity Adjustment".

Will my tool operate if I use a lower flow rate than what would be considered optimum for the tool to operate?

Yes, most tools have an optimal flow range, as long as the gallons per minute delivered to the tool is within this range the tool will work. However, please be award that the tool will run at a slower speed based on the flow rated delivered to the tool. Basically, the lower the gallons per minute the slower the tool will run.

Do any of the Stanley hydraulic tools ship full of hydraulic oil?

No, but the factory normally will leave a little fluid inside the tool to help lubricate the internal components during storage.
