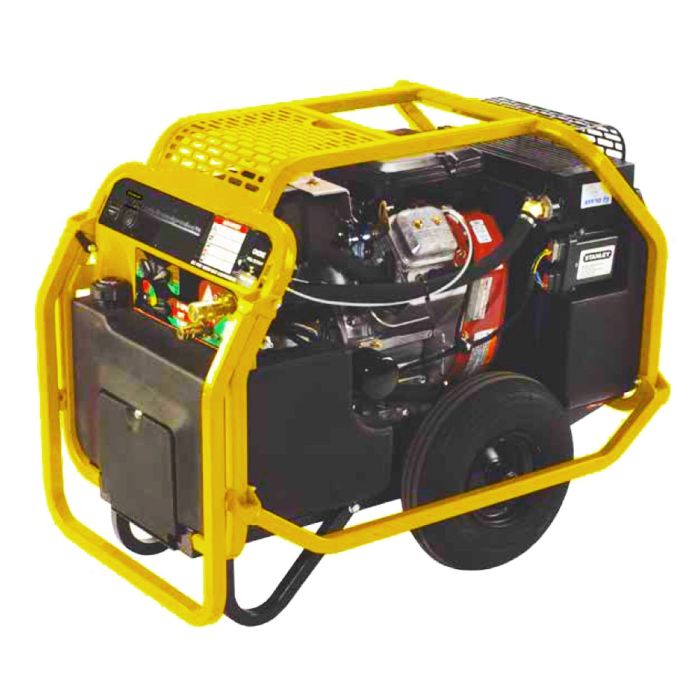

Stanley Hydraulic Power Unit - 8 or 12 gpm Output Capacity

Name: Stanley Hydraulic Power Unit - 8 or 12 gpm Output Capacity
Brand: Stanley
SKU: HP12B
Price: 8103.00 USD
Availability: InStock

SKU

HP12B

was $9,104.52 Sale Price $8,103.00

Restrictions / Notifications

No Free Shipping
This item does not qualify for free shipping.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application: Designed to provide power for hydraulic tools requiring a single 8 gpm up to 12 gpm. Features: One 8 GPM/30 LPM Circuit, One 10 GPM/40 LPM or One 12 GPM/45 LPM Circuit Heat rejection capacity exceeding 5 hp. Manual throttle control. Air-oil cooler. Lift and latch handle. Pneumatic tires. Maintenance-free battery. Hydraulic and engine oil filter. Specifications: Engine: 23 hp Briggs Capacity: One 8 GPM/30 LPM Circuit or One 12 GPM/45 LPM Circuit Length: 36 in. (91.4 cm) Width: 23 in. (58.4 cm) Height: 29.5 in. (74.9 cm) Weight (Wet): Single Circuit Briggs 330 lbs (149.6 kg) Fuel Tank Capacity: 5.5 gallons (20.8 liters) Estimated Gas Consumption Per Hour: 1.3 gallons (4 liters) Hydraulic Reservoir Capacity: 3 gallons (11 liters) Relief Valve setting: 2100 psi (145 bar) Full relief setting: 2500 psi (172 bar) HTMA Category:"D" (30 LPM at 138 bar) or or "E" (45 LPM at 138 bar) Nominal Pressure: 1500 psi (103 bar) Max Pressure: 2000 psi (138 bar) Features Type II or Type III hydraulic circuit with superior cooling Manually controlled engine speed provides 8 or 12 GPM Tool circuit lockout during startup - safety feature Quartz hour meter on control panel records engine run time Lift & Latch handle with fold-up side handles 35-AH sealed, non-spillable, no maintenance battery located in covered compartment In tank hydraulic filter with dipstick and easy access filter replacement Specifications Output Capacity: 8-12 GPM / 30-45 LPM Pressure: 2000 psi / 140 bar Circuit Type: Open Center Hydraulic Reservoir Capacity: 3 gallons / 11.4 liters Couplers: HTMA flush face Fuel Tank Capacity: 5.5 gallons / 20.8 liters Engines: Briggs & Stratton 23 HP Vanguard OHV Weight: 340 lbs. / 154 kg Length: 35 in. / 89 cm Width: 21.5 in. / 54.6 cm Height: 29 in. / 74 cm

Information

The HP Series of Stanley Hydraulic Power Units are designed for continuous duty operation with an efficient oil cooler as standard equipment.

The Stanley HP12B hydraulic power unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 2 and Type 3 hydraulic tools. Its powerful 23 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP12 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP12 the industry choice for high-flow applications.

The HP12 hydraulic power unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 2 and Type 3 hydraulic tools. Its powerful 23 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP12 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP12 the industry choice for high-flow applications.
