Stanley Power Unit TracHorse® Dual Circuit All Terrain, Honda

Only %1 left
SKU
MHP3
was $29,377.00 As low as $29,377.00

Restrictions / Notifications

  • No Free Shipping
    This item does not qualify for free shipping.
More Information
Features
  • The self-propelled mobile hydraulic tool and equipment carrier is a versatile solution for transporting tools and equipment in various job-site environments.
  • Specifically designed for continuous-duty applications and comes equipped with the standard high-efficiency cooling system featured on all STANLEY™ hydraulic power units.
  • Simple operating controls allow for a wide range of applications.
  • Two speed forward track drive and single low reverse speed.
  • Work lights.
  • Opening tailgate.
  • Climbs 60% grade.
  • Optional hose reel.



Specifications
  • Engine: 20 h.p. Honda
  • Fuel Capacity: 5.5 gal / 20.8 L
  • Fuel Type: Unleaded gasoline w/ 85 octane minimum
  • Pressure Range: 2000 psi / 140 bar
  • Flow Range: 2 ea. 5 GPM / 20 LPM or 10 GPM / 38 LPM
  • Connect Size and Type: -8 SAE
  • Weight (Standard Trachorse): 1200 lbs. / 544 kg
  • Weight (Bedless Trachorse): 980 lbs. / 445 kg
  • Maximum Pay Load: 1000 lbs. / 454 kg
  • Overall Length: 78 in. / 198 cm
  • Overall Height: 43 in. / 109 cm
  • Hydraulic Oil Capacity: 3 gal / 11 L
  • Load Capacity: 1000 lbs. / 454 kg
  • Pressure: 2000 psi / 38 bar
  • Flow Range: 2 @ 5 gpm or 1 @ 10 gpm / 2 @ 20 lpm OR 1 @ 38 lpm
  • Travel Speed:1.55 mph - 2.8 mph / 2.5 km/h - 4.5 km/h
  • Hydraulic Reservoir Capacity: 3 gallons / 11 liters
  • Fuel Tank Capacity: 7 gallons / 26.5 liters
  • Weight (Standard TracHorse®): 1200 lbs. / 544 kg
  • Length: 78 in. / 198 cm
  • Width: 36 in. / 92 cm
  • Height: 43 in. / 109 cm
  • Engines: Honda 20 HP OHV

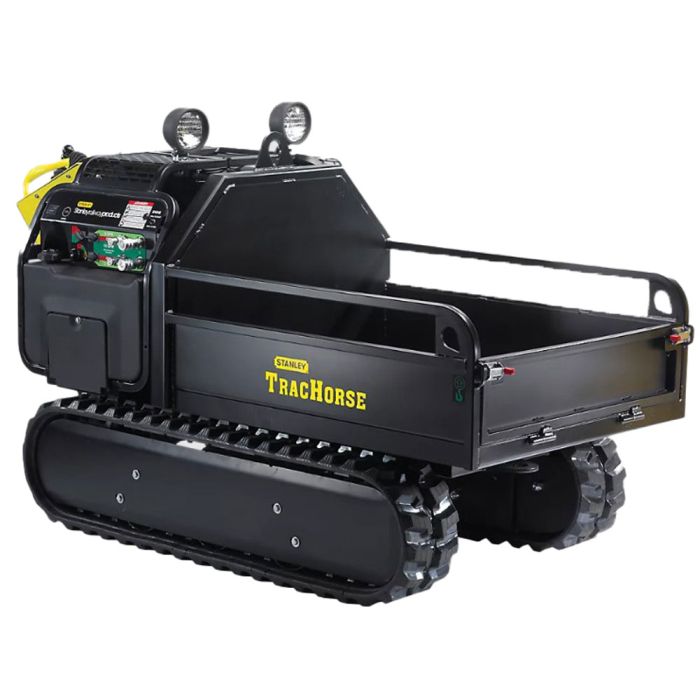

The STANLEY® TracHorse® is a rugged, all-terrain, self-propelled mobile hydraulic power pack designed to transport tools and equipment across challenging job site environments. Its intuitive controls provide easy maneuverability for a wide range of applications, enhancing job site efficiency. The auxiliary hydraulic tool circuit supports continuous-duty use and includes STANLEY®’s signature high-efficiency cooling system, ensuring reliable performance and optimal power delivery in demanding conditions.
