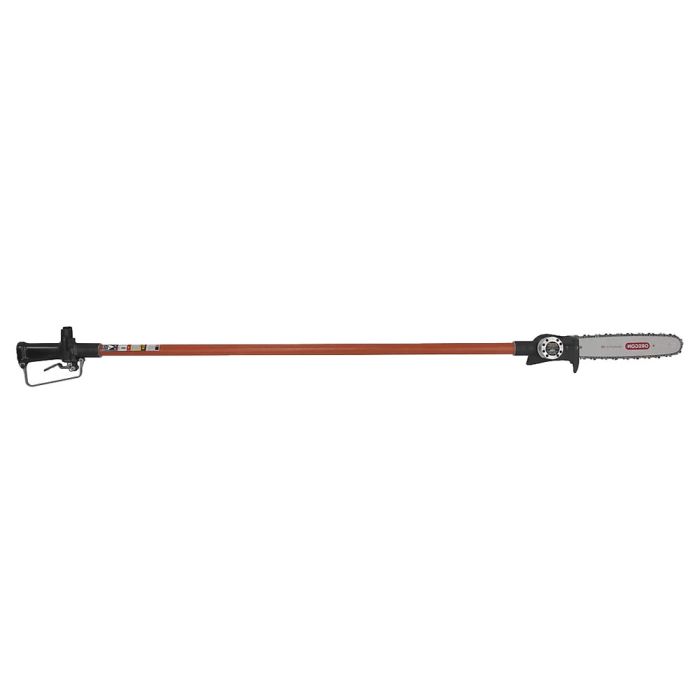

Stanley CS25812 Hydraulic Pole Chain Saw OC/CC - Short Reach 78 inch

SKU
CS25812
was $1,795.00 Sale Price $1,579.00
Eligible for Free Shipping Over $125
Stanley CS25812 Hydraulic Pole Chain Saw OC/CC - Short Reach 78 inch
More Information

CS25812 is a pole saw used for trimming and pruning large tree branches. It has an automatic chain oiler and has a 12 inch bar, 44 inch handle and an open center/closed center Dual Spool.

Application:

  • Tree Trimming

Features:

The CS25 is ideal for HTMA Type I circuits commonly found on bucket trucks where hydraulic circuit flow is often limited to 4-6 gpm /15-23 lpm. For greater versatility, the Stanley “Dual Spool” permits the user to adjust the saw to operate from either open or closed-center circuits.

Specifications:

  • Capacity: 12 inch Bar
  • Weight: 8.5 lbs (without bar)
  • Length: 75 inch (without bar)
  • Width: 6 inch
  • Hydraulic Pressure: 1500-2000 PSI
  • Input Flow Range: 4-6 GPM
  • Optimum Flow: 5 GPM
  • Porting: -8 SAE O-Ring
  • Connect Size & Type: 3/8 inch NPT Male Adapter
  • Motor: Integral STANLEY Hyrevz Gear Motor
  • Max Pressure: 2000 PSI

Note: Does not come with hose whips or couplers.

Features
  • The proximity of the pole centerline to the bar centerline minimizes operator fatigue.
  • External bar oiler makes for quick and convenient adjustments.
  • Easy to source replacement parts.
  • OC/CC dual spool - match the tool hydraulics to the circuit.
  • Extra long bucking face/brush management.
  • Rim sprocket provides smoother operation, retains chain.
  • Guide plates keeps loose chain in place.
  • Improved handle ergonomics while wearing gloves.
  • One-piece oil tube and pole assembly for increased durability.
  • Increased connection strength by 15% to provide robust durability.



Specifications
  • Cut Capacity: 13 in./33 cm
  • Weight*: 10.4 lbs./4.7 kg
  • Overall Height**: 78 in./198 cm
  • Pressure: 1000 - 2000 psi/70 - 140 bar
  • Flow Range: 4 - 6 gpm/15 - 23 lpm
  • Optimum Flow: 5 gpm/20 lpm
  • Porting: -8 SAE O-Ring
  • Connection Size and Type: 3/8 in. NPT male adapter

* Weight includes bar and chain but not quick couplers.

** Length includes bar and chain but not quick couplers.

Stanley Tools CS25812 Hydraulic Pole Chain Saw OC/CC - Short Reach 75 inch

The STANLEY® CS25 pole chain saw is lightweight and designed for easy handling in tight spots, making it ideal for right-of-way crews, utilities, parks departments, and groundskeepers. It features fiberglass poles for added maneuverability and automatic chain oiling for long-lasting, reliable performance. Perfect for HTMA Type I circuits typically found on bucket trucks with a hydraulic flow of 4-6 gpm/15-23 lpm, the CS25 also includes the STANLEY® "Dual Spool" feature, allowing users to adjust for open or closed-center circuits for enhanced versatility. Additionally, it has a low kickback, .325-pitch saw chain for added safety, and the flow rating can be easily adjusted by replacing the gear chamber and two gears.
