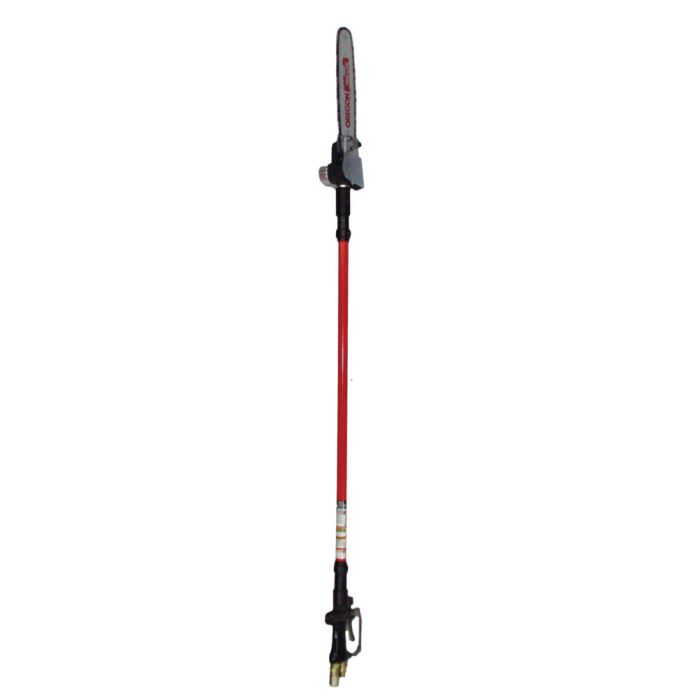

Stanley CS28812 Hydraulic Pole Chain Saw OC/CC - Short Reach 75 inch

Name: Stanley CS28812 Hydraulic Pole Chain Saw OC/CC - Short Reach 75 inch
Brand: Stanley
SKU: CS28812
Price: 1579.00 USD
Availability: InStock

SKU

CS28812

was $1,795.00 Sale Price $1,579.00

Stanley CS28812 Hydraulic Pole Chain Saw OC/CC - Short Reach 75 inch

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specs

More Information
	Application Tree rimming Features The CS28 is designed for HTMA Type II circuits and has an optimum flow of 8 gpm/30 lpm. For greater versatility, the Stanley “Dual Spool” permits the user to adjust the saw to operate from either open- or closed-center circuits. Uses a low kickback 0.325-pitch saw chain for added safety. The flow rating is easily changed by replacing the gear chamber and two gears. Specifications Capacity: 12-inch bar Weight: 8.5 lbs. (without bar and chain) Length: 75 inch (with bar) Width: 6 inch Hydraulic Pressure: 1000-2000 PSI Input Flow Range: 7-9 GPM Optimum Flow: 8 GPM Porting: -8 SAE O-Ring Connect Size & Type: 3/8 inch NPT Male Adapter Motor: Integral STANLEY Hyrevz Gear Motor Max Pressure: 2000 PSI NOTE: Does not come with hose whips or couplers. Features The proximity of the pole centerline to the bar centerline minimizes operator fatigue. External bar oiler makes for quick and convenient adjustments. Easy to source replacement parts. OC/CC dual spool - match the tool hydraulics to the circuit. Extra long bucking face/brush management. Rim sprocket provides smoother operation and retains the chain. Guide plates keep loose chain in place. Improved handle ergonomics while wearing gloves. One-piece oil tube and pole assembly for increased durability. Increased connection strength by 15% to provide robust durability. Specifications Model: CS28, short reach Cut Capacity: 13 in. / 33 cm Weight: 10.4 lbs. / 4.7 kg Overall Length: 78 in. / 198 cm Pressure: 1000-2000 psi / 70-140 bar Flow Range: 7-9 gpm / 26-34 lpm Optimum Flow: 8 gpm / 30 lpm Porting: -8 SAE Connect Size/Type: 3/8 NPT male adapter

Information

The CS28812 pole chain saws are ideal for use by right-of-way crews, utilities, parks departments, and groundskeepers. Lightweight, they feature 44” fiberglass poles for convenient handling in tight spots and automatic chain oiling for long, reliable service.

The CS25 and CS28 pole chainsaws are perfect for right-of-way crews, utilities, parks departments, and groundskeepers, as they are lightweight and have fiberglass poles that make them easy to handle in tight spots. These saws also come with automatic chain oiling, which guarantees long-lasting and reliable service.

The CS28 is designed for HTMA Type II circuits and has an optimal flow rate of 8 gpm / 30 lpm, while the CS25 is ideal for HTMA Type I circuits commonly found on bucket trucks, where hydraulic circuit flow is often limited to 4-6 gpm / 15-23 lpm.

The STANLEY® "Dual Spool" feature enables users to adjust the saw to operate from either open- or closed-center circuits, making them more versatile.

The CS25/CS28 models also have a low kickback. 325-pitch saw chain for added safety, and the flow rating can be easily changed by replacing the gear chamber and two gears.
