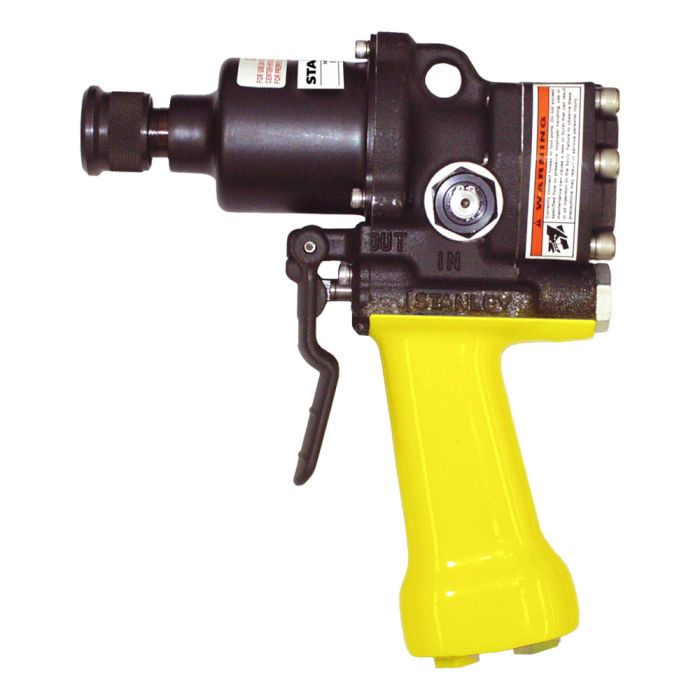

Stanley ID07815 Hydraulic Impact Drill 7/16 inch QC OC/CC with Trigger Guard

The ID07 is a high torque impact wrench used for tightening and loosening nuts and driving lag bolts. Delivers impact torque of up to 500 ft. lbs. / 675 Nm.

Application:

• Driving Lag Bolts
• Loosening Nuts
• Drilling through Treated Poles

Features:

The ID07 can drive wood augers into the hardest salt-cured or creosote treated poles. Delivering impact torque of up to 500 ft. lbs. The ID07 has the work-site proven swing-hammer mechanism that will deliver high performance and long-term service. The integral Stanley Hyrevz gear motor is manufactured to exacting standards to deliver maximum efficiency. The built-in reverse-check valve prevents operating the wrench when reverse- plumbed to the hydraulic system. Preventing reverse operation ensures a long operating life for the hydraulic seals. Setting the tool for open- or closed-center operation is as simple as opening or closing a valve.

Specifications:

• Chuck Type: 7/16 in. Quick Change
• Weight: 7 lbs
• Length: 9 in.
• Width: 5 in.
• Hydraulic Pressure: 750-2000 PSI
• Torque: 500 ft./lbs
• Input Flow Range: 4-12 GPM
• Optimum Flow: 8 GPM
• Porting: -8 SAE O-Ring
• Connect Size & Type: 3/8 in. NPT Pipe Fitting
• Motor: Integral STANLEY Hyrevz Gear Motor
• Max Pressure: 2000 PSI
• Trigger Guard: Yes

Note: Does not include hose whips or couplers
