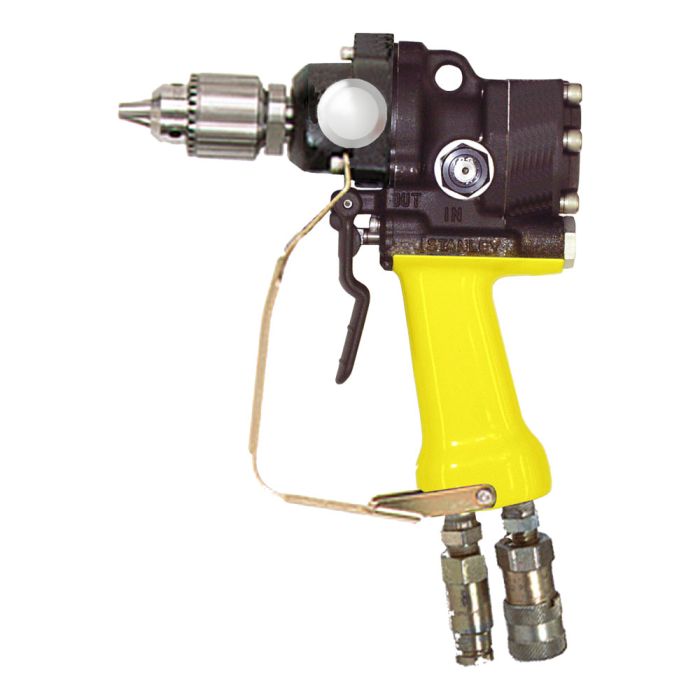

Stanley DL0755201 Hydraulic Drill OC/CC 1/2 Inch - CE Certified

Hydraulic drill with a 1/2 in. chuck, Dual Spool and is certified for sale in the EU.

Application:

• Drilling into Wood, Metal and Masonry

Features:

Instant reverse for high reliability and efficiency in all types of drilling applications. Dual-position Assist Handle on some models provides increased control and performance on tough drilling jobs. The new over-sized reversing spool is protected by heavy-duty wiper seals. These wiper seals clean away dirt as the spool is moved.

Specifications:

• Chuck Type: 1/2 in.
• Weight: 8 lbs
• Length: 9 in.
• Width: 4 in.
• Hydraulic Pressure: 1000-2000 PSI
• Torque:
  • 4 Ft/Lbs (.5 Nm) @ 500 PSI (35 BAR)
  • 9 Ft/Lbs (1.2 Nm) @ 1000 PSI (70 BAR)
  • 14 Ft/Lbs (1.9 Nm) @ 1500 PSI (105 BAR)
  • 19 Ft/Lbs (2.6 Nm) @ 2000 PSI (140 BAR)
• Input Flow Range: 4-12 GPM
• RPM:
  • 350 RPM @ 3 GPM (11.3 LPM)
  • 475 RPM @ 4 GPM (15 LPM)
  • 750 RPM @ 6 GPM (23 LPM)
  • 1000 RPM @ 8 GPM (30 LPM)
  • 1250 RPM @ 10 GPM (38 LPM)
• Optimum Flow: 8 GPM
• Porting: 8 SAE O-Ring
• Connect Size & Type: 3/8 in. NPT Male Adapter
• Motor: Integral STANLEY Hyrevz Gear Motor
• Max Pressure: 2000 PSI
• CE Certified
