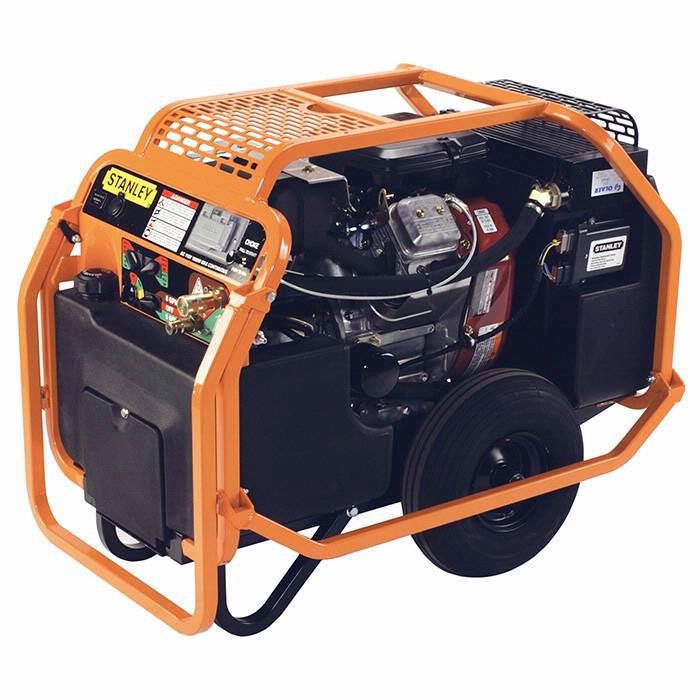

Stanley GT18B02 GT Hydraulic Power Unit - 5 or 8 gpm Output Capacity REFERENCE ONLY

The GT18B02 has been replaced to Model Number HP8BD

Application:

• Designed to provide power for underwater hydraulic tools requiring a single 5 gpm up to 8 gpm

Features:

• All electric control system with rotary switches
• All components are assembled for easy routine servicing
• Upper frame can be removed for more serious servicing
• Quartz hour meter in the control panel records engine run time
• The hydraulic pump is mounted directly to the engine eliminating any misalignment and ensuring long life of the drive coupling
• In-tank hydraulic filter continuously cleans the hydraulic fluid and assures that refill fluid passes through the filter for a clean refill
• 35-Ah sealed, non-spillable, no-maintenance battery is located inside a covered compartment
• Pressure lubrication system with a pressure sensing switch that will shut down the engine if engine oil level is too low
• Some models are available with 110 VAC, 60 Hz electric power provided by a Briggs and Stratton PowerLink inverter system
• System will deliver 1000 Watts, continuous and 1500 Watts intermittent power through GFCI (Ground Fault Circuit Interrupter) receptacles

Specifications:

• Output Capacity: 5 or 8 GPM (20 or 30 LPM)
• Pressure: 2000 PSI (140 bar)
• Circuit Type: Open Center
• Hydraulic Reservoir Capacity: 3 gallons (11 liters)
• Fuel Tank Capacity: 7 gallons (26.5 liters)
• Weight (Wet): 330 lbs (150 kg)
• Dimensions: 35 in. L x 21.5 in. W x 29 in. H (89 cm L x 54.6 cm W x 73.7 cm H)
• Engines: Briggs and Stratton 18 Horsepower Vanguard
